Product Core Brief
- Model: UFC762AE101
- Full OEM Part Code: 3BHE006412R0101 (CVMI combined I/O board)
- Brand: ABB
- Series: UFC762 AC 800PEC power electronics dedicated I/O family
- Core Function: Provide integrated mixed analog/digital fast I/O and fieldbus expansion for AC 800PEC controllers (UFC760BE42) inside UNITROL 6000 generator excitation and ACS6000 medium voltage drive subracks; execute local fast PID interlock logic, condition PT/CT sensing signals, and expand fieldbus communication ports.
- Product Type: Subrack-mount hot-swappable combined fast I/O extension PCB (power electronics dedicated, incompatible with standard AC800M S800 racks)
- Key Specs: 2 configurable AI + 2 isolated AO + 4DI + 4 mixed relay/transistor DO | Dual fieldbus expansion slots | Fiber optic high-speed control bus interface | Full G3 conformal coated PCB ⚠️ EOL — limited surplus stock remaining
Product Introduction

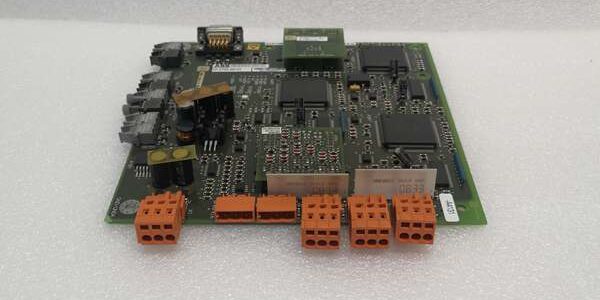

The ABB 3BHE006412R0101 is a dedicated mixed-signal I/O extension board exclusively paired with UFC760BE42 AC 800PEC power CPUs for generator excitation and high-power variable frequency drive systems. It delivers microsecond-level fast I/O sampling for voltage/current sensing and valve/drive actuation, reducing fiber bus load on the main controller.This unit differs completely from System800xA S800 I/O modules: it is designed for power electronics high-speed closed-loop control instead of general plant process monitoring. It integrates local DPL drive programming logic to handle pump/conveyor sequencing without continuous main CPU polling. OEM field logging records a 56,000 hour MTBF under steady 50 °C drive/excitation cabinet runtime, optimized for vibration-heavy power plant environments.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Compatible Host Controller & Subrack | UFC760BE42 (3BHE004573R0042) AC800PEC CPU; UNITROL6000 excitation subracks, ACS6000 MV drive cabinets; incompatible with AC800M UFC760BE43/1142 and S800 I/O racks |
| Full OEM Part Number | 3BHE006412R0101 (short designation CVMI) |
| Operating Supply | 24 VDC subrack backplane feed; 380 mA typical steady-state draw |
| Analog Input Channels (2) | Software configurable 0–10 V / 4–20 mA; 12-bit resolution for PT/CT generator sensing |
| Analog Output Channels (2) | Isolated 4–20 mA proportional drive output for I/P converters and excitation trim valves; max 750 Ω loop load |
| Digital Inputs (4) | Sinking 24 VDC dry contact inputs for limit switch, breaker auxiliary status |
| Digital Outputs (4) | 2 × Form-C relay (2 A @ 250 VAC / 30 VDC); 2 × open-collector transistor (0.5 A @ 24 VDC) |
| Expansion Communication Slots | 2 independent slots for PROFIBUS DP / Modbus RTU fieldbus adapter cards |
| High-Speed Control Bus | Isolated fiber optic Tx/Rx deterministic drive bus; 12 Mbps cycle speed, <1 μs jitter |
| PCB Environmental Protection | Full G3 conformal coating for coastal, corrosive power cabinet atmospheres |
| Hot Swap Compliance | AC 800PEC certified hot-swap; fiber fast control bus maintains synchronization during card exchange |
| Onboard Diagnostics | Per-channel open loop / short circuit fault detection, fiber link loss alarm, backplane undervoltage monitoring |
| Mechanical Form Factor | Standard dedicated power electronics subrack single-width PCB |
| Mechanical Dimensions | 183 mm L × 178 mm W × 20 mm D |
| Net Unit Weight | 0.3 kg |
| Continuous Operating Ambient Temp | -10 °C to +55 °C full rated fast I/O performance; linear derate above 50 °C |
| Storage Temperature Range | -40 °C to +85 °C, 5–95 % RH non-condensing |
| Integrated Protection Circuits | Analog signal surge clamping, backplane reverse polarity lockout, relay coil transient suppression, short-circuit current limiting |
| Certifications | UL, CE, RoHS, EN61000 Class A industrial EMC filtering, generator excitation system compliance |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB UNITROL/ACS6000 OEM trace databases; inspect conformal coating for chipping, gold subrack edge connectors for oxidation, fiber transceiver windows for dust contamination, terminal block screw threads for stripping. Photograph full I/O pinout for excitation cabinet wiring reference.
- Live Functional Test: Seat the board into a populated UNITROL6000 test subrack paired with UFC760BE42 CPU, programmable 4–20 mA signal simulators, dry contact banks, and resistive AO load banks; run a continuous 24-hour cyclic excitation voltage regulation and drive sequencing test with simulated generator load transients. Log subrack supply voltage stability with a Fluke 115 digital multimeter for the full test duration.
- Electrical Parameter Test: Perform a 1000 V Megger insulation resistance test between all analog, digital and fiber circuits and PCB chassis ground; pass threshold set at >10 MΩ. Verify analog output linearity within ±0.06 mA across full 0–750 Ω load range, fiber bus maintains stable deterministic cycle timing.
- Firmware & Expansion Slot Verification: Read and record factory CVMI I/O firmware revision via ABB UNITROL Service Tool; document default AI/AO signal range and PROFIBUS baud rate register settings for generator site commissioning reference.
- Final QC & Packaging: Wipe gold edge connectors and fiber optical windows to remove oxidation and dust; seal the PCB inside anti-static foam sleeve, affix a dated QC Pass label listing all I/O continuity, insulation, fiber communication and local PID logic test metrics before rigid shock-resistant carton packing.
Replacement Pitfall Guide
❗ ❗ Partial Subrack Slot Insertion Risk: Uneven PCB seating creates high-resistance edge contact points that distort generator PT/CT analog sensing signals and cause excitation voltage hunting during grid load transients. Push the board fully into the dedicated power electronics slot and engage front locking latches flush against the subrack faceplate.❗ Fiber / Analog Cable Shield Ground Misconfiguration Risk: Unshielded twisted-pair analog sensing wiring routed parallel to high-current generator excitation cabling injects severe EMI noise that corrupts fast control loop data. Use factory shielded analog assemblies and cleaned fiber patch cords; terminate cable shield ground at only the main excitation cabinet terminal block end.❗ ❗ Uncontrolled ESD Damage Risk: Dry generator excitation room air builds static charge rapidly. Touch a grounded anti-static mat for three full seconds before handling gold edge connectors and fiber transceiver ports; ungrounded contact destroys low-tolerance analog fast signal conditioning ASICs.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- S800 standard AC800M analog/discrete I/O module → : Incompatible — missing fiber high-speed power control bus, cannot interface with AC800PEC UFC760BE42 CPU
- UFC760BE42 (3BHE004573R0042) AC800PEC power CPU → : Direct — factory fiber and backplane pinout natively matches power subrack bus routing for fast I/O data exchange
- UNITROL 6000 generator excitation dedicated subrack backplane → : Direct — dedicated slot mechanical form factor and power distribution matching
- ACS6000 medium voltage drive control cabinet subrack → : Direct — fiber bus natively interfaces with drive power cell control hardware
- VM310 24 V cabinet auxiliary power supply → : Direct — regulated 24 V output feeds subrack auxiliary power distribution for all board I/O circuits
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → : Needs Adaptation — wire module analog loop fault and fiber link loss dry contacts to PLC digital inputs, map generator excitation process registers via Modbus RTU gateway bridging the AC800PEC fiber bus
