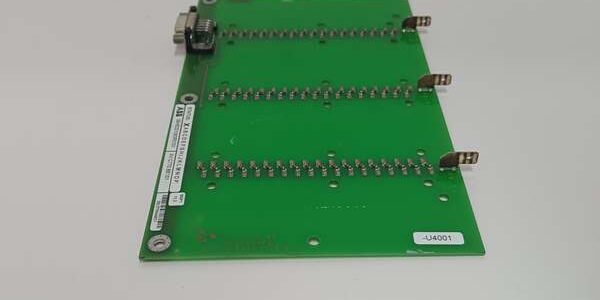

Product Core Brief
- Model: XVC770BE101
- Full OEM Part Code: 3BHE021083R0101
- Brand: ABB
- Series: XVC770 high-speed communication & power interface board family for AC 800PEC power electronics systems
- Core Function: Serve as a high-speed data buffer, cross-bus interface and fieldbus expansion carrier for UFC760BE42 main CPU in UNITROL generator excitation and ACS6000 medium voltage drive subracks; coordinate data transmission between fiber fast control bus, Ethernet plant backbone and expandable PROFIBUS/Modbus fieldbus interfaces, resolve speed mismatch between CPU and peripheral I/O boards like UFC762AE101.
- Product Type: Single-width hot-swappable subrack communication expansion interface PCB (power electronics dedicated, incompatible with standard AC800M System800xA S800 racks)
- Key Specs: Dual independent Ethernet ports | 12 fieldbus expansion slots | Fiber optic high-speed control bus bridge | Integrated data buffering logic | Full G3 conformal coated PCB ⚠️ EOL — limited surplus stock remaining
Product Introduction
The ABB 3BHE021083R0101 is a dedicated communication interface expansion board exclusively matched with UFC760BE42 AC800PEC power CPUs for UNITROL 6000 excitation cabinets and ACS6000 MV drive systems. It acts as a data transfer coordinator, buffering high-speed real-time control data between the main controller, CVMI mixed I/O boards (UFC762AE101) and upper plant DCS backbone, eliminating bus congestion caused by frequent high-frequency excitation/drive loop sampling.This unit cannot be used for general System800xA process control racks; it features dedicated fiber bus transceivers optimized for microsecond-level power conversion synchronization, a feature absent from AC800M CPU communication boards. OEM field logging records a 56,000 hour MTBF under steady 50 °C vibration-heavy power cabinet runtime.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Compatible Host Hardware | UFC760BE42 (3BHE004573R0042) AC800PEC power CPU; UNITROL6000 excitation subracks, ACS6000 medium voltage drive cabinets; incompatible with AC800M UFC760BE43/1142 and S800 I/O racks |
| Full OEM Part Number | 3BHE021083R0101 (short designation HVD power interface board) |
| Subrack Operating Supply | 24 VDC backplane feed; 390 mA typical steady-state draw |
| Communication Interfaces | Dual 10/100M Ethernet TCP/IP plant backbone; isolated fiber optic fast control bus bridge; 12 expandable slots for PROFIBUS DP / Modbus RTU adapters |
| Data Processing Feature | Onboard dedicated RAM buffer to coordinate speed difference between CPU and peripheral I/O modules |
| PCB Environmental Protection | Full G3 conformal coating, anti-corrosion for coastal, chemical and thermal power plant cabinet atmospheres |
| Hot Swap Compliance | AC 800PEC certified hot-swap; fiber fast control bus maintains generator/drive synchronization during card replacement |
| Onboard Diagnostics | Ethernet link loss alarm, fiber link break detection, fieldbus module missing fault, backplane undervoltage monitoring |
| Mechanical Form Factor | Standard single-width dedicated power electronics subrack PCB, double-side terminal block layout |
| Mechanical Dimensions | 320 mm L × 180 mm W × 22 mm D |
| Net Unit Weight | 0.42 kg |
| Continuous Operating Ambient Temp | -10 °C to +55 °C full rated communication performance; linear derate above 50 °C |
| Storage Temperature Range | -40 °C to +85 °C, 5–95 % RH non-condensing |
| Integrated Protection Circuits | Ethernet/fiber port ESD surge clamping, backplane reverse polarity lockout, fieldbus short-circuit current limiting |
| Certifications | UL, CE, RoHS, EN61000 Class A industrial EMC filtering for power generation and heavy drive facilities |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial numbers against ABB UNITROL/ACS6000 OEM trace databases; inspect conformal coating for chipping, gold subrack edge connectors for oxidation, fiber transceiver windows for dust contamination, terminal block screw threads for stripping. Photograph full bus pinout for excitation cabinet wiring reference.
- Live Functional Test: Seat the board into a populated UNITROL6000 test subrack paired with UFC760BE42 CPU and UFC762AE101 CVMI I/O boards; run a continuous 24-hour cyclic generator voltage regulation test with simulated grid load transients, monitor fiber/Ethernet data throughput stability with a Fluke 115 digital multimeter.
- Electrical Parameter Test: Perform a 1000 V Megger insulation resistance test between all fiber, Ethernet and fieldbus circuits and PCB chassis ground; pass threshold set at >10 MΩ. Verify dual Ethernet automatic failover completes within 10 ms when primary network cable is disconnected.
- Firmware & Expansion Slot Verification: Read and record factory XVC770 communication firmware revision via ABB UNITROL Service Tool; document default Ethernet IP subnet and PROFIBUS baud rate register settings for generator site commissioning reference.
- Final QC & Packaging: Wipe gold edge connectors and fiber optical windows to remove oxidation and dust; seal the PCB inside anti-static foam sleeve, affix a dated QC Pass label listing all communication bus, self-test and insulation test metrics before rigid shock-resistant carton packing.
Replacement Pitfall Guide
❗ ❗ Partial Subrack Slot Insertion Risk: Uneven PCB seating creates high-resistance edge contact points that throttle fiber bus data throughput and trigger intermittent communication loss during generator startup ramp cycles. Push the board fully into the dedicated power electronics slot and engage front locking latches flush against the subrack faceplate.❗ Fiber / Ethernet Cable Shield Ground Misconfiguration Risk: Unshielded CAT5e trunk wiring routed parallel to high-current generator excitation cabling injects severe EMI noise that corrupts real-time control data. Use factory shielded Ethernet assemblies and cleaned fiber patch cords; terminate cable shield ground at only the main excitation cabinet terminal block end.❗ ❗ Uncontrolled ESD Damage Risk: Dry generator excitation room air builds static charge rapidly. Touch a grounded anti-static mat for three full seconds before handling gold edge connectors and fiber transceiver ports; ungrounded contact destroys low-tolerance fiber communication ASICs.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- AC800M System800xA communication expansion board → : Incompatible — missing fiber fast control bus and power electronics dedicated data buffering architecture
- UFC760BE42 (3BHE004573R0042) AC800PEC power CPU → : Direct — factory fiber and backplane pinout natively matches power subrack bus routing for high-speed data exchange
- UFC762AE101 CVMI mixed analog/discrete fast I/O board → : Direct — buffers all CVMI fast I/O sampling data before forwarding to main CPU
- UNITROL 6000 generator excitation dedicated subrack backplane → : Direct — dedicated slot mechanical form factor and power distribution matching
- ACS6000 medium voltage drive control cabinet subrack → : Direct — fiber bus natively interfaces with drive power cell control hardware
- VM310 24 V cabinet auxiliary power supply → : Direct — regulated 24 V output feeds subrack auxiliary power distribution for all board communication circuits
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → : Needs Adaptation — wire module Ethernet/fiber link loss dry contacts to PLC digital inputs, map generator excitation process registers via Modbus RTU gateway bridging the AC800PEC fiber bus
