Component Snapshot At-a-Glance

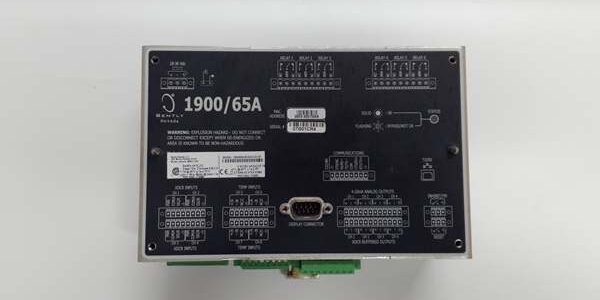

• Model: 1900/65A-00-00-01-00-00
• Suffix Breakdown: Power=00(18–36VDC), Display=00(No front display), Mount=01(TS35 DIN rail), Approvals=00(No hazardous certs), Comm=00(No Modbus/Ethernet)
• Alt. P/N: 1900/65A-00-01-01-00-00 (with local display; incompatible field wiring without keypad config)
• Product Series: Bently Nevada 1900 Compact Standalone Machinery Monitor Platform
• Hardware Type: DIN rail mount dual-channel proximity vibration + Keyphasor speed monitor, no onboard HMI, no built-in communication ports
• Key Feature: Two independent proximity channels, dedicated Keyphasor speed input, six SPDT alarm relays, four isolated 4–20mA analog outputs, TS35 DIN rail snap mount
• Primary Field Use: Local vibration/thrust/RPM monitoring for small pumps, blowers, auxiliary compressors; no remote DCS historian comm requirement, used for standalone local alarm interlock only.

Hard-Numbers: Technical Specifications

• Protocol Support: Analog 4–20mA hardwired to DCS/PLC; zero onboard serial/Ethernet communication ports; accepts -2 to -18VDC linear gap signal from 3300 XL Proximitors
• Port Count: 2 proximity probe input terminals; 1 Keyphasor speed input terminal bank; six SPDT relay terminal block; four isolated 4–20mA recorder outputs; buffered signal test jacks; rear 18–36VDC DC power terminals; front discrete OK/Alert/Danger LED indicators only (no numerical display)
• Baud/Data Rate: N/A digital comm; vibration sampling 1kHz per channel; fixed 100ms analog output refresh cycle
• Operating Temperature: -20°C to +70°C standard unit; conformal coated aftermarket variant rated -40°C to +85°C non-condensing cabinet duty
• Isolation Rating: 1000VAC galvanic isolation between transducer inputs, 4–20mA outputs, relay contacts and internal DSP logic core
• Power Draw: Max 12W continuous; supply range 18–36VDC wide DC control power
• Measurement Ranges: Displacement 0–2000 μm pk-pk; vibration velocity/acceleration software configurable; usable frequency response 10Hz–10kHz
• Relay Contact Rating: SPDT 5A @ 250VAC resistive load; epoxy-sealed contacts for light oil mist cabinet environments
• Physical Mount: TS35 vertical DIN rail snap-in bracket; dimensions 196.9×149.4×74.4mm; IP20 front panel; weight ~0.4kg
• Certifications: CE EMC, UL 61010 general industrial; no ATEX/Class I Div 2 hazardous area approvals per suffix code 00

The Real-World Problem It Solves

Full 3500 rack TSI systems waste rack space and spare part budget for small auxiliary pumps/blowers that only require local hardwired alarm interlocks with no remote historian data transfer.Variants with built-in displays or Modbus add unnecessary cost for simple standalone alarm schemes; unused communication ports introduce extra EMI leakage paths from cabinet VFD drives.Panel-mount only 1900/65A versions require custom cutout fabrication; DIN rail variant slides straight onto standard control cabinet rails for fast retrofit on existing pump MCCs.Unisolated third-party vibration transmitters leak drive noise onto probe wiring, triggering constant false Alert/Danger relay trips during blower startup load swings.Where you’ll typically find it:

• Refinery auxiliary centrifugal pump local control panels monitoring journal radial vibration and shaft RPM
• Combined-cycle power plant boiler induced draft fan and feedwater blower non-hazardous MCC cabinets
• Onshore utility water pump skids without Zone 2 classification, standalone hardwired alarm interlock onlyDIN rail form factor eliminates custom panel machining, no unused communication hardware cuts EMI noise sources, dual-channel + Keyphasor consolidates vibration and speed monitoring in one compact unit without full rack infrastructure.

Hardware Architecture & Under-the-Hood Logic

This standalone monitor uses a dedicated DSP signal processing core to linearize Proximitor gap voltage signals locally; dual-stage Alert/Danger threshold relay comparison runs fully independent of any external communication hardware (none fitted on this suffix variant). Configuration only via laptop USB software, no local keypad display.

1. 18–36VDC wide-range cabinet DC supply feeds multi-stage EMI filtered isolated PSU; split power rails separate DSP measurement core, transducer input frontends, and relay drive circuits to block variable frequency drive harmonic noise.
2. Two fully independent proximity input frontends accept linear gap voltage from any matched-length 3300 XL Proximitor preamp; each channel fitted with bidirectional TVS surge suppression for long field coaxial cable lightning transients.
3. Dedicated Keyphasor pulse shaping circuit converts magnetic pickup or proximity Keyphasor pulses to digital RPM data; DSP pairs speed and vibration waveforms to calculate synchronous imbalance signatures.
4. Software-configurable dual-threshold alarm logic latches fault states to six SPDT relays; relay wiring routes directly to local ESD interlock and cabinet horn alarm circuits (no Modbus remote alarm reporting).
5. Front panel LED-only status: steady green OK = probe circuit healthy; yellow Alert = pre-warning threshold crossed; red Danger = shutdown threshold or probe open/short fault; no numerical readout for channel gap/vibration values.
6. Buffered front test jacks allow portable vibration analyzer waveform capture without disconnecting live transducer field wiring during equipment running.

Field Service Pitfalls: What Rookies Get Wrong

Dual-End Grounding Probe Coaxial Shield Cables

New techs ground transducer coaxial shield braid at both 1900/65A terminal block and pump junction boxes. Rotating machinery hull potential differences create circulating ground loop current, distorting gap voltage and triggering random false high vibration Danger relay trips during compressor startup transients.Field Rule: Terminate all proximity probe coaxial shield braid only at the monitor cabinet chassis ground stud; fully tape and isolate shield conductors at all machinery field junction boxes, no secondary ground points.

Substituting Display Equipped 1900/65A-00-01-01-00-00 Unit In Place Of This Suffix Model

Field crews swap spare display-equipped monitors onto pump skids wired for no-display DIN variant. Missing matching configuration file forces full software re-download; local keypad wiring pins are unused and create loose open terminal fault LED triggers.Quick Fix: Strict full part number matching for standalone no-display/no-comm DIN rail pump skids: deploy only 1900/65A-00-00-01-00-00. Reserve display suffix variants for sites requiring local on-unit readout without laptop software.

Skipping Full Software Channel Configuration After Unit Swap

Techs hot-swap a spare monitor and run factory default measurement ranges. Without site-specific vibration/displacement scaling and Alert/Danger setpoints, relays either nuisance trip constantly or fail to activate during genuine bearing degradation events. No local display means no quick visual check of live channel values without laptop connection.Field Rule: Connect laptop configuration software post replacement, upload validated site-specific channel scaling, RPM pulse count, and alarm threshold parameters; inject calibrated gap voltage signal to each proximity channel and verify 4–20mA DCS readback matches machinery design limits before returning rotating equipment to automatic run mode.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
