Component Snapshot At-a-Glance

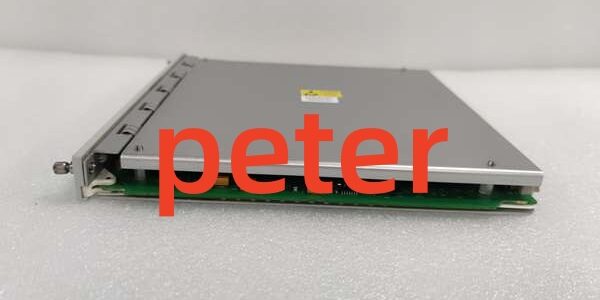

• Model: 3500/22-01-01-01 (TDI Transient Data Interface, assembly PN 138607-01, also marked 3500/22M)
• Alt. P/N: 3500/20 RIM Rack Interface Module (no transient capture, limited Ethernet throughput, non-interchangeable firmware)
• Product Series: Bently Nevada 3500 Machinery Protection TSI Rack System
• Hardware Type: Mandatory Slot 1 single-slot rack master interface / transient data acquisition module
• Key Feature: Rack master backplane controller, high-speed transient waveform storage, dual Ethernet + front USB, full System 1 compatibility, hot-swap capable
• Primary Field Use: Acts as rack brain; poll all vibration/overspeed monitor cards, store fault transient waveform snapshots, stream real-time machinery health data to System 1 predictive maintenance software and plant DCS.

Hard-Numbers: Technical Specifications

• Protocol Support: Proprietary 3500 rack backplane bus, EGD Ethernet, TCP/IP, USB-B local service port, SNTP time synchronization
• Port Count: Front 10/100BASE-TX RJ45 Ethernet; front USB-B service port; rear rack backplane edge connector; front OK/TX/RX multi-state LED bank; front security key lock switch
• Baud/Data Rate: Backplane full rack scan ≤100ms; transient sampling 128kHz waveform capture; Ethernet full-duplex 100Mbps fixed; local USB direct configuration upload/download
• Operating Temperature: -30°C to +65°C standard unit; coated factory variant rated -40°C to +85°C non-condensing offshore cabinet duty
• Isolation Rating: 1500VAC galvanic isolation separating Ethernet, USB and rack backplane core logic
• Power Draw: Max 10.5W continuous; powered from redundant 3500 rack 24VDC power supply slots
• Transient Storage: Onboard flash buffer stores post-fault vibration waveform snapshots for bearing, overspeed, imbalance diagnostic analysis
• Rack Mandate: Every 3500 rack requires TDI/RIM in Slot 1; all monitor cards rely on this module for configuration and data aggregation
• Physical Mount: Single slot standard 3500 rack slide-in module; weight ~1kg; IP20 cabinet rating
• Certifications: API 670, CE EMC, UL Class I Div 2, ATEX Zone 2 hazardous machinery cabinet approval

The Real-World Problem It Solves

Legacy 3500/20 RIM modules lack high-speed transient waveform capture. After turbine/compressor fault trips, technicians cannot retrieve high-resolution vibration snapshots to pinpoint root bearing/rotor damage.Separate external transient recorders add extra DIN rack hardware and vibration-loose wiring splices; unisolated third-party data loggers inject VFD noise onto the 3500 backplane, triggering intermittent channel probe-fault alarms mid-unit run.Single-function RIM hardware only supports slow serial data transfer; large rack tag loads create multi-second trending lag that masks fast transient rotor vibration spikes during startup transients.Where you’ll typically find it:

• Combined-cycle gas turbine 3500 TSI rack Slot1, feeds transient fault data to System 1 vibration diagnostic workstation
• Refinery high-pressure centrifugal compressor machinery protection cabinets, mandatory master rack interface for SIL3 overspeed/vibration monitoring
• Offshore FPSO Zone 2 turbine control rooms using conformal coated 138607-01 hardware to resist salt fog and hydrocarbon PCB condensationIntegrated rack master control + high-speed transient capture eliminates external data logging hardware, dual isolated Ethernet delivers low-latency real-time trending, and hot-swap design cuts rack outage time during firmware/configuration reloads.

Hardware Architecture & Under-the-Hood Logic

This master TDI module runs dedicated real-time CPU to govern all rack backplane communication, transient waveform sampling and Ethernet data framing. Critical machinery protection relay trip logic on monitor cards operates fully independent if the TDI fails or is removed. Slides hot into Slot 1 without full rack de-energization.

1. Rack redundant 24VDC supply feeds multi-stage EMI filtered isolated PSU; split power rails separate CPU core, Ethernet transceiver, USB service port and backplane handshake circuits to block variable frequency drive harmonic electrical noise.
2. Front RJ45 Ethernet port connects to plant control LAN for continuous tag broadcast to System 1 and DCS historians; independent link heartbeat monitoring flags cable/switch loss via front LED without halting local rack protection.
3. Front USB-B port enables offline rack configuration upload, firmware flashing and transient waveform data export to field laptops without network access. Security key switch locks out unauthorized rack config edits to prevent accidental alarm setpoint changes.
4. Onboard high-speed sampling DSP captures raw vibration pulse waveforms from all rack monitor channels during Alert/Danger fault threshold crossings; timestamped waveform data stores to non-volatile flash memory for post-trip failure analysis.
5. Continuous backplane master polling synchronizes all slot monitor card measurements to a unified rack time base; SNTP sync aligns all fault event timestamps with plant-wide DCS time.
6. Conformal coated PCB variants seal CPU, Ethernet isolation transformers and backplane signal traces against unconditioned cabinet temperature cycling, dust and offshore salt fog exposure.

Field Service Pitfalls: What Rookies Get Wrong

Dual-End Grounding Ethernet Cable Shield Braids

New techs ground Ethernet cable shield braid at both TDI RJ45 port and central plant network switch marshalling racks. Power station ground grid potential differences create circulating ground loop current, distorting EGD frame timing and triggering intermittent full rack tag dropout alarms during boiler fan VFD startup transients.Field Rule: Terminate all TDI Ethernet cable shield braid only at the 3500 rack chassis ground stud; fully tape and isolate shield conductors at remote switch cabinet ends.

Substituting 3500/20 RIM Module In Place Of 138607-01 TDI

Field crews swap spare 3500/20 RIM rack interface cards into Slot1 of turbine/compressor fault diagnostic racks. Missing transient waveform storage capability means zero post-trip vibration snapshot data to analyze bearing failure root causes; mismatched backplane throughput creates severe trending lag on high-channel-count racks.Quick Fix: Strict full part number matching for racks requiring fault transient diagnostics: deploy only 3500/22-01-01-00 (138607-01) TDI in Slot1. Reserve 3500/20 RIM exclusively for small auxiliary pump racks with no post-fault waveform analysis requirement.

Skipping Full Rack Configuration & Firmware Reload After TDI Hot-Swap

Techs hot-swap a spare 138607-01 TDI and retain factory blank rack settings. All monitor channel alarm thresholds, probe scaling and transient capture trigger rules revert to factory defaults; nuisance vibration trips or blind unmonitored rotor fault conditions occur during unit load swings.Field Rule: Upload validated full rack configuration and matching rack firmware to replacement TDI post swap; trigger a test Alert fault on one vibration channel to verify transient waveform capture saves to onboard memory, confirm continuous System 1 Ethernet tag readback before returning rotating equipment to automatic generation/process mode.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
