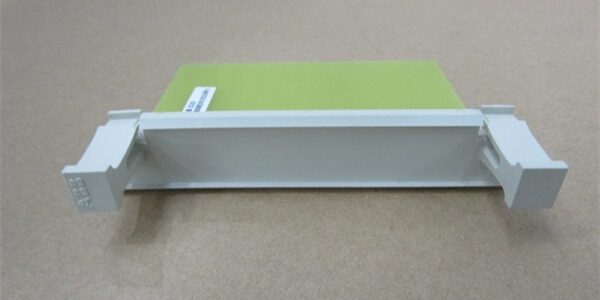

Component Snapshot At-a-Glance

• Model: RB520, full factory part number 3BSE003528R1
• Alt. P/N: No functional substitute; plastic blank covers lack backplane contact pins and impedance matching
• Product Series: ABB S100 I/O, Advant OCS, Advant Controller 450 (PM511 CPU) legacy DCS platform
• Hardware Type: Passive single-width subslot dummy PCB, rear edge contact pins matching S100 subcarrier backplane, no front wiring terminals or LED indicators
• Key Feature: Factory matched passive dummy plug with backplane contact pins, seals empty submodule slots to stabilize bus impedance, block EMI crosstalk and prevent accidental short circuits
• Primary Field Use: Fill unused sub-slots on SC510/SC520 MasterBus carrier boards, maintain full bus electrical integrity and cabinet electromagnetic shielding in Advant master racks

Hard-Numbers: Technical Specifications

• Protocol Support: No communication logic; purely passive impedance matching load for S100 subcarrier bus traces
• Port Count: Rear edge contact pins only, zero external field wiring terminals
• Baud/Data Rate: Matches native 1 Mbit/s S100 synchronous bus timing
• Operating Temperature: -25°C to +60°C cabinet operational; -40°C to +85°C storage, non-condensing 5–95% RH
• Isolation Rating: None; passive resistive trace network for bus impedance matching
• Power Draw: Near-zero wattage, negligible load on rack 24VDC backplane rail
• Mechanical Fit: Exact form factor for SC510 / SC520 submodule carrier internal slots
• EMC Function: Metalized PCB shielding blocks cross-slot analog/digital crosstalk interference
• Physical Weight: 0.028 kg, compact S100 subslot dimensions, IP20 cabinet-only mounting
• Certifications: CE, UL/cUL, IEC 61010-1 industrial control safety compliance

The Real-World Problem It Solves

Leaving subcarrier slots uncovered with only plastic filler covers leaves unterminated bus traces open. Mismatched impedance creates signal reflection noise on the MasterBus 300 segment, triggering sporadic I/O communication timeouts and analog measurement drift on adjacent DSAI RTD pulse counter modules.Open empty sub-slots break cabinet EMC shielding; high-frequency switching noise from DSDO solenoid output boards bleeds into low-level temperature acquisition channels, generating constant offset drift and false high/low process alarms.Exposed backplane pin contacts on vacant slots risk accidental short circuits from loose wire strands or maintenance tool contact, which can crash the SC520 bus coupler and cut all remote I/O scanning mid-production.Where you’ll typically find it:

• Combined cycle power plant RF522 master turbine racks fitted with SC520 slave bus coupler carrier boards with unused sub-slots
• Refinery central Advant OCS DCS main chassis with SC510 bus couplers partially populated with CI541V1 Profibus and CS513 MB300 communication cards
• Pulp mill recovery boiler master control racks with partially loaded MasterBus subcarriers for encoder pulse and valve control I/O communicationThis passive RB520 dummy plug restores factory-calibrated bus impedance on vacant sub-slots, restores full cabinet electromagnetic shielding, and eliminates exposed live backplane pin short-circuit hazards without active power consumption.

Hardware Architecture & Under-the-Hood Logic

This is a fully passive PCB with zero semiconductors, processing chips or communication circuits; its sole function is electrical bus termination and mechanical shielding for empty subcarrier slots.

1. Rear edge gold-plated pins make full contact with all S100 subcarrier bus signal and power traces on vacant slots.
2. Pre-soldered precision resistive trace network matches the characteristic impedance of the MasterBus 300 subcarrier bus to absorb signal waveform reflections.
3. Metalized PCB outer layer acts as a continuous shielding barrier to block cross-slot EMI crosstalk between high-noise digital communication modules and sensitive analog I/O hardware.
4. No power draw, no status LEDs, no fault reporting functions; only passive electrical and mechanical protection for unpopulated sub-slots.
5. Fully occupies the subslot mechanical footprint to prevent accidental contact with exposed backplane pins during cabinet maintenance work.

Field Service Pitfalls: What Rookies Get Wrong

Replacing RB520 Dummy Plug With Plastic Blank Slot Covers

Maintenance staff remove RB520 spare plugs and install cheap plastic filler panels to cover empty sub-slots. Missing matched bus impedance creates severe signal reflection noise, triggering daily sporadic I/O dropout and analog drift alarms on production shifts.

• Field Rule: Every unused subslot on SC510/SC520 carrier boards must hold an RB520 dummy module; plastic blanks cannot be used as a replacement.

Omitting RB520 On Multiple Consecutive Vacant Sub-Slots

New technicians leave multiple adjacent sub-slots unfilled without plugs. Cumulative unterminated bus segments amplify reflection noise, destabilizing MasterBus 300 scan timing and lagging safety interlock response speed.

• Quick Fix: Install one dummy module for every empty subslot on the carrier board to maintain uniform bus electrical load across all slots.

Hot-Swapping While RF522 Master Rack Remains Energized

Temporarily removing the live dummy plug creates an instant unterminated sub-bus state during swap. Severe signal reflection corrupts active I/O scan data and can trigger unplanned process unit trips.

• Field Rule: De-energize the rack SR511 power supply and wait 30 seconds for backplane rails to discharge before removing or inserting dummy modules.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
