Component Snapshot At-a-Glance
- Model: DSAI146, full factory part number 3BSE007949R1
- Alt. P/N: DSAI130D (16-channel voltage/current AI, no RTD excitation, incompatible sensor front-end)
- Product Series: ABB S100 I/O, Advant OCS, Advant MasterPiece legacy DCS platform

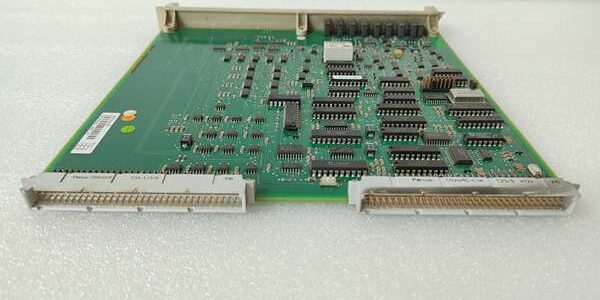

- Hardware Type: Single-slot rack mount RTD analog input PCB, rear 96-pin backplane connector, front multi-pin terminal header for 3-wire Pt100 sensors
- Key Feature: 30 active Pt100 measurement channels plus 1 dedicated precision reference channel, constant current sensor excitation for 3-wire RTD balancing
- Primary Field Use: Capture high-density boiler, turbine, furnace temperature readings from 100Ω platinum RTD sensors for closed-loop thermal control and over-temperature protection
Hard-Numbers: Technical Specifications
- Protocol Support: Proprietary S100 parallel rack backplane bus, communicates directly to Advant Master controller chassis
- Port Count: 30 measuring RTD channels + 1 internal reference compensation channel, single rack backplane edge connector
- Baud/Data Rate: Fixed 1 second full rack scan cycle for all 31 channels, single-channel fast read available on controller command
- Operating Temperature: -30°C to +65°C cabinet operational; -40°C to +85°C storage, non-condensing 5–95% RH
- Isolation Rating: 1500VAC galvanic isolation between RTD field wiring and S100 backplane logic
- Power Draw: Max 3.8W total module load, fed 24VDC from main rack backplane rail
- ADC Resolution: 12-bit plus sign bit temperature conversion
- Supported Sensor: 3-wire 100Ω Pt100 platinum RTD
- Temperature Measuring Range: -200°C to +640°C, two software selectable span limits
- Full Scale Accuracy: ±0.1°C across calibrated operating range
- Physical Weight: 0.5 kg, dimensions 324 mm × 234 mm × 22.5 mm, IP20 cabinet-only mounting
- Certifications: CE, UL/cUL, IEC 61010-1 industrial control safety standard
The Real-World Problem It Solves
Low-density 8/16-channel general analog input boards lack dedicated RTD constant current excitation circuits. Techs are forced to install external signal conditioner racks for high point-count temperature layouts, adding extra cabinet space and additional wiring failure points.Generic AI boards cannot balance 3-wire RTD lead resistance automatically; long field cable runs create consistent temperature offset drift that requires monthly manual trim adjustments.Where you’ll typically find it:
- Fossil & combined cycle power plant Advant OCS turbine control racks for bearing metal, exhaust gas and boiler tube temperature monitoring
- Refinery furnace and reactor legacy S100 DCS cabinets for process heater skin and catalyst bed RTD sensors
- Pulp mill recovery boiler control racks for flue gas, liquor tank and steam header thermal measurement pointsThis single-slot 30-channel dedicated RTD card eliminates external signal conditioning hardware, auto-compensates for 3-wire cable resistance, and consolidates dense temperature monitoring into one rack slot to free chassis space for other I/O modules.
Hardware Architecture & Under-the-Hood Logic
This module integrates dedicated RTD excitation ASIC and shared 12-bit sign ADC; no onboard standalone process CPU, all converted temperature values buffer to S100 backplane registers for Advant Master controller access.
- 24VDC rack backplane power feeds internal EMI filters, isolated constant-current excitation power rails, and front panel fault LED driver circuits.
- Each 3-wire RTD channel receives matched low-amperage constant current excitation to eliminate lead resistance measurement skew without external trim resistors.
- Dedicated reference channel continuously calibrates ADC offset and gain drift caused by cabinet temperature swings, auto-correcting all active RTD readings once per full scan cycle.
- TVS transient suppression on every sensor terminal blocks lightning and VFD surge spikes from long field cable runs to prevent front-end analog circuit burnout.
- Compensated temperature data and channel open/short fault flags transfer cyclically over the S100 backplane; controller scales raw ADC counts to engineering units for HMI trending and over-temperature trip logic.
Field Service Pitfalls: What Rookies Get Wrong
Substituting DSAI130D Voltage/Current AI Boards As RTD Replacements
Junior technicians pull DSAI130D spare stock without cross-checking full part numbers. This board lacks constant-current RTD excitation hardware, all temperature readings read full-scale zero or max value after installation.
- Field Rule: Only mount DSAI146 for Pt100 temperature rack slots; segregate general voltage/current analog input spares to separate auxiliary cabinet bins.
Running 2-Wire Pt100 Sensors Without External Compensation Resistors
Field crews wire two-wire RTDs directly to the 3-wire terminal blocks. Unbalanced lead resistance creates large permanent temperature offset errors that cannot be calibrated out via controller software.
- Quick Fix: Add matched precision balancing resistors to the unused third wire terminal for all 2-wire sensor installations.
Hot-Swapping Module With Live RTD Field Wiring Terminated
Inductive voltage transients from energized sensor cables surge back through the backplane during card extraction. This corrupts controller analog register data and can trigger unplanned boiler high-temperature safety trips.
- Field Rule: De-energize main rack 24VDC supply breaker and disconnect all field RTD terminal wiring before inserting or removing the DSAI146 module.
