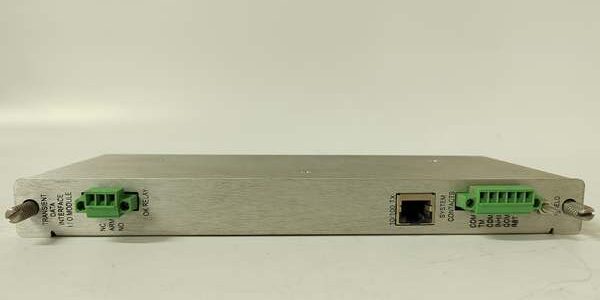

Component Snapshot At-a-Glance
- Model: 146031-01
- Alt. P/N: None standalone; paired with front 3500/22M main board
- Product Series: Bently Nevada 3500 Machinery Protection System
- Hardware Type: Rear rack-mounted Ethernet daughter I/O card for 3500/22M TDI
- Key Feature: 10/100Mbps auto-negotiate RJ45 copper Ethernet with magnetic isolation
- Primary Field Use: Provides physical copper LAN port to route steady-state and transient vibration data from 3500 rack to System 1 host software.
Hard-Numbers: Technical Specifications
- Protocol Support: TCP/IP Ethernet, native Bently rack backplane protocol
- Port Count: 1×RJ45 10/100Base-TX copper Ethernet
- Data Rate: Auto-sense 10 Mbps / 100 Mbps full/half duplex
- Operating Temperature: -30°C to +65°C operating; -40°C to +85°C storage
- Isolation Rating: 500V RMS magnetic isolation between Ethernet and rack backplane
- Power Draw: 10.5W total combined with front 3500/22M main module
- Signal Input Range: -10VDC to +10VDC buffered waveform output
- Humidity Rating: 5%–95% non-condensing
- Dimensions: 241.3mm H × 24.4mm W × 103mm D
- Weight: 0.34kg
The Real-World Problem It Solves
Base 3500/22M front board lacks built-in copper RJ45 ports. Sites without fiber infrastructure need a separate rear card to connect the rack to plant LAN without external media converters. Fiber-only rear cards (146031-02) add unnecessary hardware cost for short-distance copper runs.
Where you’ll typically find it:
- Power plant turbine control rooms with short CAT6 LAN runs to local System 1 workstations
- Refinery compressor racks within 100m of plant SCADA network switches
- Small auxiliary pump monitoring skids without fiber networking infrastructure
This rear I/O card eliminates media converters and delivers direct copper Ethernet connectivity for local machinery data collection.
Hardware Architecture & Under-the-Hood Logic
This is a passive rear daughter card with no independent processing power; it piggybacks off the 3500/22M front TDI processor via rack backplane connectors. All signal conversion and data buffering lives on the front main board.
- High-speed digital data bus from front 3500/22M routes to rear card connector pins.
- Magnetic isolation transformers separate LAN side noise from sensitive rack backplane circuits.
- Ethernet PHY chip handles auto-negotiation and packet framing for TCP/IP transmission.
- RJ45 jack passes TX/RX traffic to plant network cable; integrated LED link/activity indicators.
- Buffered analog waveform signals (-10V to +10V) breakout for portable field data collectors.
- All power for the Ethernet PHY draws from the front 3500/22M backplane supply.
Field Service Pitfalls: What Rookies Get Wrong
Mixing 146031-01 copper and 146031-02 fiber rear cards on same rackTechs swap fiber rear cards for copper without matching front firmware revisions. Mismatched hardware causes total Ethernet comms loss and missing vibration trends.
- Field Rule: Match rear card variant to site network media; validate front 3500/22M firmware supports the daughter card before installation.
Running unshielded CAT5 cable parallel to 480V motor power wiringUnshielded cabling picks up VFD and motor EMI, triggering constant packet loss, missing transient waveforms, and random rack comms faults.
- Quick Fix: Deploy shielded CAT6 industrial cable; ground cable shield only at cabinet switch end; separate power and signal trays by minimum 30cm.
Forgetting rear card locking latches during hot-swapLoose rear card backplane connectors create intermittent data drops that only surface under machine vibration. Intermittent faults take hours to replicate during bench testing.
- Field Rule: Fully seat rear card and engage both locking latches; tug lightly to confirm no play before closing rack door.
