Component Snapshot At-a-Glance
- Model: TCM4351B
- Alt. P/N: 4351A (legacy older revision copper TCM); 4352B direct fiber port variant, no RJ45 copper jacks
- Product Series: Triconex Tricon V10+ SIL3 TCM (Tricon Communication Module) family
- Hardware Type: TMR triple-redundant multi-protocol gateway PCB, chassis hot-swap rack mount
- Key Feature: 4 configurable DB9 serial + dual RJ45 Ethernet onboard, 500VDC per-port galvanic isolation
- Primary Field Use: Bridge Tricon SIS core controller to external DCS/SCADA, field Modbus instruments and TriStation engineering workstation

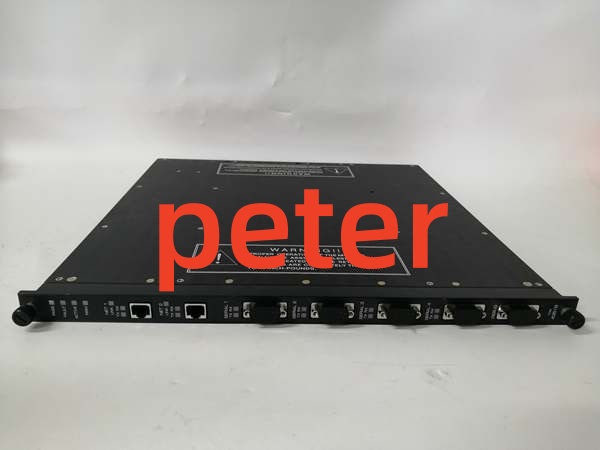

Triconex TCM4351B
Hard-Numbers: Technical Specifications
- Protocol Support: Modbus RTU/TCP Master/Slave, TSAA, SNTP, TriStation, UDP Peer-to-Peer, Trimble GPS, ICMP
- Port Count: 4×DB9 Serial(RS232/485) + 2×RJ45 10/100M Ethernet(NET1/NET2)
- Max Serial Baudrate: 115.2kbps per single serial channel; total aggregate serial 460.8kbps
- Backplane Input Power: 24VDC chassis backplane feed; typical draw 19W per module
- Isolation Rating: 500VDC isolation between all field ports and internal TMR logic circuit
- Operating Temperature: 0℃~+70℃ continuous rated; -40℃~+85℃ storage range
- Physical Dimension/Weight: 300×120×30mm, net weight 3.18kg
- Certification: IEC61508 SIL3, UL Div2, ATEX Zone2, FM hazardous location approval
The Real-World Problem It Solves
Older single-function serial-only comm cards force site install to deploy multiple standalone Modbus gateways for mixed Ethernet/serial field devices. Separate third-party gateways add extra cabinet heat and introduce uncertified non-SIL3 single-point failure paths on safety shutdown loops。
Where you’ll typically find it:
- Refinery FCC unit SIS room, linking Tricon HIPPS to Foxboro DCS via Modbus TCP + field transmitters over RS485
- Coal power boiler BMS cabinet, connecting flame scanner serial signals and plant SCADA Ethernet uplink
- Onshore gas compressor HIPPS skid for GPS time sync + remote Modbus master polling of pressure transmitters
Single-card multi-port design eliminates external gateways and keeps all inter-system communication inside SIL3 certified Tricon hardware boundary.
Hardware Architecture & Under-the-Hood Logic
Three fully independent 32-bit embedded processors run parallel protocol stack on separate TMR legs; no shared bus between channel cores, all port data gets three-way hardware voting before backplane handoff。
- Front-panel RJ45/DB9 field signals pass through isolated surge protection to three split receive circuits per port.
- Each onboard core decodes assigned protocol independently without cross-channel clock sync dependency.
- Validated inbound process data is voted across three TMR legs; single leg corrupted payload discarded automatically.
- Processed outbound data from Tricon backplane gets split three ways before conversion to serial/Ethernet physical layer signal.
- Onboard thermistor scales processor core clock speed above 65℃ internal PCB temp to reduce thermal-induced comm CRC errors.
- Hidden debug port locked factory-only for firmware flash, inaccessible to field wiring to prevent unintended config overwrite。

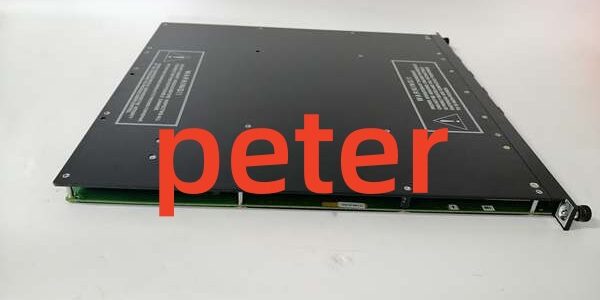

Triconex TCM4351B
Field Service Pitfalls: What Rookies Get Wrong
Mixing 4351A and 4351B inside redundant TCM slot pairJunior tech replaces failed 4351B with older 4351A spare; differing internal firmware architecture triggers intermittent NET port link flapping during cabinet ambient temperature swings。
- Field Rule: Redundant paired TCM slots require identical revision model; full TMR set must match 4351B exclusively.
Dual-End Grounded RS485 Serial Cable ShieldsInstaller grounds DB9 cable shield both cabinet ends; ground potential difference across field wiring injects noise causing random Modbus register freeze and sporadic FAULT LED blink。
- Quick Fix: RS485 shield ground only at TCM cabinet side, remote instrument end shield left floating open circuit.
NET1/NET2 Parallel Plug Into Same Plant LAN Switch DomainTech patches both Ethernet ports into identical control LAN subnet; internal TCM routing conflict generates broadcast storm and TriStation download timeout failures。
- Field Rule: NET1 reserved for TriStation/Peer sync, NET2 for Modbus TCP SCADA uplink; split into isolated VLAN segments per site FAT spec.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
