Component Snapshot At-a-Glance
- Model: 4000103-510
- Alt. P/N: No direct cross part; 4000103 series alternate lengths = 310(1m),610(5m),510=3m standard stock length
- Product Series: Triconex Tricon V9/V10 SIL3 prefabricated I/O termination cable family
- Hardware Type: Factory pre-wired DO(Digital Output) harness; one end 15pin D-SUB male for I/O card, opposite side open terminal block strip
- Key Feature: Full braided overall shield + individual twisted pair core construction, pre-pin verified factory wiring eliminating field miswire risk
- Primary Field Use: Connect Tricon rack DO output module to cabinet terminal strips for ESD solenoid, shutdown valve discrete field wiring
Hard-Numbers: Technical Specifications
- Conductor Spec: 22AWG stranded tinned copper, total 15 internal signal conductors
- Cable Standard Length: 3 Meter (10FT) factory fixed build length for 510 suffix
- Insulation & Jacket: PVC/TPE industrial grade outer jacket, rated 300V working voltage
- Shield Structure: Copper braided full coverage shield, single end factory prep for chassis ground termination
- Operating Temperature: -40℃ ~ +70℃ continuous operational; -40~+85℃ storage rating
- Isolation Surge Rating: 500VDC dielectric isolation between signal core and outer shielding
- Connector Type: Fixed molded 15pin D-SUB at card side; loose terminal block strip at field wiring end
- Compliance: UL, CE certified, matches SIL3 IEC61508 site FAT wiring requirement

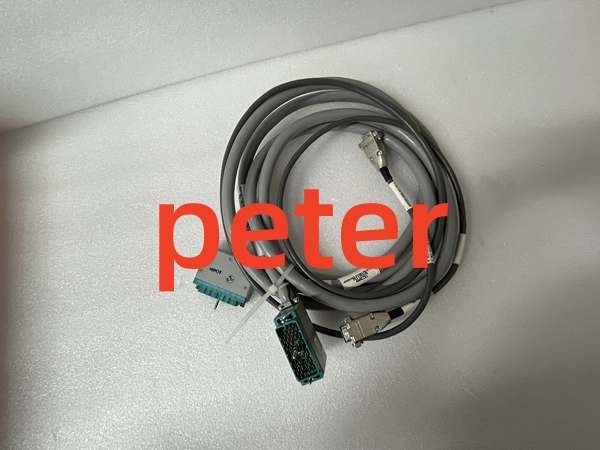

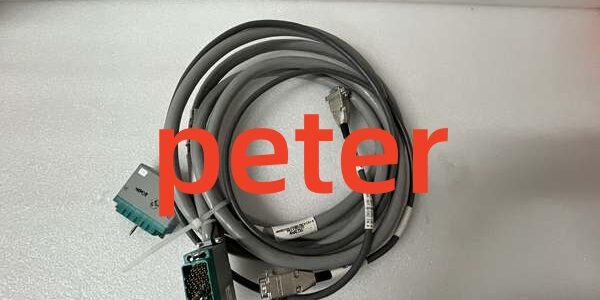

Triconex 4000103-510
The Real-World Problem It Solves
Field technicians hand-build custom DO cabling routinely introduce pin swap, loose crimp and shielding errors during rush commissioning. Improvised field cables trigger random solenoid dropout and spurious SIS fault flags after seasonal cabinet temperature shifts.
Where you’ll typically find it:
- Refinery ESD cabinet rack, linking Tricon DO cards to shutdown valve solenoid terminal rows
- Power plant BMS burner trip cabinet for fuel gas shutoff valve discrete output wiring
- Onshore gas HIPPS control cabinet for high-pressure relief valve pilot coil wiring
Factory pre-terminated construction cuts wiring QA test time by 70% and removes human error from SIS safety loop wiring.
Hardware Architecture & Under-the-Hood Logic
Cable’s dual-end preconfigured design splits signal path from Tricon backplane module out to field terminals without intermediate splices; internal twisted pair layout mapped one-to-one to Tricon DO channel pin definition.
- Molded D-SUB end plugs directly into rear edge of Tricon digital output module, locking to card factory pinout mapping.
- Internal 15 individual twisted pairs run separated inside shielded jacket to prevent cross-channel crosstalk from adjacent AC power cables.
- Full outer braid shield terminates only on D-SUB side factory ground lug; terminal block end shield left untrimmed/floating per SIS grounding rules.
- Exposed terminal block side strips let field tech land individual solenoid wiring directly without stripping bulk outer jacket.
- Integrated molded strain relief at D-SUB head prevents core wire breakage from cabinet door vibration and cable tugging.

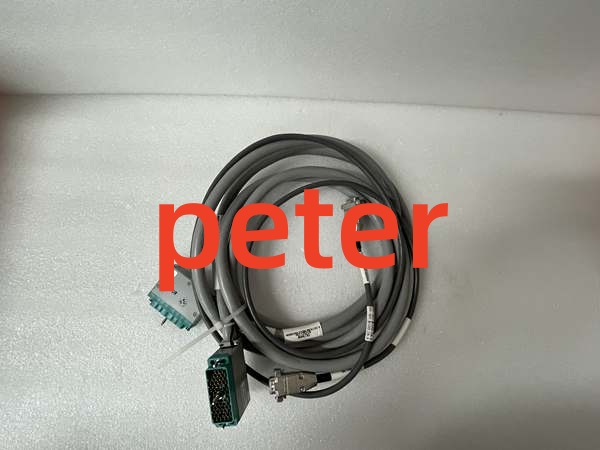

Triconex 4000103-510
Field Service Pitfalls: What Rookies Get Wrong
Dual-End Grounding Cable Braided ShieldNew tech strips opposite terminal block end shield and bonds to cabinet ground rail; differing chassis ground potentials create circulating ground loop noise causing intermittent DO channel dropouts on motor startup transients.
- Quick Fix: Only ground braided shield at D-SUB connector chassis lug; all opposite-side shield insulation remains intact, no ground connection allowed.
Cutting Factory Terminal Block End To Shorten Cable RunInstaller trims terminal block strip off to shorten overall cable length, damages internal core twist geometry and ruins pre-calibrated impedance layout.
- Field Rule: Never shorten factory pre-terminated 4000103-510; excess cable must be neatly coiled inside cabinet floor per site wiring specs instead of cutting.
Mixing DO/AI Cable Part Numbers Across Same I/O Triplet RackTech substitutes AI variant 4000103 alternate PN onto DO module slot; mismatched internal pinout triggers channel misalignment and TriStation forced fault alarms.
- Field Rule: 4000103-510 exclusively pairs with Tricon Digital Output modules; analog input cables carry different part suffix and cannot cross-substitute.
