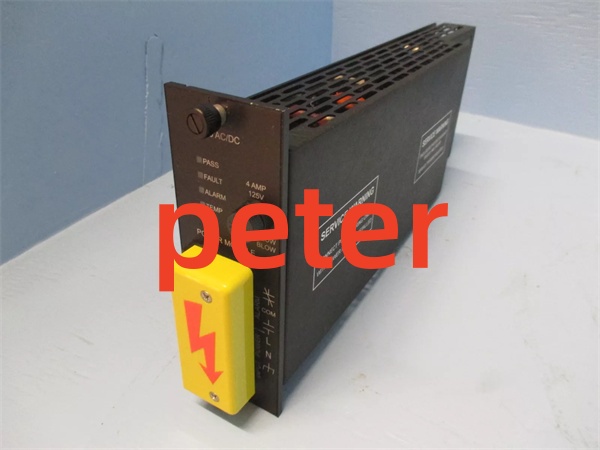

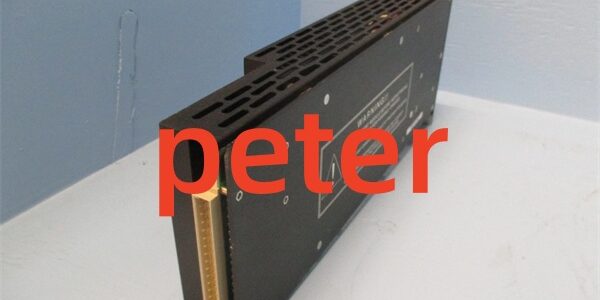

Component Snapshot At-a-Glance
- Model: 8301A
- Alt. P/N: 8301 (non-A base variant; no enhanced overcurrent lockout, cannot cross-replace without rack config tweak)
- Product Series: Triconex Tricon SIL3 TMR SIS rack family, chassis primary DC power supply lineup
- Hardware Type: Hot-swappable rack plug-in isolated DC-DC rack power converter, redundant parallel-capable PSU
- Key Feature: Independent internal overvoltage/overcurrent cutback per rail, front-panel PWR-GOOD fault relay output for DCS alarm pickup
- Primary Field Use: Convert site 24VDC UPS/battery bank feed to regulated multi-rail internal backplane voltages for all Tricon CPU, I/O, comm cards inside SIS chassis
Hard-Numbers: Technical Specifications
- Input Power Range: 18VDC ~ 30VDC nominal DC input; rated for 24VDC battery-backed UPS source
- Total Continuous Output Rating: 110W max combined regulated backplane power per single module
- Isolation Rating: 2000VDC galvanic separation between field 24V input and internal chassis output rails
- Operating Temperature: 0°C ~ +65°C continuous operational; -40°C ~ +85°C non-operational storage
- Parallel Redundancy: N+1 redundant parallel operation allowed, no load-sharing external jumper required
- Output Rail Breakdown: +5V, +12V, -12V fixed internal backplane regulated voltages
- Hot-Swap Status: Full live hot-swap on energized SIS rack, no chassis interlock or process trip during replacement
- Fault Alarm Output: Dry contact relay rated 24VDC/1A for remote cabinet fault annunciation
The Real-World Problem It Solves
Generic off-brand industrial brick power supplies lack overvoltage lockout; single rail short from aged I/O card can surge unregulated voltage into backplane and cook entire TMR CPU set mid-shutdown cycle. Non-redundant standalone PSU design triggers full chassis crash on input voltage sag during site UPS transfer transients.
Where you’ll typically find it:
- Refinery FCC unit ESD SIS rack paired dual redundant 8301A feeding 3007 CPU and digital I/O bank
- Offshore platform F&G safety cabinet tied to 24V lead-acid battery backup for loss-of-main-power survival
- Coal-fired boiler BMS SIS chassis with N+1 spare 8301A for planned maintenance swap without plant downtime
Built-in multi-stage fault cutoff and parallel redundancy eliminates external auxiliary rack power units and cuts unplanned SIS shutdown risk from single supply failure.
Hardware Architecture & Under-the-Hood Logic
Internal split-stage isolated DC-DC conversion design separates front-end input EMI filter from three independent output regulation circuits; each output rail uses discrete PWM control to limit cross-rail fault propagation across backplane feeds.
- Site 24VDC UPS input first passes through common-mode choke and bulk surge capacitor bank to suppress VFD-induced line noise before primary switching stage.
- Isolated high-frequency transformer splits raw DC into three separate winding feeds dedicated to +5V, +12V, -12V output regulation stages.
- Per-rail overcurrent and overvoltage comparator circuits continuously sample output; fault on single rail triggers partial shutdown instead of full module lockout to preserve remaining chassis power.
- Front-panel logic monitors internal regulation health; PWR-GOOD relay drops open when any rail drifts ±5% outside factory set tolerance to trigger site control room fault alarm.
- Parallel interlock pin on module edge connector auto-balances load between paired redundant 8301A units without external active load share board.
- Onboard thermal thermistor pulls back output wattage linearly as internal PCB temp climbs above 58°C to avoid premature component degradation in high-heat cabinet environments.
Field Service Pitfalls: What Rookies Get Wrong
Overstuffing Cabinet With Excess I/O Cards Beyond Single 8301A Wattage LimitNew technicians fill full 12-slot chassis with high-draw analog I/O modules on a single non-redundant 8301A; continuous overload triggers progressive thermal derate leading to random intermittent tag dropout and sporadic CPU resets during hot ambient daytime operation.
- Field Rule: Cap single 8301A chassis loading under 90W continuous; install second redundant 8301A when chassis total calculated load exceeds 75W nominal.
Routing Unfiltered 24VDC Input Wiring Alongside High-Current 480V AC Cable TraysField crews run unshielded 24V feed wire next to motor power cabling; induced AC ripple creeps into PSU input causing periodic voltage dips and intermittent PWR-GOOD fault flashes under large compressor startup inrush.
- Quick Fix: Separate 24VDC input cabling minimum 25cm from AC power runs; install ferrite core clamp on 8301A input terminals for high-noise cabinet locations.
Mismatched Input Battery Polarity During Spare PSU Pre-WiringReverse DC polarity on spare replacement 8301A during bench pre-termination blows internal input fuse and front-end surge protection diodes; damaged unit cannot hot-swap into live rack without shorting chassis backplane.
- Field Rule: Verify input polarity with handheld multimeter at terminal lugs before every new module wiring; label positive/negative feed at cabinet terminal strip permanently.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
