Component Snapshot At-a-Glance
- Model: 4351A
- Alt. P/N: Factory direct drop-in upgrade to 4351B; no alternate OEM cross part number
- Product Series: Triconex Tricon V9/V10 early-gen SIL3 TMR SIS rack platform, predecessor of 4351B
- Hardware Type: Rack-mounted triple redundant legacy multi-protocol TCM communication module
- Key Feature: Base 500VDC port isolation without upgraded surge suppression present on revised 4351B PCB layout
- Primary Field Use: Legacy refinery and coal-fired power SIS racks bridging Tricon core logic to older DCS/HMI via Modbus RTU/TCP
Triconex 4351B
Hard-Numbers: Technical Specifications
- Backplane Input Power: 24VDC nominal, 18~30VDC acceptable operating range from chassis TriBus rail
- Typical Full-Load Power Draw: 10.8W steady state; peak 17.2W cold boot startup draw
- Serial Port Count: 4x DB9 configurable RS232/RS485, max baud rate 115.2kbps per independent channel
- Ethernet Port Count: 2x RJ45 10/100Base-T copper auto-negotiate LAN ports; optional MT-RJ fiber variant available factory build
- Port-to-Backplane Isolation Rating: 500VDC dielectric withstand across all external field ports
- Continuous Operating Temp: -40°C ~ +70°C cabinet runtime; -40°C ~ +85°C non-operating storage rating
- Supported Protocols: Modbus RTU/TCP, TriStation, TSAA, SNTP, Peer-to-Peer UDP, Trimble GPS
- Certification: IEC61508 SIL3, UL Class I Div2, ATEX Zone2 hazardous location approval
- Unit Net Weight: 2.2kg standard populated card assembly
- Ambient Humidity: 5%~95%RH non-condensing closed cabinet only
The Real-World Problem It Solves
Site upgrades often retain legacy DCS hardware lacking modern Ethernet protocol stacks, forcing plant crews to source discontinued gateway hardware to connect vintage SIS and control systems. Newer 4351B firmware blocks older proprietary peer comms required for legacy Tricon V9 rack cross-linking.
Where you’ll typically find it:
- Aging FCCU refinery SIS racks tied to legacy Foxboro I/A Series DCS via RS485 Modbus
- Coal power boiler BMS cabinets with original HMI relying on 4351A exclusive old TriStation peer protocol
- Retrofitted offshore platform ESD racks preserving original field Modbus slave instrument wiring
This legacy card eliminates costly full DCS/SIS rack replacement by maintaining obsolete communication handshakes unsupported on updated 4351B hardware.
Hardware Architecture & Under-the-Hood Logic
Three discrete TMR processing slices run independent protocol firmware on separate onboard microcontrollers; older PCB design uses discrete optocoupler isolation instead of integrated ASIC barriers found on 4351B revisions.
- External serial/Ethernet wiring terminates to front panel ports before crossing passive 500VDC isolation barrier onto main PCB traces.
- Each of three redundant cores samples inbound network data separately without shared signal conditioning circuitry.
- Raw payload feeds into discrete hardware comparator for mandatory 2oo3 voting to filter single-core component drift or EMI noise.
- Validated communication data transfers over original TriBus backplane protocol to Tricon main processor module.
- Front panel LED mapping: steady green = active port link; fast blink = cyclic data traffic; solid red = port short/overvoltage fault.
- Hidden factory debug DB9 port locked to proprietary old firmware load routines, incompatible with newer 4351B flash tools.

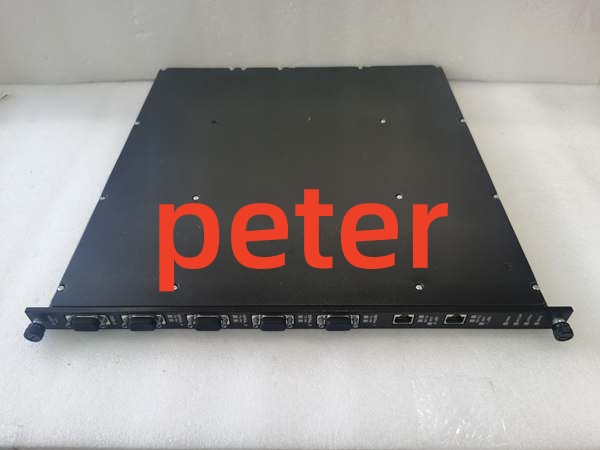

Triconex 4351B
Field Service Pitfalls: What Rookies Get Wrong
Direct Drop-In 4351B Replacement Without Backplane/Firmware Compatibility CheckNew tech swaps faulty 4351A with spare 4351B directly in slot; updated onboard firmware cannot handshake with V9-era rack backplane, triggering persistent rack COMM FAULT alarm.
- Quick Fix: Confirm chassis Tricon firmware revision first; stick to 4351A spares for pre-V10.1 rack installations.
Run Unshielded Long RS485 Runs Next To High-Voltage VFD Cabinet CablingField installers route unshielded Modbus wiring adjacent to variable frequency drive power cables; 4351A’s older discrete isolation circuit lacks enhanced EMI filtering, spawning constant CRC read errors.
- Field Rule: Separate serial field wiring minimum 15cm from 480V motor feed cables; use braided shield grounded single-end at cabinet terminal strip.
Hot-Swap Card With Live Field Cabling Remaining Plugged Into Front PortsMaintenance pulls energized 4351A while serial/Ethernet cables stay hot-connected; older unprotected port transceivers suffer reverse voltage surge damage far easier than revised 4351B variants.
- Quick Fix: Disconnect all front-panel field connectors fully before removing module from rack slot for replacement.
