Component Snapshot At-a-Glance
- Model: 4351B
- Alt. P/N: No OEM direct cross replacement, field cross to older 4351A only for spare pooling
- Product Series: Triconex Tricon V9/V10/V11 SIL3 TMR SIS rack platform
- Hardware Type: Rack-mounted triple redundant multi-protocol communication gateway module
- Key Feature: 4 isolated DB9 serial + dual RJ45 Ethernet ports with 500VDC per-port galvanic isolation
- Primary Field Use: Bridge Tricon SIS core logic to external DCS, SCADA, field Modbus instruments and TriStation programming host inside refinery & combined-cycle power plant safety racks

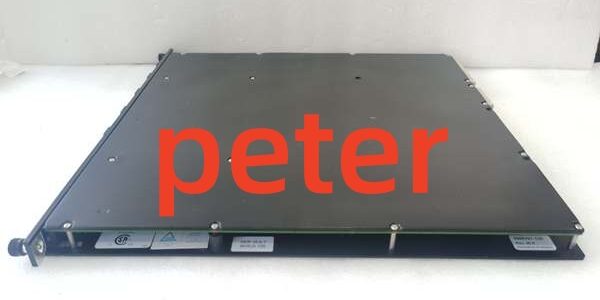

Triconex 4351B
Hard-Numbers: Technical Specifications
- Backplane Supply: 24VDC (18~30VDC allowable input range) sourced from Tricon chassis backplane
- Power Draw: 12W typical full-load consumption; max 19.5W peak startup power
- Serial Port Count: 4 independent DB9 RS232/RS485 configurable ports, 115.2kbps max per channel
- Ethernet Port Count: 2x RJ45 10/100Base-T auto-negotiate copper LAN ports
- Isolation Rating: 500VDC dielectric isolation between all external ports and internal TMR bus
- Operating Temperature: -40°C ~ +70°C continuous cabinet run; -40°C ~ +85°C storage limit
- Supported Protocols: Modbus RTU/TCP, TSAA, SNTP, TriStation, Peer-to-Peer UDP, Trimble GPS, ICMP
- Safety Certification: IEC61508 SIL3, UL Class I Div2, ATEX Zone2 hazardous location rated
- Unit Weight: 2.3kg standard assembled rack card; 3U Tricon chassis form factor
- Ambient Humidity: 5%~95%RH non-condensing closed cabinet environment only
The Real-World Problem It Solves
Separate standalone protocol gateways crowd limited cabinet slot space and add extra single-point failure paths between SIS and plant SCADA networks. Older single-port comm cards require stacking multiple modules to mix serial Modbus and Ethernet TCP links.
Where you’ll typically find it:
- Refinery FCCU SIS racks linking Tricon ESD logic to Foxboro DCS via Modbus TCP over NET1 port
- Gas-fired power BMS cabinets pulling boiler instrument Modbus RTU data via RS485 serial ports
- Offshore FPSO safety racks handling TriStation remote programming + peer Tricon controller cross-communication
Consolidated multi-port layout eliminates third-party gateway hardware while cutting spare part inventory and inter-cabinet wiring overhead for mixed serial/Ethernet site integration.
Hardware Architecture & Under-the-Hood Logic
Three fully segregated TMR onboard microcontroller cores run independent protocol stack processing; all external port circuits isolate from backplane TriBus to block field-side surge damage to rack CPU bus.
- Inbound serial/Ethernet traffic lands on isolated front-panel port transceivers before passing across 500VDC isolation barrier to internal PCB logic.
- Each of three redundant CPU slices independently parses incoming protocol data and generates outbound response frames.
- Internal hardware voting circuit executes 2oo3 check on all processed payload to filter single-core component glitches and corrupted data frames.
- Validated communication payload routes over proprietary TriBus backplane to Tricon main processor for safety logic data exchange.
- Front panel LED mapping: solid green = port active link; slow blink = active data transfer; solid red = port overvoltage/short fault.
- Dedicated hidden debug DB9 port reserved exclusively for factory firmware reload, no field end-user configuration access allowed.
Triconex 4351B
Field Service Pitfalls: What Rookies Get Wrong
Mix RS232 and RS485 Wiring On Same Unconfigured Serial PortNew technicians hardwire 2-wire RS485 field devices to ports set for default RS232 mode, causing intermittent garbled Modbus reads and random port dropouts under cabinet EMI spikes.
- Quick Fix: Set port hardware mode inside TriStation first before terminating field cables; tag each DB9 terminal block by protocol type on cabinet wiring schedule.
Cascade Multiple Unisolated Modbus Slaves On Single Serial Bus Without Termination ResistorsField crews daisy-chain over 15 Modbus RTU instruments on one 4351B serial run with no 120Ω end-of-line termination, signal reflection triggers cyclic CRC errors across entire bus segment.
- Field Rule: Cap RS485 bus endpoints with 120Ω 0.5W resistors; limit max 12 slave nodes per single serial port run.
Hot-Swap Energized Module With Live Ethernet/Serial Field Cables Plugged InMaintenance pulls 4351B while all external communication cabling remains hot-connected; reverse feed transient voltage fries onboard port transceiver ICs and permanently disables affected channels.
- Quick Fix: Unplug all front-panel RJ45/DB9 field connectors first before extracting module from rack slot for replacement.
