Component Snapshot At-a-Glance
- Model: CM400YH (OEM part marking for Foxboro FBM07 core circuit board)
- Alt. P/N: No factory cross part; matching termination base = P0700SA
- Product Series: Legacy Foxboro I/A Classic DCS (pre-Evo Nodebus rack architecture)
- Hardware Type: Single-slot rack mount 32-channel grouped-isolation dry contact digital input PCB assembly
- Key Feature: 4×8-channel isolated banks with bank-only global debounce, no per-channel filter adjustment
- Primary Field Use: Consolidate bulk breaker, valve limit switch dry-contact feedback to cut cabinet rack slot consumption on large process racks.

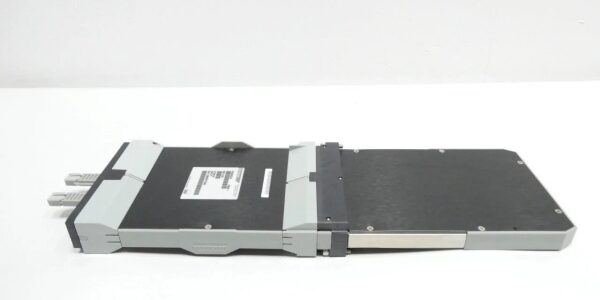

Foxboro P0400DA
Hard-Numbers: Technical Specifications
- Protocol Support: Redundant HDLC Nodebus 2Mbps backplane communication to FCP/CP rack controllers
- Port Count: 32 DI channels split into four independent 8-channel isolated banks
- Baud/Data Rate: Fixed 2Mbps cyclic Nodebus scan synced to host rack CPU timing
- Operating Temperature: -20°C ~ +60°C operational; -40°C ~ +85°C transit/storage rating
- Isolation Rating: 500VAC bank-to-backplane galvanic isolation; no individual channel opto separation
- Power Draw: 4.1W nominal, full 24VDC SELV feed pulled directly from rack baseplate gold fingers
- Field Sensing Voltage: 48VDC nominal wetting source, acceptable field range 15VDC~60VDC dry contact input
- Input Sink Current: 1.35mA per closed dry contact channel typical draw
- Debounce Range: 1ms to 250ms programmable filter applied uniformly per entire 8-point bank
- Certified Mating Base: Exclusively P0700SA screw terminal termination assembly
The Real-World Problem It Solves
Facility tech stacking multiple 16-point FBM207 cards eats excessive rack real estate and inflates spare part inventory for bulk status collection racks. Loose grouped wiring also creates cascading channel dropout when single wire shorts inside crowded cabinets.
Where you’ll typically find it:
- Coal-fired power station main switchgear bulk breaker auxiliary contact DCS input racks
- Refinery CDU/FCC multi-valve bank consolidated limit switch I/O cabinet assemblies
- Natural gas pipeline compressor ESD permissive centralized dry contact monitoring panels
This high-density 32-point PCB halves required rack slots compared to standard 16-channel DI hardware for large-scale status gathering.
Hardware Architecture & Under-the-Hood Logic
’s single onboard gate array ASIC manages all four input banks; no dedicated per-channel processing, all bounce filtering and backplane packet assembly handled centrally before Nodebus transmission. Edge gold pins interface directly to redundant Nodebus backplane for rack power and cyclic data exchange.
- Field dry contact closure completes 48VDC loop across assigned bank optocoupler to flag logic high on grouped input circuitry.
- Pre-set global bank debounce timer suppresses mechanical contact bounce for all eight points within the affected bank simultaneously.
- Central ASIC compiles four separate 8-bit input registers into a single 32-bit module status payload per rack scan cycle.
- Compressed bit data routes over redundant HDLC Nodebus to rack controller for DCS tag mapping and live HMI status refresh.
Foxboro P0400DA
Field Service Pitfalls: What Rookies Get Wrong
New field crew installs P0917MF (FBM207C TA) to ; mismatched pin routing feeds 24V instead of required 48V wetting voltage, all connected channels go dead instantly.
- Field Rule: Only pair with factory specified P0700SA base; zero cross-compatibility with any FBM207 termination lineup.
Adjusting full-bank debounce to fix isolated single-channel noiseTechnician bumps global bank filter timing to quiet one noisy wire, adding unnecessary delay across all eight associated channels and delaying valid fault alarm reporting.
- Quick Fix: Reroute noisy signal wire to separate cable tray away from 480V motor power runs instead of modifying bank filter parameters.
Unpowered software bypass before live module extractionTech pulls energized straight from hot rack slot; uneven pin contact during removal shorts internal ASIC supply and locks persistent front-panel FAULT indicator.
- Field Rule: Disable all 32 associated input tags inside Foxboro Control Builder before removing powered module from rack slot.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
