Component Snapshot At-a-Glance

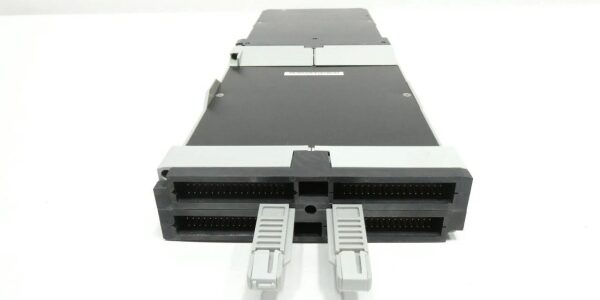

- Model: P0400DA
- Alt. P/N: FBM01 (industry common designation, FBM1 shorthand)
- Product Series: Foxboro Classic I/A Series legacy long-base FBM platform
- Hardware Type: 8-channel loop-powered isolated analog input fieldbus module
- Key Feature: Per-channel built-in 24VDC loop supply plus individual open-loop fault LED indication
- Primary Field Use: Powers and reads 2-wire 4-20mA process transmitters for pressure, flow and level DCS monitoring.
Hard-Numbers: Technical Specifications
- Protocol Support: Foxboro proprietary Modulebus backplane communication
- Port Count: 8 fully isolated analog input channels, 0–20.4mA full calibrated range
- Baud/Data Rate: Fixed 9600bps Modulebus speed; 10Hz maximum per-channel sample refresh
- Operating Temperature: -20°C ~ +70°C continuous cabinet ambient rating
- Isolation Rating: 1500VAC galvanic isolation between field circuits and backplane logic
- Power Draw: 3.2W nominal operating load sourced from baseplate 24VDC SELV rail
- Per-Channel Loop Voltage: Regulated 24VDC output to feed field 2-wire transmitters
- Hot-Swap Rating: Live insert/remove allowed on energized original long FBM baseplate
- Full Scale Accuracy: ±0.05%FS analog conversion tolerance
The Real-World Problem It Solves
Separate external DIN rail 24V power supplies add extra terminal marshalling and loose wiring points prone to intermittent open faults across transmitter loops. Unfiltered standalone input hardware picks up MCC switching noise and triggers unplanned false high/low process alarms.Where you’ll typically find it:
- Coal-fired utility boiler feedwater and drum level DCS marshalling racks
- Refinery crude distillation unit inlet pressure and overhead flow instrument cabinets
- Bulk chemical plant outdoor tank farm remote level monitoring I/A enclosures
Integrated loop power and onboard input filtering cuts extra field wiring while lowering transient-induced erratic PV swings.
Hardware Architecture & Under-the-Hood Logic
This board includes a dedicated multi-channel ADC processor IC; field input section sits behind reinforced isolation barriers to block ground loop current from leaking into backplane circuitry.
- Rear gold-finger header draws regulated 24VDC operating power and Modulebus command frames from legacy long FBM baseplate.
- Onboard isolated linear regulators generate stabilized 24VDC routed out each channel terminal to energize connected field transmitters.
- Returned 4–20mA analog current flows through surge protection and low-pass RC filters before feeding high precision ADC conversion stage.
- Converted digital process values get formatted into bus packets and transmitted upstream to FCP controller via Modulebus.
- Internal fault detection circuitry tracks broken field wiring or dead transmitters to light matching per-channel front panel FAULT LED.
Field Service Pitfalls: What Rookies Get Wrong
Parallel Multiple Transmitters Onto Single Input Channel
New field tech ties two separate 2-wire transmitters to one terminal pair; competing internal loop supplies create intermediate mA readings with no visible channel fault LED.
- Quick Fix: Split each transmitter to its own unused channel; install short jumpers on idle input terminals to suppress floating noise.
Install Into FBM200-Series Compact Baseplate
Improper seating into newer compact rack baseplate causes pin definition mismatch; module locks steady red FAULT and drops all Modulebus communication entirely.
- Field Rule: Restrict exclusively to original long classic I/A baseplate; select FBM201 as drop-in replacement for 200-series compact racks.
Dual-End Ground Instrument Cable Shield
Crew grounds cable shield both at cabinet terminal strip and field transmitter junction box; induced 60Hz hum creates ground loop and leads to continuous bouncing DCS process values.
- Field Rule: Terminate cable shield only at DCS cabinet side; keep field end shield insulation intact and floating ungrounded.
