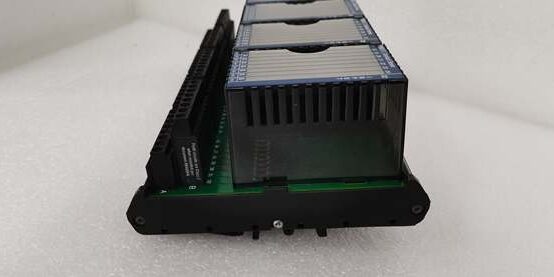

Component Snapshot At-a-Glance
- Model:
- Alt. P/N: No direct OEM cross; paired exclusively with FBM217 core I/O card
- Product Series: Foxboro I/A Series DCS FBM Fieldbus Module Family
- Hardware Type: Compression-style discrete input termination base assembly
- Key Feature: Tool-free compression wire clamping eliminating screw terminal loosening from cabinet vibration
- Primary Field Use: Field discrete switch/breaker contact wiring breakout for FBM217 32-channel digital input cards across process plant DCS racks.
Hard-Numbers: Technical Specifications
- Protocol Support: Passive wiring breakout only, no onboard protocol processing; routes raw DI signals to FBM217 motherboard
- Port Count: 32 individual compression field wire terminals + single 50-pin ribbon connector to card edge
- Baud/Data Rate: N/A, passive hardwired DC discrete signal path
- Operating Temperature: 0°C ~ +60°C rated; derate above 55°C for high-humidity cabinet installs
- Isolation Rating: 1500V field-to-backplane channel isolation via paired input circuitry
- Power Draw: <1.2W, draws 24VDC loop power sourced through main card
- Logic Threshold: 0–5VDC = Logic Zero, 15–30VDC = Logic One per field input channel
- Max Field Input Voltage: 30VDC nominal continuous input rating
The Real-World Problem It Solves
Screw-type terminal blocks creep loose under continuous cabinet vibration from plant fans and rotating equipment, triggering intermittent DI fault alarms across breaker status and valve position feedback points. Traditional terminal strips require screwdriver retorque during every outage, inflating scheduled maintenance hours.
Where you’ll typically find it:
- Refinery main MCC control rack: Motor starter auxiliary contact status wiring for pump interlock logic
- Fossil power plant boiler cabinet: Burner management system flame switch and limit contact DI termination
- Natural gas compressor skid DCS cabinet: High/low pressure switch discrete input field breakout
Compression clamp design cuts recurring terminal retorque work and reduces random unplanned DCS point dropout caused by loose field wiring.
Hardware Architecture & Under-the-Hood Logic
This is a passive terminal base with no embedded processor; all signal conditioning and logic sampling lives on the mating upper card, only routing field DC discrete signals between field cable and I/O core board via internal printed circuit traces.
- Individual field copper wires seat into compression spring terminals with hand press-in fit, no screw tightening required
- PCB internal traces aggregate all 32 discrete input paths into single 50-pin edge connector footprint
- Mated plugs directly atop ; connector pins transfer raw DC field signals into card’s opto-isolated input circuits
- Onboard optocoupler converts raw field voltage into digital logic levels for I/A backplane bus transmission
- Fault open/short on any field wire propagates directly to DCS HMI point alarm via parent FBM card diagnostics
Field Service Pitfalls: What Rookies Get Wrong
Overstuffed Compression Terminals With Oversized Wire GaugeNew techs force 14AWG stranded cable into terminals rated for max 18AWG wire; spring clip never fully closes, yielding high-res intermittent contact that randomly drops DI tags under cabinet temperature swing.
- Field Rule: Restrict field wiring to 20–18AWG solid/stranded copper per OEM terminal rating; split large multi-conductor cables across adjacent channels when needed.
Partial half-seated 50-pin ribbon connector creates floating input reference; entire bank of 32 DI channels shows random false open/closed status without consistent fault code.
- Quick Fix: Press straight down until audible click locks connector; pull upward lightly to verify full mechanical lock before power restoration.
Mounting Base On Unsecured DIN Rail Subject To Constant VibrationLoose DIN rail mount lets shift inside rack over months; connector creep eventually pulls partial pin contact between base and FBM card.
- Field Rule: Lock DIN rail end stops on both rack sides after module installation to eliminate lateral module shift.
