Component Snapshot At-a-Glance

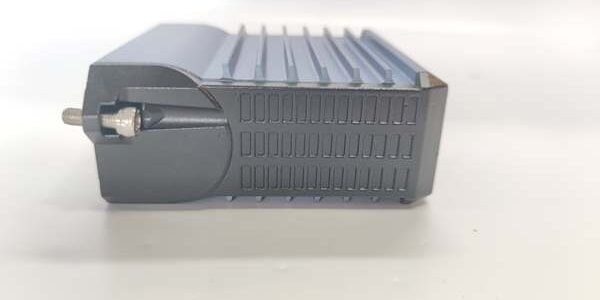

- Model: FBM241 (sub variants: FBM241B / FBM241C / FBM241D)
- Alt. P/N: No direct OEM cross; matched terminal bases: P0916AW, P0916JW, P0916QQ, P0916AQ
- Product Series: Foxboro I/A Series FBM Fieldbus I/O Module Family
- Hardware Type: Hot-swappable rack mount isolated mixed DI/DO fieldbus card
- Key Feature: Per-channel opto-isolation between field wiring and backplane bus, software configurable input filter & fail-safe output mode
- Primary Field Use: Collect equipment auxiliary contact status and drive solenoid/contactors across MCC, burner, pump skid discrete control loops.
Hard-Numbers: Technical Specifications
- Protocol Support: Native I/A Fieldbus backplane communication only, no external fieldbus protocol processing
- Port Count: 8 isolated DI channels + 8 isolated DO channels; single 37-pin edge connector to matching terminal base
- Baud/Data Rate: N/A discrete DC/AC hard signal; backplane bus fixed I/A proprietary timing
- Operating Temperature: -25°C ~ +70°C ambient; derate continuous load above +60°C inside sealed cabinets
- Isolation Rating: 1500V per-channel galvanic isolation field-to-logic, channel-to-channel separation
- Power Draw: 3.2W idle; max 6.8W full channel loaded, fed via I/A rack backplane 24VDC
- Field Input Voltage Range: 15–60VDC, 120VAC/125VDC, 240VAC per variant rating
- Max Output Load Rating: 2A@60VDC, 5A@30VDC/120VAC/240VAC field contact drive
- Configurable Input Filter: 1ms–100ms software adjustable debounce for contact bounce suppression
The Real-World Problem It Solves
Mixed AC/DC field discrete points historically required splitting across separate low-voltage DI, high-voltage DI, AC DO, DC DO cards, eating excess rack slots and multiplying spare part inventory counts. Unisolated multi-channel I/O modules let ground surge on one shorted field channel crash an entire 16-point bank of tags.
Where you’ll typically find it:
- Fossil power boiler BMS cabinet: Flame scanner limit switches + purge air damper solenoid control
- Refinery MCC control rack: Motor starter auxiliary feedback + pump trip solenoid interlock outputs
- Offsite gas compressor skid: High/low pressure limit DI + recycle valve solenoid DO regulation
Single card design consolidates mixed voltage discrete points while per-channel isolation contains short-circuit damage to individual faulted channels only.
Hardware Architecture & Under-the-Hood Logic
This card carries onboard dedicated signal conditioning ASIC without shared channel logic; optocoupler barriers physically separate noisy field power from sensitive DCS backplane circuitry, no cross-channel leakage path.
- Incoming DI AC/DC field voltage crosses opto-isolator to convert raw field potential into 5V logic levels for onboard sampling
- Software-set RC filter circuit suppresses mechanical contact bounce before register storage of input status
- Onboard buffer IC packages all 16 channel states and transmits data across I/A proprietary backplane to host FCP controller
- Inbound DCS output commands get latched locally then routed through isolated driver circuits to each DO field terminal
- Built-in fault detection flags overcurrent/short on individual output channel and reports diagnostic tag to HMI without disabling remaining working channels
Field Service Pitfalls: What Rookies Get Wrong
Techs swap FBM241C onto P0916 terminal base rated for FBM241D internal-powered input; mismatched power pinout blows card’s input fuse bank on first power-up.
- Field Rule: Match suffix (B/C/D) to corresponding designated P0916XX terminal assembly per OEM wiring schedule before seating card.
Overloading DO Channels Beyond Nameplate Continuous Current RatingStack multiple small solenoids on single DO output exceeding 5A max rating; internal trace overheats creating intermittent open output after weeks of cycling.
- Quick Fix: Split multi-solenoid loads across spare adjacent DO channels or install intermediate auxiliary relay for high inrush loads.
Ignoring Input Debounce Setting For Mechanical Switch InputsDefault 1ms filter setting leaves high-bounce limit switches generating spurious false DI trips in DCS; operators log random unplanned equipment fault alarms.
- Field Rule: Set filter to 10–20ms for mechanical contact inputs via I/A control configuration software during commissioning.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
