Customer Value & Operational Benefits

High-Density Field Control

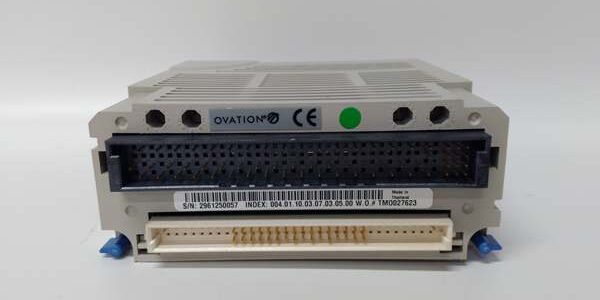

With 16 discrete outputs packed into a single Ovation card slot, the 1C31122G01 maximizes cabinet space efficiency. For large plants with hundreds of motors and solenoid valves, this high channel density significantly reduces the physical footprint of the I/O racks and simplifies backplane slot planning.

Enhanced Field Device Protection
The built-in electrical isolation is a massive operational safeguard. In harsh industrial environments (like a paper mill or wastewater plant), field wiring is prone to surges. This module acts as a firewall, absorbing field-side electrical faults and keeping the main DCS controller online and operational, preventing widespread plant outages.

Rapid Visual Diagnostics
Each of the 16 channels has a dedicated status LED right on the module faceplate. During commissioning or troubleshooting, a technician can instantly see which outputs are energized without needing to pull up a laptop or navigate through HMI graphics. This drastically cuts down the time required to verify logic sequences or track down a stuck valve.

Field Engineer’s Notes (From the Trenches)

Watch Your Field Power and Fusing: The 1C31122G01 provides the switching path, but you must ensure your external 24VDC field power supply is clean, properly grounded, and adequately fused. A common rookie mistake is daisy-chaining the common return wires for all 16 channels with undersized wire. If multiple high-current solenoids fire at once, you can get significant voltage drop or ground bounce, causing erratic behavior. Always use a properly sized, fused terminal block for your field power commons, and double-check that your total current draw across all 16 channels doesn’t exceed the module’s internal bus limits.

Real-World Applications

• Power Plant Motor Control Centers (MCC): Used to send start/stop commands to critical auxiliary motors, such as condensate pumps or forced draft fans. The module’s isolation ensures that the massive inrush current from starting a 500HP motor doesn’t disrupt the delicate DCS logic processors.
• Water & Wastewater Treatment Valve Automation: Manages the automated opening and closing of chemical dosing valves and flow diverters. The 16-channel density is perfect for controlling an entire skid or process unit from a single I/O card, simplifying the control architecture.

High-Frequency Troubleshooting FAQ

What do the LED indicators on the 1C31122G01 signify?
Each of the 16 channels has a corresponding LED. A lit LED indicates that the Ovation controller is commanding that specific output to be “ON” (closed circuit). If the LED is lit but the field device (e.g., a relay or valve) isn’t actuating, the issue is almost certainly in the field wiring, the external 24VDC power supply, or a blown external fuse—not the card itself.

Can the 1C31122G01 be hot-swapped?
Yes, Ovation I/O modules are designed for hot-swapping. You can replace a faulty 1C31122G01 while the system is powered up. However, be aware that during the brief moment the card is removed and re-initialized, all 16 outputs will go to their configured fail-safe state (usually de-energized). Ensure the connected equipment can handle a momentary loss of control signal before pulling the card.

Why is my output LED on, but I’m reading 0V at the terminal block?
First, verify your external field power supply is actually providing 24VDC to the module’s power terminals. The 1C31122G01 is a switch; if there is no external power coming in, there is no voltage going out, even if the logic is telling it to close. Second, check for a blown fuse in your external marshalling panel.

Commercial Availability & Pricing

Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
