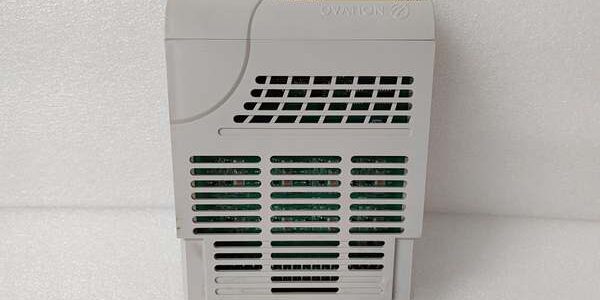

Customer Value & Operational Benefits

Superior Noise Immunity in Large Plants
By utilizing a 48VDC signaling standard, the 1C31234G01 offers significantly better noise immunity than standard 24VDC input cards. In electrically noisy environments like turbine halls or near large variable frequency drives (VFDs), this prevents nuisance trips and false readings caused by electromagnetic interference (EMI), ensuring the control system only reacts to genuine field events.

High-Density Status Monitoring
Fitting a high number of discrete inputs into a single Ovation card slot maximizes cabinet space efficiency. For facilities with thousands of alarm points, motor statuses, and valve position switches, this high channel density reduces the physical footprint of the I/O racks and simplifies backplane slot planning.

Rapid Visual Diagnostics
Each channel features a dedicated status LED right on the module faceplate. During commissioning or troubleshooting, a technician can instantly see which field contacts are open or closed without needing to pull up a laptop or navigate through HMI graphics. This drastically cuts down the time required to verify interlock sequences or track down a faulty limit switch.

Field Engineer’s Notes (From the Trenches)

Respect the 48VDC Power Rail and Wet vs. Dry Contacts: Because this is a 48VDC-native card, you must ensure your external field power supply is clean, properly grounded, and adequately fused. A common mistake is mixing up dry contact and wet contact wiring. If you are wiring a dry contact (like a simple pushbutton), the module provides the sensing voltage. If you are wiring a wet contact (where the field device already has 48VDC on it), ensure the polarities match exactly. Also, double-check that your total current draw across all active channels doesn’t exceed the module’s internal bus limits, and always use shielded twisted-pair cable for long runs to take full advantage of the card’s noise immunity.

Real-World Applications

• Power Plant Switchyard & Breaker Monitoring: Used to monitor the open/closed status of high-voltage circuit breakers and disconnect switches. The 48VDC signaling is highly reliable over the long cable runs typically required to get from the control house to the outdoor switchyard, preventing false breaker status alarms.
• Boiler Safety Interlocks & Pressure Switches: Manages critical safety inputs, such as high-pressure steam trips or low-water-level cutoffs. The module’s fast response time and optical isolation ensure that these vital safety signals are registered by the DCS immediately and without interference from the heavy electrical equipment in the boiler feed pump room.

High-Frequency Troubleshooting FAQ

What do the LED indicators on the 1C31234G01 signify?
Each channel has a corresponding LED. A lit LED (typically green) indicates that the field contact is closed (logic state 1). If the LED is lit but the DCS logic isn’t reacting, the issue is likely a software mapping error or a forced value in the controller. If the LED is off but you measure 48VDC at the terminal block, check your wiring polarity or suspect a blown internal channel fuse/opto-coupler.

Can the 1C31234G01 be hot-swapped?
Yes, Ovation I/O modules are designed for hot-swapping. You can replace a faulty 1C31234G01 while the system is powered up. However, be aware that during the brief moment the card is removed and re-initialized, the controller will see all inputs from this card as “bad” or “open.” Ensure your control logic is programmed to handle this temporary loss of input data gracefully (e.g., using hold-last-state logic) to avoid unintended process upsets.

Why am I getting intermittent input readings on long cable runs?
Even with 48VDC immunity, extremely long runs in high-EMI areas can pick up noise. First, verify that your cable shield is properly grounded at one end only (usually the cabinet side) to prevent ground loops. If the issue persists, use the Ovation software to enable or adjust the software-based input debounce filter, which can smooth out rapid, erratic signal chatter from aging mechanical switches.
