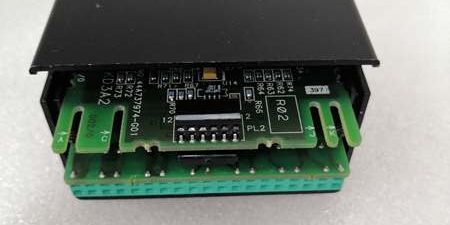

Field Engineer’s Notes (From the Trenches)
The “Gotcha” is 24V DC Field Power & Sourcing Wiring.
Field Power (V+, COM) on Terminal Base: The MDL740 does NOT generate its own 24V DC. You MUST land:
- +24V DC Supply Positive → Terminal Base V+ (or marked “+V”) screw terminal — one per group or jumper all V+ terminals on the base if your supply has capacity.
- 0V DC (DC Return) → Terminal Base COM (or “0V”) screw terminal — same advice, land/jumper.
If the 24V supply is off or the V+ terminal is loose, the “Unit OK” LED may still be Green (Bus-powered logic alive) but outputs won’t fire and “Fuse” status may erroneously set for groups.
Sourcing (This Block): Output terminal goes +24V when ON. Wire: Output terminal → Load +24V side; Load 0V side → DC Supply 0V Return (which should be tied to the Terminal Base COM).
Wrong way:Landing 0V to the output and +24V to the load (that’s Sinking/NPN wiring — won’t work, may damage if forced).
Inductive Loads (Solenoids/Relay Coils): Always install a flyback diode across the load(Cathode to +24V side of load, Anode to 0V side). The MDL740 has output protection, but a 2A inductive spike on a 0.5A point ages the FET prematurely. If a point fails “stuck ON” after a solenoid short-to-ground, check for missing diode.
Genius Bus Termination: If this is the first or last physical device on the Genius Bus daisy chain, ensure the 50Ω Terminator is plugged in (or DIP enabled if the BIU/block has it). Forgetting termination causes “I/O Enabled” LED OFF or flickering, and intermittent station loss — especially in electrically noisy areas.
Real-World Applications
- Bottling Line Divert Arms (24V DC Solenoids): 2 × blocks distributed along the conveyor line, each driving 16 x 24V DC pneumatic solenoid valves (0.3A each). The Genius Bus runs the full 300 ft line. A shorted coil on Block 1, Group 4 only killed those 4 outputs; the other 28 outputs kept the line running. Hot-swapped the faulty solenoid during a flavor change without stopping the line.
- Chemical Injection Skid (Pump Start/Stop & Alarm Lights): One in a NEMA 4X box at the skid. Outputs 1-8 drive 24V DC pilot relays for chemical metering pumps; Outputs 9-12 drive stack lights (Run / Fault / Low Level / Local Mode). The block is powered from the skid’s 24V DC supply, which also powers the IC670ALG230 analog inputs on the same Genius Bus station.
High-Frequency Troubleshooting FAQ
Q: “Unit OK” LED Green, but “I/O Enabled” LED OFF and outputs won’t turn on.
A: Config Mismatch or 24V DC Field Power Missing.
- Check the Station Number — does it match the BIU’s I/O table? A mismatch keeps “I/O Enabled” dark.
- Verify 24V DC at V+ and COM terminals on the Terminal Base. If V+ < 18V DC or open, outputs are inhibited (some revisions light “Fuse” per group instead).
- If using a new block to replace a failed one, ensure the BIU has downloaded the config to it (Auto-Config or via HHP “Send Config”). A blank block shows “Unit OK” but “I/O Enabled” stays OFF.
Q: “Fuse” LED On (or BIU reports Fuse Blown for a group), those 4 outputs dead, others OK.
A: Group Short or Overload.
- The electronic fuse tripped. Turn the outputs in that group OFF via PLC (or power-cycle the block to reset electronic fuse — note: some require the BIU to re-enable after clearing fault).
- Find the Short: Disconnect field wires from the 4 Output terminals of the faulted group.
- Command the group ON again via force. If Fuse indicator stays Off → short is in field wiring. Reconnect one wire at a time to find culprit.
- If Fuse LED immediately re-illuminates with no field wires connected→ module group driver damaged (rare; swap block).
Q: Output LED (if present) ON but solenoid/relay doesn’t energize.
A: Missing 0V Return or Wiring Polarity.
- Check the Terminal Base COM (0V) terminal — is the DC supply 0V landed and tight?
- Verify wiring: Output terminal → Load +24V side; Load 0V side → DC Supply 0V Return (which should be tied to Terminal Base COM). If you wired Load between Output and another+24V source (not through the module), the module can’t switch it.
- Measure voltage across the load when output is ON — should be ~24V DC. If 0V across load but Module Output-to-Base COM = 24V → load is open (bad coil / broken wire).
