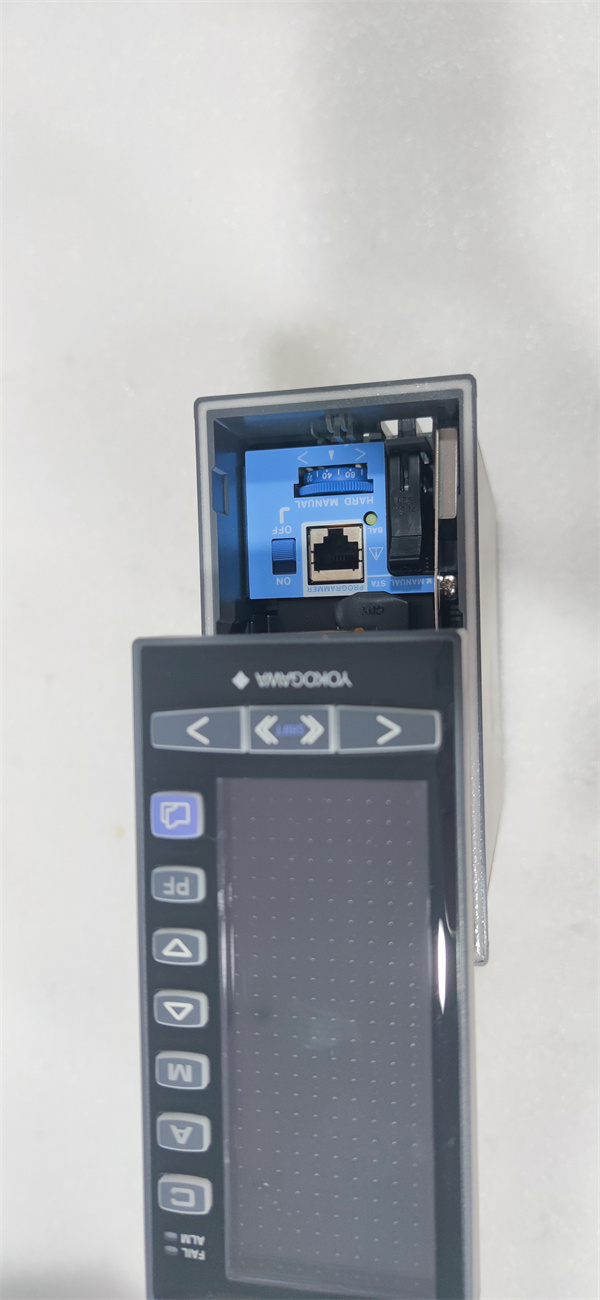

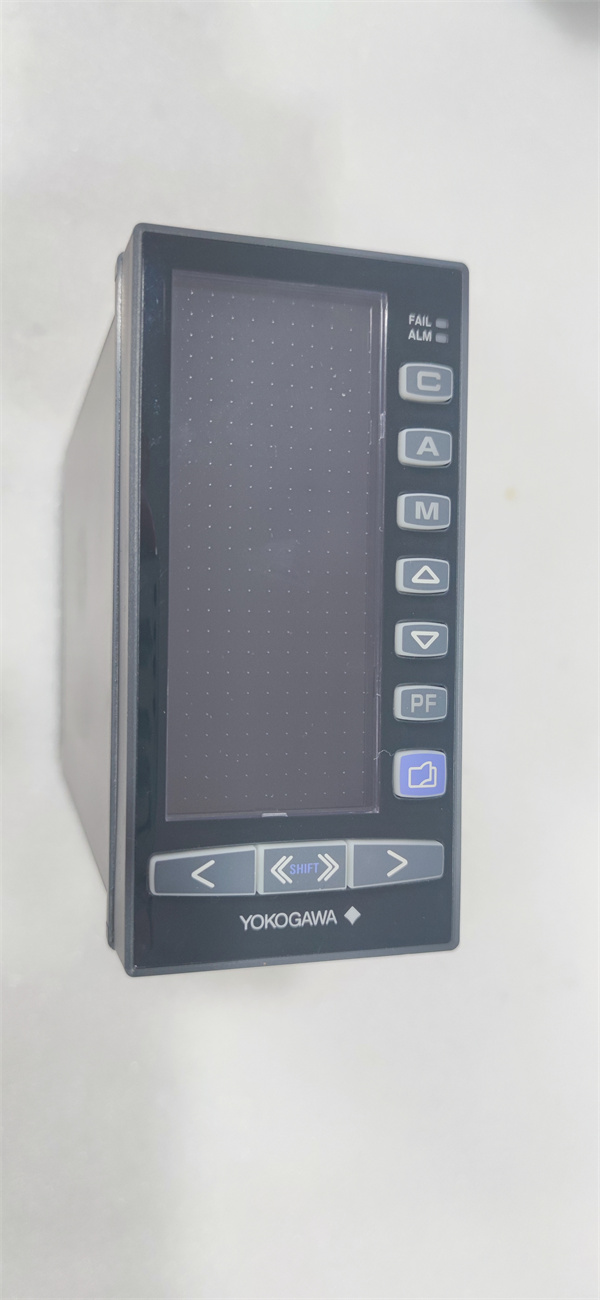

YOKOGAWA YS1700-100/A06/A31 Product Overview
The YOKOGAWA YS1700-100/A06/A31 is a high-performance digital indicating controller designed for precise process control and monitoring in industrial automation systems. This advanced unit combines PID control, data acquisition, and communication capabilities in a compact, user-friendly package.
Key Features
✔ Dual display for PV and SV monitoring
✔ Advanced PID control algorithm
✔ Multiple input types (TC, RTD, mV, V, mA)
✔ Communication options (RS-485, Ethernet)
✔ Programmable relay outputs
Technical Specifications
| Parameter | Specification |
| Model | YS1700-100/A06/A31 |
| Manufacturer | YOKOGAWA |
| Type | Digital Indicating Controller |
| Input Types | TC (J/K/T/E), RTD (Pt100), 4-20mA, 0-10V |
| Control Output | Relay, SSR, or 4-20mA |
| Accuracy | ±0.3% of span ±1 digit |
| Display | Dual 4-digit LED (PV/SV) |
| Control Algorithm | PID with auto-tuning |
| Communication | RS-485 (Modbus RTU) |
| Power Supply | 100-240V AC or 24V DC |
| Operating Temp. | 0°C to +50°C |
| Dimensions | 48mm × 48mm × 110mm |

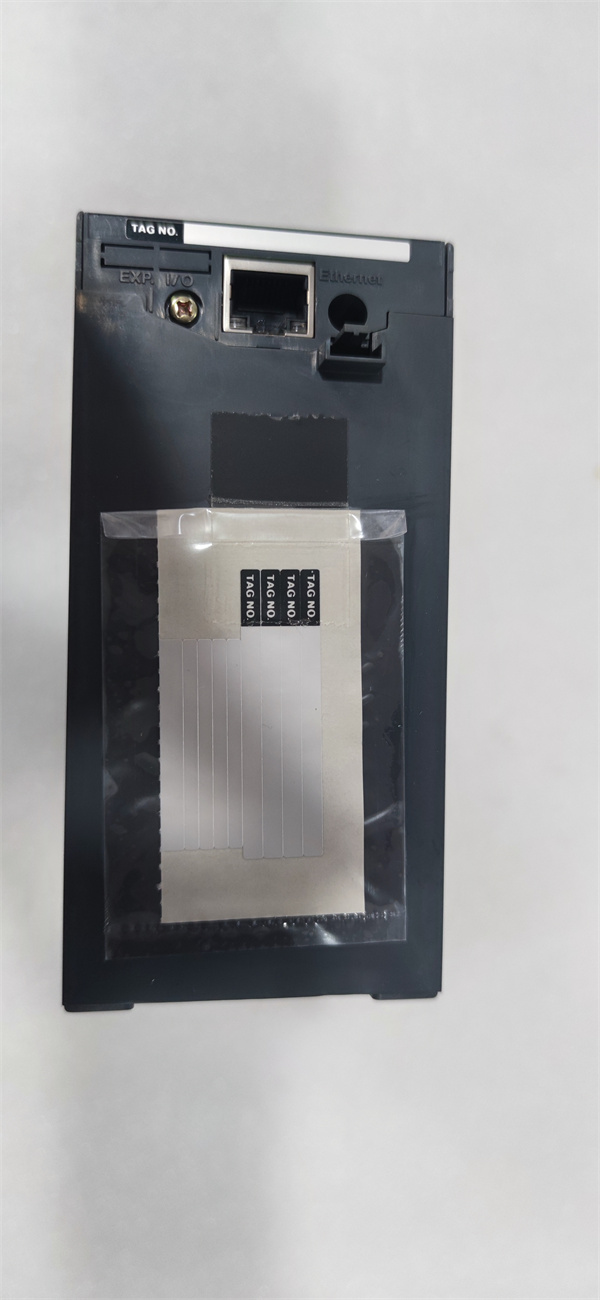

YOKOGAWA YS1700-100/A06/A31
Main Features & Advantages
1. Precise Process Control
Advanced PID algorithm with auto-tuning
Multi-segment ramp/soak programming
Feedforward control capability
2. Flexible Configuration
Universal input accepts various sensor types
Multiple output options (relay, SSR, analog)
Scalable alarm functions
3. Enhanced Connectivity
RS-485 communication for system integration
Optional Ethernet module
Remote monitoring/configuration capability

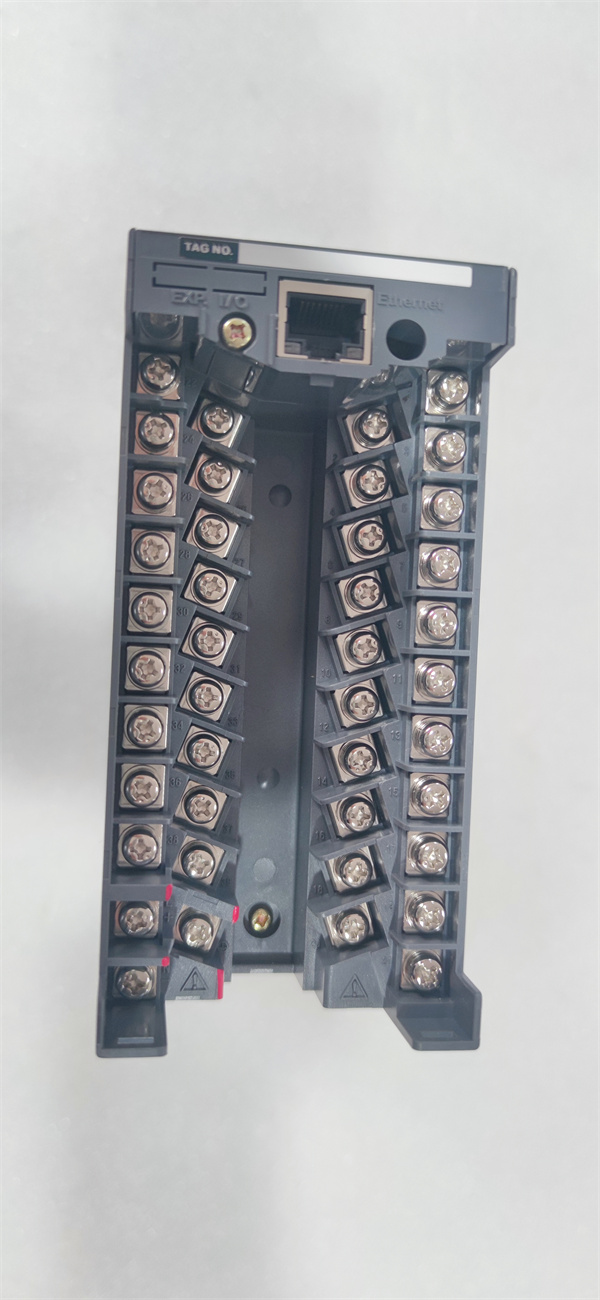

YOKOGAWA YS1700-100/A06/A31
Application Field
Process Industries
✔ Temperature control systems
✔ Pressure regulation
✔ Flow control applications
Manufacturing
✔ Industrial oven control
✔ Plastic molding machines
✔ Heat treatment systems
Building Automation
✔ HVAC control
✔ Energy management systems
Related Products
| Model | Description |
| YS1700-200 | Enhanced version with more I/O |
| YS1000 | Basic indicating controller |
| YTA320 | Temperature transmitter |
| UTAdvanced | Universal temperature controller |
Installation & Maintenance
Installation Guidelines
Panel cutout: 45mm × 45mm
Proper grounding required
Adequate ventilation around unit
Maintenance Recommendations
Annual calibration check
Periodic display inspection
Firmware updates as available
