Description
Product Overview
The YOKOGAWA ADV569-P00 represents a high-performance digital output module designed for mission-critical industrial automation applications. As part of Yokogawa’s renowned field control equipment lineup, this module delivers reliable switching capabilities for control systems requiring precise digital output signals. The ADV569-P00 integrates seamlessly with Yokogawa’s CENTUM VP and ProSafe-RS platforms, offering robust performance in demanding process control environments across industries such as oil & gas, petrochemical, and power generation.
Engineered for exceptional reliability, the ADV569-P00 features advanced channel-to-channel isolation and built-in diagnostics, ensuring safe operation even in electrically noisy industrial settings. Its modular design supports hot-swapping capability, allowing for maintenance and replacement without system shutdown. The module’s compact form factor and DIN rail mounting options make it ideal for space-constrained installations while maintaining Yokogawa’s signature durability in harsh operating conditions.
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | ADV569-P00 |
| Manufacturer | YOKOGAWA |
| Product Type | Digital Output Module |
| Output Channels | 16 channels |
| Output Type | Relay contact (Form A) |
| Contact Rating | 2A @ 30V DC / 0.5A @ 125V AC |
| Isolation | 1500V AC channel-to-channel |
| Response Time | ≤10 ms |
| Operating Temperature | -20°C to +60°C |
| Power Supply | 24V DC ±10% |
| Communication Protocol | Yokogawa proprietary (CENTUM VP compatible) |
| Mounting | DIN rail or panel mount |
| Dimensions | 45mm (W) × 130mm (H) × 120mm (D) |

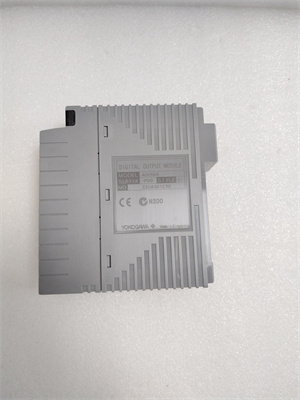

YOKOGAWA ADV569-P00
Main Features and Advantages
Reliable switching performance: The ADV569-P00 provides robust relay outputs capable of driving various field devices with its 2A contact rating. The electromechanical relays offer galvanic isolation, ensuring safe operation when controlling different voltage systems.
Advanced diagnostics: Each channel incorporates status monitoring that detects open load conditions and relay failures, enabling predictive maintenance and reducing unplanned downtime. The module’s LED indicators provide immediate visual feedback for each channel’s operational status.
System integration: Designed specifically for Yokogawa control systems, the ADV569-P00 offers seamless integration with CENTUM VP DCS, reducing engineering time and ensuring reliable communication. The module supports hot-swapping, allowing replacement without powering down the entire control system.
Durability in harsh environments: With its industrial-grade construction, the module operates reliably in wide temperature ranges and high-vibration environments. The robust enclosure provides protection against dust and electromagnetic interference.
Application Field
The YOKOGAWA ADV569-P00 excels in critical process control applications where reliable digital outputs are essential. In oil refineries, it controls solenoid valves and motor starters for process equipment. Petrochemical plants utilize the module for emergency shutdown systems and safety interlocks.
Power generation facilities employ the ADV569-P00 for turbine control sequences and auxiliary system operations. Water treatment plants use it for pump control and chemical dosing systems. The module’s high reliability makes it particularly suitable for safety instrumented systems (SIS) where fail-safe operation is paramount.

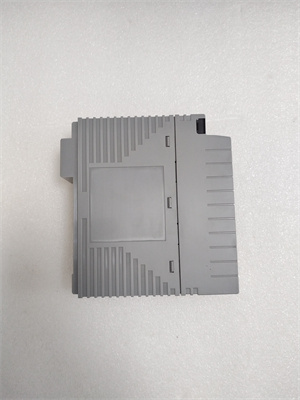

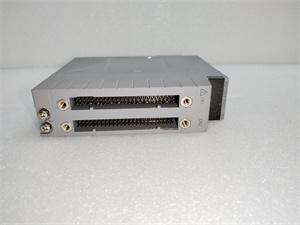

YOKOGAWA ADV569-P00YOKOGAWA ADV569-P00
Related Products
ADV569-P01: Enhanced version with higher contact rating (5A) for heavy-duty applications
ADV142: Digital input module for complementary signal acquisition
ADV559: Solid-state output module for high-speed switching requirements
AAI835-H50: Analog input module for complete signal processing solutions
ADM11B: Signal conditioning module for legacy system integration
ADV161: Compact 8-channel version for space-limited installations
Installation and Maintenance
Pre-installation preparation: Verify proper power supply specifications and ensure adequate ventilation space around the module. Check for compatibility with existing control system hardware and software versions. Confirm proper grounding to minimize electrical noise interference.
Maintenance recommendations: Perform periodic inspections of relay contacts and connection terminals. Monitor relay life expectancy based on switching cycles and electrical load. Utilize the module’s diagnostic features to identify potential issues before they affect operations. When replacing modules, follow Yokogawa’s hot-swap procedures to maintain system availability.
Product Guarantee
Yokogawa stands behind the ADV569-P00 with comprehensive warranty coverage and global technical support. The module undergoes rigorous quality testing to ensure reliable operation in critical control applications. Customers benefit from Yokogawa’s extensive service network, offering prompt technical assistance, firmware updates, and replacement services. The ADV569-P00 is designed and manufactured to meet international industrial standards, guaranteeing years of trouble-free operation in demanding process environments.
