Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | WESTINGHOUSE 5X00605G01 |
| Manufacturer | WESTINGHOUSE |
| Product category | Analog Input Module |
| Operating Voltage | 220 V AC |
| Input Channels | 8 |
| Input Range | -10V to +10V or 0mA to 20mA, 4mA to 20mA |
| Resolution | 12-bit |
| Accuracy | ±1% of full scale |
| Sampling Rate | 250 ms per channel |
| Communication Interface | Ethernet, Modbus RTU |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 170 mm × 90 mm × 60 mm |
| Weight | 0.5 kg |
| Certifications | CE, UL, CSA |
| Protection Class | IP20 |

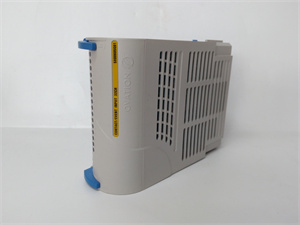

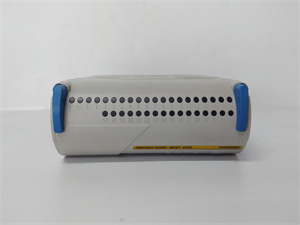

WESTINGHOUSE 5X00605G01
Product Introduction
The WESTINGHOUSE 5X00605G01 is a high-performance analog input module designed for use in industrial automation systems. It is part of the Ovation Distributed Control System (DCS) and provides precise measurement and conversion of analog signals from field devices into digital data for efficient process control.
Core Advantages and Technical Highlights
High Precision and Reliability
The WESTINGHOUSE 5X00605G01 features an 8-channel design with 12-bit resolution, ensuring minimal error margins and delivering critical data for efficient process control. It supports a wide range of input signals, including voltage and current, providing flexibility across different applications.
Advanced Communication Capabilities
This module supports multiple communication interfaces, including Ethernet and Modbus RTU, ensuring seamless integration with various control systems.
Robust Design for Harsh Environments
Constructed with high-quality materials, the WESTINGHOUSE 5X00605G01 can withstand extreme temperatures and humidity levels, making it suitable for harsh industrial conditions.
User-Friendly Design
The module features a user-friendly interface and intuitive setup process, saving time and effort during installation and maintenance.

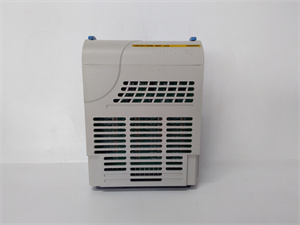

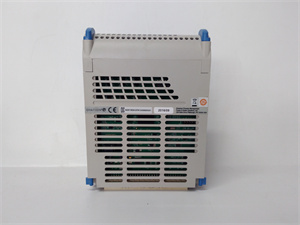

WESTINGHOUSE 5X00605G01
Typical Application Scenarios
The WESTINGHOUSE 5X00605G01 is widely used in industries requiring high reliability and precision, such as:
-
Manufacturing: Controlling production lines and robotic systems.
-
Oil & Gas: Ensuring safe and efficient operation in refineries and drilling platforms.
-
Power Generation: Real-time control of turbines and generating units.
-
Water Treatment: Managing water treatment processes and monitoring environmental parameters.
Related Model Recommendations
-
WESTINGHOUSE 5X00605G02: A compatible digital input module for various control applications.
-
WESTINGHOUSE 5X00605G03: An analog output module for precise control.
-
WESTINGHOUSE 5X00605G04: A digital output module for industrial automation.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the WESTINGHOUSE 5X00605G01, ensure the environment is free from excessive dust and moisture. Verify that the power supply matches the module’s requirements (220 V AC) and that the operating temperature range (-20°C to +60°C) is suitable for the installation location.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the WESTINGHOUSE 5X00605G01. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early.
Service and Guarantee Commitment
The WESTINGHOUSE 5X00605G01 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries.
