Description
System Role and Integration
The 5X00063G01 serves as the field interface and signal conditioning layer for HART analog output applications within the Ovation Distributed Control System architecture. As a Personality Module (PMOD), it mounts directly beneath the 5X00062G01 Electronics Module (EMOD) in standard Ovation I/O bases to create a complete eight-channel analog output solution capable of driving smart valve positioners, variable speed drives, and HART-enabled field actuators.
This module occupies a critical position in the Ovation I/O hierarchy by providing the essential boundary between the sensitive electronics of the EMOD and the harsh electrical environment of field wiring. While the 5X00062G01 contains the 14-bit D/A converters, HART modems, and microprocessor control, the 5X00063G01 supplies the current limiting, surge protection, and field termination infrastructure required for safe, reliable operation in industrial process environments.
Core Functionality and Signal Handling
The module provides eight independent analog output channel terminations, each equipped with user-serviceable fusing to protect against field wiring short circuits and overload conditions. It receives the multiplexed analog signals and HART digital data from the EMOD and routes them to field terminals, maintaining the integrity of both the 4-20mA current loop and the superimposed HART FSK (Frequency Shift Keying) communication signals.
The 5X00063G01 handles the physical connection of field wiring through screw terminals, providing secure termination points for the current loop connections to valve positioners, I/P converters, and smart transmitters. It distributes the shared +24VDC auxiliary power to all eight output channels while maintaining individual channel isolation and protection. The module supports load impedances ranging from 230 to 700 ohms, accommodating long cable runs to remotely located field devices without signal degradation.
HART communication signals pass through the PMOD transparently, allowing bidirectional digital communication between the Ovation controller and HART-enabled field devices at 1200 baud. The passive signal conditioning ensures that the HART digital signals superimposed on the analog current are not attenuated or distorted, maintaining reliable communication for device configuration and diagnostics.
Platform Heritage and Operational Benefits
As a component of the Emerson Ovation platform originally developed by Westinghouse, the 5X00063G01 reflects the modular EMOD/PMOD architecture that maximizes application flexibility while minimizing spare parts inventory. This design philosophy allows the same 5X00062G01 EMOD to serve diverse applications through appropriate personality module selection, though the 5X00063G01 is specifically matched to the HART analog output function.
The individual channel fusing provides critical protection for the expensive EMOD electronics—if a field wiring fault or device failure causes an overcurrent condition, the PMOD fuse clears instead of damaging the D/A converter or HART modem on the EMOD. This protection architecture ensures that field-side faults result in replacement of the relatively inexpensive PMOD rather than the complex electronics module, reducing maintenance costs and mean time to repair (MTTR).
The module’s terminal block design facilitates field wiring without requiring specialized tools, while clear channel labeling and fuse accessibility simplify troubleshooting during commissioning and maintenance outages. The rugged construction withstands the vibration, temperature cycling, and electrical noise characteristic of power plant control rooms and process unit field enclosures.

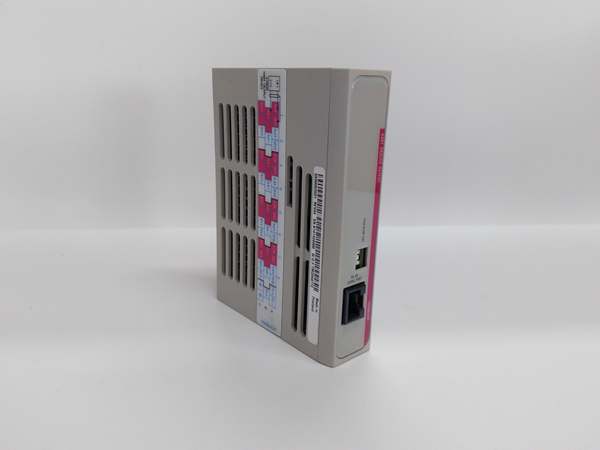

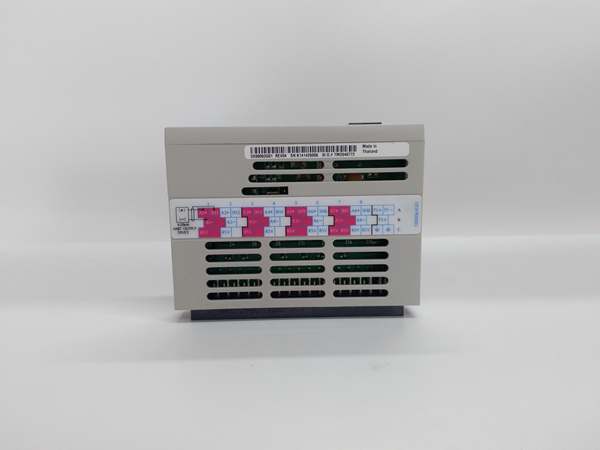

5X00063G01
Part 4: Technical Specifications
-
Model Number: 5X00063G01
-
Manufacturer: Westinghouse Electric Corporation (Emerson Ovation product line)
-
Product Type: HART Analog Output Personality Module (HAO PMOD)
-
Compatible Electronics Module: 5X00062G01 (HART Analog Output EMOD)
-
Number of Channels: 8 analog output channels (matches EMOD capacity)
-
Channel Protection: Individual user-serviceable fuses per channel
-
Load Impedance Range: 230 Ω minimum to 700 Ω maximum
-
Output Signal: 4-20 mA with HART FSK superimposed (Bell 202)
-
HART Pass-Through: Transparent HART signal transmission to field devices
-
Field Termination: Screw terminal blocks for 4-20mA loop wiring
-
Power Distribution: Shares +24VDC auxiliary supply to all channels
-
Isolation: Maintains EMOD-provided isolation (1000V channel-to-logic)
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
-
Storage Temperature: -25°C to 70°C
-
Humidity: 0% to 95% RH (non-condensing)
-
Mounting: Standard Ovation I/O base, installs beneath 5X00062G01 EMOD
-
Dimensions: Standard Ovation PMOD form factor (approximately 12.7 cm × 2.5 cm × 9.5 cm)
-
Weight: <0.2 kg (0.4 lbs)
-
Field Wiring: Braid-shielded cable recommended, grounded at cabinet entry
-
Certifications: CE Mark variants available (verify specific model suffix)
Part 5: Core Features & Customer Value
Individual Channel Protection: Each of the eight output channels features independent user-serviceable fusing that protects the expensive EMOD electronics from field wiring faults. For maintenance managers, this means that short circuits in field cables or failed valve positioners result in replacement of an inexpensive fuse or PMOD rather than the complex 5X00062G01 electronics module, reducing spare parts costs by 60-70% for typical field fault scenarios.
HART Signal Integrity: The module maintains transparent pass-through of HART digital communication signals superimposed on the 4-20mA analog output. This preserves the bidirectional communication capability essential for smart valve diagnostics, remote configuration, and asset management—ensuring that field technicians can access device information from the control room without compromising the integrity of the control signal or requiring additional communication wiring.
Flexible Load Capability: The 230-700 ohm load range accommodates diverse field device requirements—from locally mounted I/P converters with short cable runs to remotely located valve positioners thousands of feet away. Engineers can standardize on a single analog output module pair for both local control room applications and remote field installations without calculating voltage drops or specifying different hardware for long cable runs.
Modular Replacement Strategy: The separation of the PMOD from the EMOD allows rapid field replacement of the personality module for fuse replacement or wiring modifications without disturbing the EMOD configuration. If lightning or switching transients damage the field termination circuitry, technicians swap the 5X00063G01 in minutes while the EMOD retains its calibration data and control strategy configuration, minimizing process downtime during critical maintenance windows.
Simplified Field Wiring: The screw terminal block design provides secure, vibration-resistant connections for 4-20mA loop wiring without requiring crimping tools or specialized connectors. Clear terminal labeling corresponding to each of the eight channels reduces wiring errors during commissioning, while the compact form factor optimizes terminal density within crowded control cabinets common in power plant and petrochemical applications.

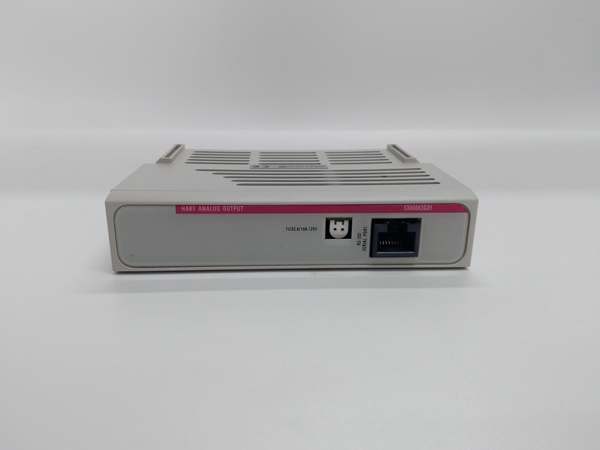

5X00063G01
Part 6: Typical Applications
Smart Valve Positioner Control: The 5X00063G01 is extensively deployed in oil refineries, chemical plants, and power generation facilities to interface with HART-enabled valve positioners. In these applications, the module provides the fused 4-20mA connection to digital valve controllers while maintaining the HART communication path for partial stroke testing, valve signature analysis, and predictive maintenance diagnostics—critical for safety instrumented systems requiring valve health verification without process interruption.
Variable Speed Drive Speed Reference: In water treatment plants and HVAC systems, the module connects to variable frequency drives (VFDs) providing analog speed references while using HART communication to monitor drive status and energy consumption. The individual channel fusing protects against VFD input faults, while the high load capability accommodates the input impedance of large industrial drives without additional load resistors.
Turbine Auxiliary Control: Within power generation turbine control cabinets, the module provides the field interface for controlling auxiliary steam valves, lubricating oil temperature control valves, and hydrogen seal oil pressure regulators. The fused channels protect against wiring faults in the vibration-intensive turbine hall environment, while the HART capability supports automated valve testing required for turbine safety system certification.
Reactor Control and Chemical Injection: Chemical processing facilities utilize the module to control chemical metering pumps and injection valves in reactor applications. The 4-20mA precision control enables accurate chemical dosing for pH control or catalyst injection, while the HART overlay provides pump stroke feedback and health diagnostics. The individual fusing ensures that a single pump failure does not disable multiple injection points, maintaining process safety.
Custody Transfer and Batch Control: In petroleum pipeline and batch processing applications, the module drives control valves and flow controllers where precise analog positioning determines product quality and transfer accuracy. The HART communication enables retrieval of valve travel history and friction data for custody transfer verification, while the modular design facilitates rapid replacement during scheduled maintenance windows to minimize production losses.
