Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1C31122G01 |
| Manufacturer | Westinghouse |
| Product Category | Digital Output Module |
| Operating Voltage | 24 VDC |
| Output Frequency | 30 kHz |
| Number of Channels | 16 channels |
| Output Current | 1 A per channel |
| Output Voltage Range | 5-60 VDC |
| Communication Interface | Modbus RTU/TCP |
| Operating Temperature Range | -20°C to +55°C |
| Storage Temperature Range | -40°C to +70°C |
| Dimensions (L×W×H) | 12.1 cm × 5.1 cm × 16.6 cm |
| Weight | 0.35 kg |
| Protection Level | Industrial Grade |

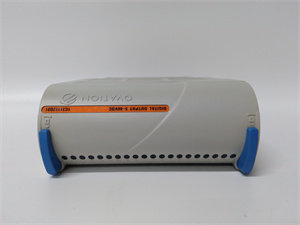

Westinghouse 1C31122G01
Product Introduction
The Westinghouse 1C31122G01 is a high-performance digital output module designed for industrial automation and control systems. It is part of the Westinghouse Ovation series and is engineered to provide precise and efficient control in demanding environments. This module is ideal for applications requiring reliable digital signal transmission and control, such as manufacturing lines, power plants, and process control systems.
Core Advantages and Technical Highlights
High Reliability and Precision: The Westinghouse 1C31122G01 features 16 digital output channels, each capable of handling up to 1 A at a voltage range of 5-60 VDC. It ensures precise control and stable operation, even in harsh industrial conditions.
Wide Operating Range: The module operates reliably within a wide temperature range of -20°C to +55°C, making it suitable for diverse industrial settings. It also supports a wide operating voltage range (5-60 VDC), ensuring compatibility with various power supplies.
Advanced Communication Capabilities: The 1C31122G01 supports Modbus RTU and TCP communication protocols, facilitating seamless data exchange and integration with other system components.
Compact and Durable Design: With dimensions of 12.1 cm × 5.1 cm × 16.6 cm and a weight of 0.35 kg, the module is compact and lightweight, making it easy to install and integrate into existing systems. Its industrial-grade construction ensures long-lasting performance and minimal maintenance requirements.
Fast Response Time: The module has a high output frequency of 30 kHz, enabling fast response times and real-time control capabilities.

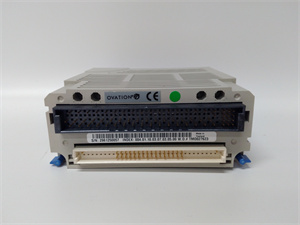

Westinghouse 1C31122G01
Typical Application Scenarios
The Westinghouse 1C31122G01 is widely used in various industrial sectors, including power generation, manufacturing, and process control. In power plants, it controls critical equipment such as valves and motors, ensuring reliable operation and reducing downtime. In manufacturing facilities, the module provides precise control of production processes, enhancing efficiency and productivity. Its ability to handle high-frequency signals and provide real-time control makes it an essential component in modern industrial control systems.
Related Model Recommendations
-
1C31125G02: A related digital output module with similar features, offering enhanced functionality and compatibility with advanced control systems.
-
1C31129G03: An upgraded version with additional diagnostic features, suitable for applications requiring enhanced monitoring and troubleshooting.
-
1C31124G01: A digital input/output module with similar capabilities, providing versatile control options for industrial automation.
-
1C31129G02: A variant with extended temperature range and higher load capacity, suitable for harsh industrial environments.
-
1C31125G03: A high-capacity digital output module, ideal for large-scale industrial applications requiring multiple output channels.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the Westinghouse 1C31122G01, ensure the environment meets the specified temperature and humidity requirements. Prepare the necessary tools, such as a screwdriver and multimeter, and ensure the installation area is free from dust and moisture. Follow the provided installation manual carefully to ensure proper grounding and connection of the module. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the 1C31122G01 for signs of damage or wear, such as loose connections or corrosion. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, such as signal errors or communication failures, consult the troubleshooting guide or contact a professional for assistance. Replace any damaged components promptly to maintain optimal performance and reliability.
Service and Guarantee Commitment
The Westinghouse 1C31122G01 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company guarantees the quality of the product, providing a refund or replacement for any manufacturing defects within the warranty period. We offer 24/7 technical support to assist with installation, troubleshooting, and maintenance. Our commitment to quality and customer service ensures that the 1C31122G01 will deliver reliable performance for years to come.
