Description
Product Overview

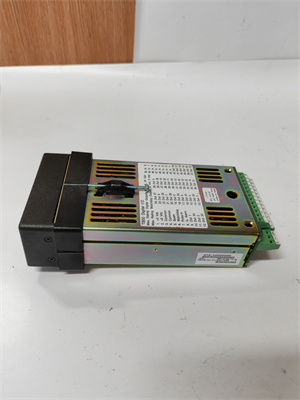

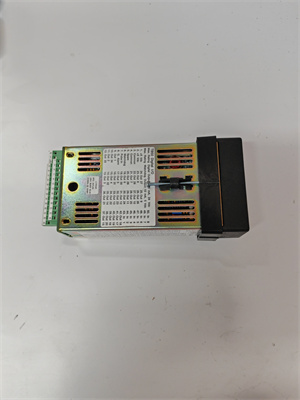

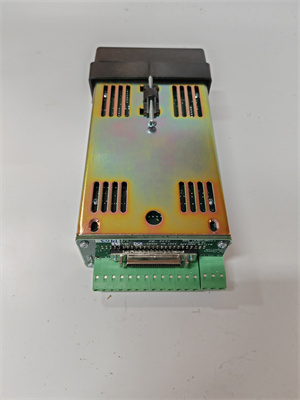

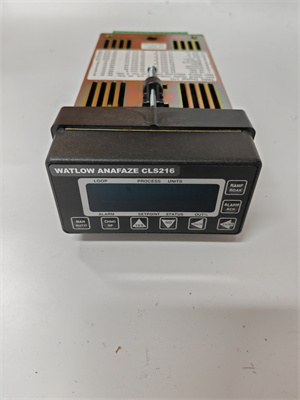

The WATLOW CLS216 is a high-performance, programmable temperature controller designed for precise thermal management in industrial processes. It features dual-loop control capability and delivers ±0.1°C stability with 24-bit resolution, making it ideal for applications requiring high precision and reliability。
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | WATLOW CLS216 |
| Manufacturer | Watlow |
| Series | CLS200 Programmable Controllers |
| Control Outputs | 2 (SSR/Relay/Analog) |
| Input Types | RTD/TC/mA/V |
| Resolution | 24-bit (±0.01°C) |
| Accuracy | ±0.1°C or ±0.1% FS |
| Control Algorithm | Auto-Tune PID |
| Communication | Modbus TCP/IP, EtherNet/IP |
| Display | 4.3″ Color TFT (800×480) |
| Power Supply | 24VDC ±10% |
| Operating Temp | -20°C to +55°C |
| Certifications | CE, UL, cUL |
WATLOW CLS216
Main Features and Advantages
Advanced Thermal Control: The CLS216’s predictive PID algorithm with a 100ms sampling rate prevents overshoot in injection molding barrel temperature control. Its dual-setpoint capability allows automatic switching between heating/cooling profiles during polymer extrusion processes。
Connectivity: Built-in OPC UA server enables direct data exchange with SCADA systems without additional gateways。The web interface supports remote recipe management for multi-batch chemical reactors。
Durability: Military-grade components ensure 100,000+ operation cycles in metal heat treatment furnaces。The front panel’s IP66 rating protects against high-pressure cleaning in dairy processing lines。
WATLOW CLS216
Application Field
The WATLOW CLS216 is widely used in various fields, including:
Semiconductor: CVD chamber temperature regulation (±0.5°C uniformity)。
Pharma: Lyophilizer shelf temperature control (GMP compliant)。
Food: Retort sterilization process monitoring (FDA 21 CFR Part 11)。
Plastics: Extruder multi-zone thermal management。
Glass Manufacturing: 50-program/250-step sequence capability precisely controls annealing oven ramps。
Related Products
WATLOW CLS204/CLS208: Other models in the CLS200 series with different configurations and capabilities。
WATLOW F4T: Touchscreen HMI companion。
Installation and Maintenance
Installation Preparation: Verify supply voltage stability (±5%) before mounting the CLS216 near high-frequency inverters。Use shielded twisted pairs for thermocouple connections in EMI-intensive environments。
Maintenance Recommendations: Calibrate input channels annually using traceable standards (NIST/IEC 60751)。Clean ventilation slots quarterly in dusty environments using low-pressure air。
Product Guarantee
Watlow provides a 12-month warranty with lifetime technical support for the CLS216 controllers。Each unit undergoes 500-hour burn-in testing, including thermal cycling (-40°C to +85°C)。
