Manufacturer: Modules Part number: TRICONEX DO3401
Our extensive Modules catalogue, including
: TRICONEX DO3401
, is available now for dispatch to the worldwide.
Brand: Triconex
The listed price is not final; the actual selling price is negotiable based on current market conditions.
Diagnostics: Short circuit, open load, field power loss detection
Operating Temp: -40°C to +70°C; Storage: -40°C to +85°C
Power: 24VDC backplane, ~4.2W
Dimensions: 220 × 44 × 169mm; Weight: ~1.5kg
Product Introduction
TRICONEX is a TMR digital output module for Tricon SIS, built to drive 24VDC safety-critical devices like solenoid valves, motor starters, and ESD actuators. It executes safety logic commands in high-risk processes, ensuring reliable fault-tolerant switching.
The unit’s 2oo3 voting eliminates single-point failures, while self-limiting current and channel diagnostics protect against field faults. Hot-swap capability enables online replacement without shutdown.
QA & Testing SOP (Transparency Building)
Incoming Inspection: Verify hologram, serial number, and lot code against TRICONEX databases; check for bent pins, cracked casing, or burned terminals; validate anti-counterfeit markers.
Live Testing: Insert into Tricon v10+ chassis; establish TriStation comms; inject 24VDC loads (solenoid coils); validate on/off control, fault detection (short/open), and 2oo3 voting.
Electrical Testing: Use Fluke 115 to confirm 24VDC draw (~4.2W); verify output current limiting <4.8A; check isolation resistance >10MΩ.
Firmware/Config Backup: Record firmware rev (e.g., v5.1.2); photograph DIP switch settings; save channel config and voting parameters.
Final QC & Packaging: Seal in anti-static bag; apply tamper-evident QC tag; include test report; ship in shock-absorbent, climate-controlled packaging.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Overcurrent Damage: Exceeding 4.8A per channel burns output transistors. Use external fusing (3A) per channel; avoid parallel loads.
❗ Ground Loop Noise: Common-grounded design requires single-point field grounding. Isolate field grounds from system ground to prevent false trips.
❗ Hot-Swap on Old Chassis: Hot-swap fails on v9 or older backplanes. Verify chassis v10+; power down legacy systems before replacement.
❗ ESD Risk: Unprotected handling destroys TMR logic ($2000+ repair). Use grounded ESD strap and mat; never touch backplane connectors.
❗ Voltage Mismatch: Applying <15VDC or >30VDC causes erratic operation. Confirm field voltage is 24VDC ±20%.
4-Step Replacement Guide:
Pre-install: Wear ESD gear; verify firmware rev and switch settings; check field voltage and fusing.
Removal: Release front latch; pull module straight out (do not twist).
Install: Align rails; push firmly until latch clicks; torque terminals to 0.8Nm.
Power-on Test: Restore power; check LED status (green = healthy); run TriStation diagnostics to confirm all channels and voting logic.

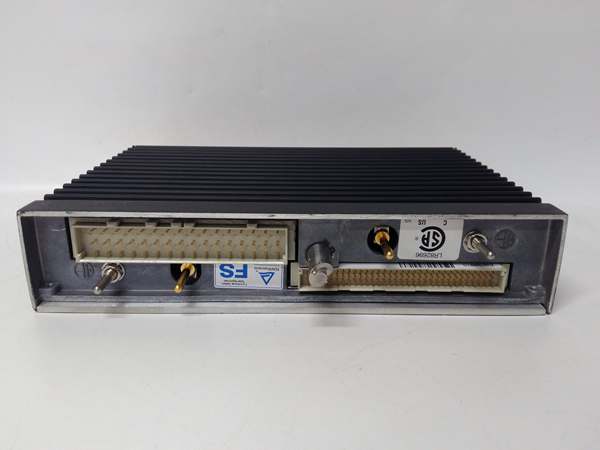

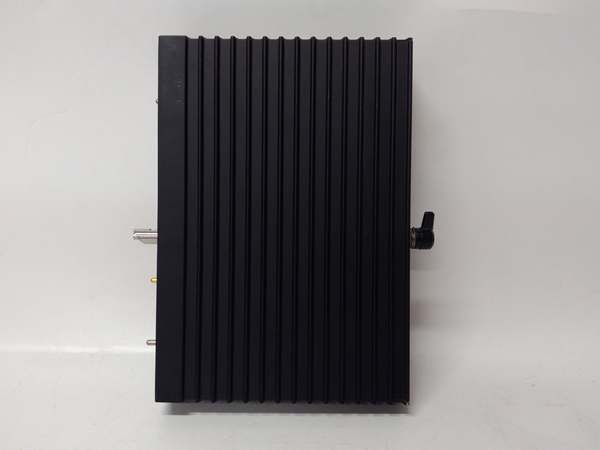

Triconex DO3401
FAQ
Q: What is the price range for this unit?A: New original units range from 3100–3900 USD. Surplus/refurbished units cost 1600–2200 with 6-month warranties.
Q: Does it support hot-swapping?A: Yes, on Tricon v10+ chassis. Not supported on v9 or older; doing so risks backplane voltage spikes and damage.
Q: What warranty is included?A: New original units include a 12-month OEM warranty. Extended 3–5 year warranties are available via Schneider Electric.
Q: Is obsolete? What’s the replacement?A: Not EOL; it’s the standard 16-channel TMR DO for Tricon SIS. No direct replacement; always source the exact model.
Q: Will configuration be lost on replacement?A: No, config is stored in the chassis. Firmware must match the chassis; config auto-downloads on power-up.
Q: Can it drive inductive loads like solenoids?A: Yes, but use freewheeling diodes across coils to absorb voltage spikes and extend module life.
Q: What’s the maximum cable length?A: 800m for 24VDC signals (16AWG shielded cable); limit to 400m in high-EMI areas.
