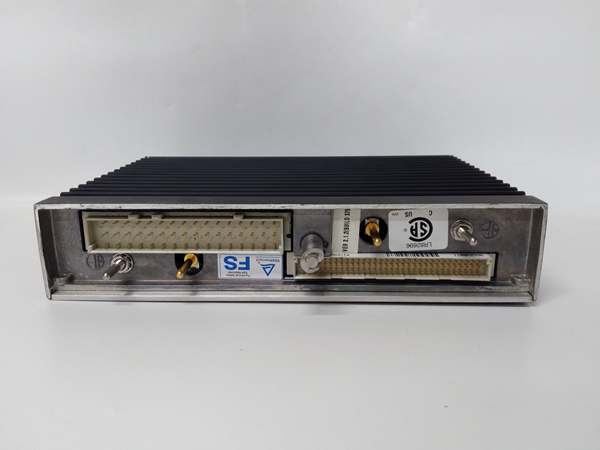

TRICONEX CM3201 | TMR Communication Module In Stock

• Description

Key Technical Specifications

• Architecture: Triple Modular Redundancy (TMR), 2oo3 voting; redundant communication support
• Ports:
  • Ethernet: 2×10/100 Base-T (Modbus TCP/IP, TSAA, Peer-to-Peer, SNTP)
  • Serial: 3×RS-232/485 software-selectable (Modbus RTU, 460.8 kbps max)
• Power: 24VDC (19.2–30VDC range); ≤8W consumption
• Safety Rating: IEC 61508 SIL3; FM, CSA, ATEX certified
• Operating Temp: -40°C to +70°C; storage -40°C to +85°C
• Dimensions: 220×169×44mm; weight ~1.5kg
• Diagnostics: Per-port status LEDs; link/activity, fault, and redundancy indicators
• Protocols: Modbus TCP/RTU (master/slave), TriStation, TSAA, SNTP, TCP/IP, UDP/IP

Product Introduction

TRICONEX is a high-performance communication module for Tricon TMR safety instrumented systems (SIS). It acts as a dedicated gateway, connecting the safety controller to external networks and devices while maintaining strict safety isolation.

The module provides dual Ethernet ports for high-speed plant network integration and three software-configurable serial ports for legacy device connectivity. Its TMR architecture ensures no single point of failure, while redundant port configuration enables fault-tolerant communication paths. Certified for SIL3 applications, is ideal for oil/gas, chemical, and power industries requiring reliable, real-time data exchange between safety and control systems.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Verify part/serial numbers against Schneider records; inspect casing, connectors, and pins for damage; validate anti-counterfeit labels.
2. Live Testing: Install in Tricon chassis; apply 24VDC and verify power/status LEDs; test all ports with loopback and protocol simulation.
3. Protocol Validation: Confirm Modbus TCP/RTU master/slave operation; verify TSAA and peer-to-peer communication with TriStation.
4. Redundancy Test: Configure dual redundancy; simulate network faults to confirm seamless failover.
5. Final QC & Packaging: Place in anti-static bag; attach QC test tag; pack in shock-resistant case for shipping.

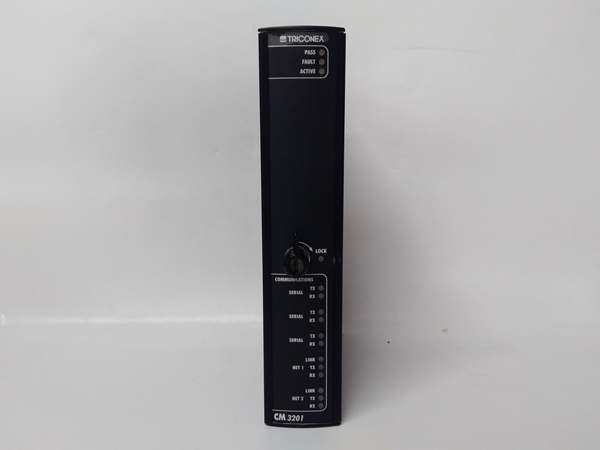

TRICONEX CM3201

Installation Pitfalls & Guide (Engineer to Engineer)

• ❗ Backplane Keying Mismatch: uses unique keying. Forcing into wrong slot damages module/backplane; match key profile first.
• ❗ Network Isolation Failure: Safety and control networks must be physically isolated. Mixing networks compromises SIL3 integrity.
• ❗ Serial Port Misconfiguration: Incorrect RS-232/485 selection causes communication failures; verify port settings before wiring.
• ❗ Hot-Swap Restrictions: Hot-swap works only in Tricon v10+ chassis; older racks risk bus errors and system faults.
• ❗ ESD Damage: Unprotected handling fries communication ICs; always use ESD wrist strap and grounded mat.

Replacement Guide:

1. Pre-install: Set SIS to safe state; label all network/serial cables; apply ESD protection.
2. Removal: Extract faulty module; photograph port connections and switch settings.
3. Install: Align keying; seat firmly; configure ports to match photos; reconnect cables.
4. Power-on Test: Restore power; check LEDs; verify communication and redundancy operation.

FAQ (Frequently Asked Questions)

Q: Does support hot swapping?A: Yes, on Tricon v10+ chassis; no system shutdown needed during replacement.

Q: What protocols does support?A: Modbus TCP/RTU, TriStation, TSAA, Peer-to-Peer, SNTP, TCP/IP, UDP/IP.

Q: Can operate in redundant mode?A: Yes; two modules can be configured as a redundant pair for fault-tolerant communication.

Q: What’s the warranty coverage?A: New original units: 12-month OEM warranty; refurbished: 6-month functional warranty.

Q: Is end-of-life?A: No; fully supported for Tricon v10 platforms; contact Schneider for EOL notices.

Q: What’s the maximum serial cable length?A: RS-485: up to 1200m (shielded twisted pair); RS-232: up to 15m.
