Description
Component Snapshot At-a-Glance

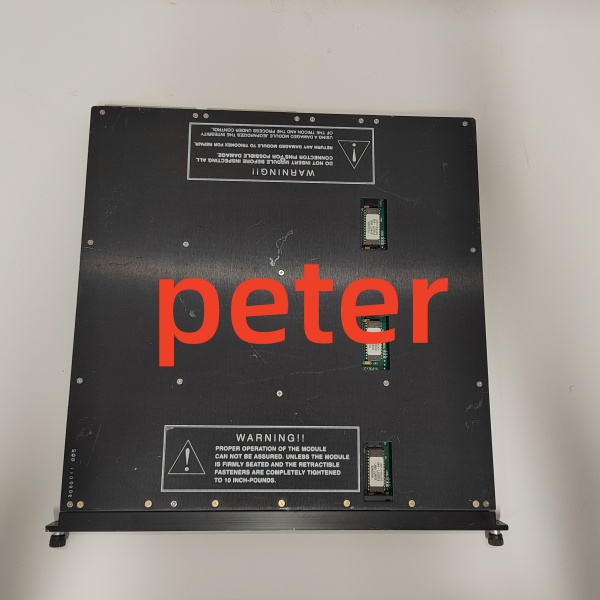

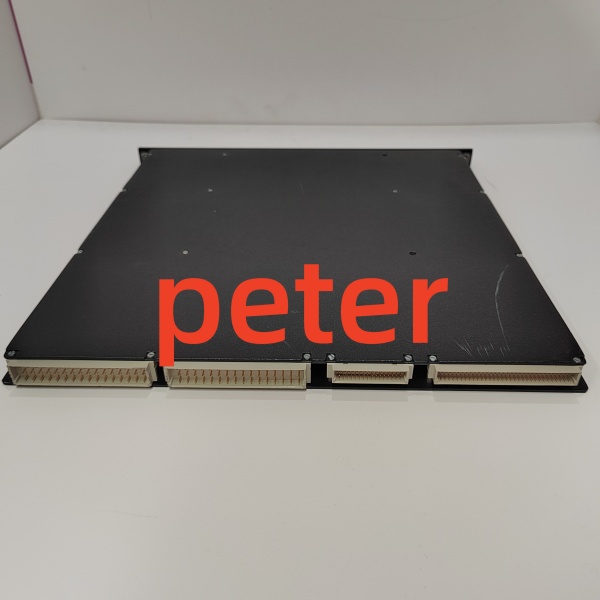

- Model: Triconex 3700
- Alt. P/N: Direct upgrades = 3700A, 3701, 3703E; no cross-compatible alternate factory part
- Product Series: Tricon 3700 Legacy TMR I/O Family, compatible with CX, EX, RX chassis
- Hardware Type: Triple Modular Redundant non-isolated analog input PCB, single-slot hot swappable rack card
- Key Feature: Fixed 0-5VDC input range with no onboard current shunt components
- Primary Field Use: Receives pre-conditioned 0-5VDC sensor signals for auxiliary safety monitoring on legacy SIS systems.
Hard-Numbers: Technical Specifications
- Protocol Support: Proprietary Tricon TriBus backplane bus only, no external fieldbus or Ethernet ports
- Port Count: 32 differential analog input channels per module
- Data Rate: Full card scan cycle ≤ 55ms, 12-bit ADC resolution
- Operating Temperature: 0°C to +60°C continuous operation; -40°C to +85°C storage
- Isolation Rating: 1500VAC bulk field-to-backplane surge protection, no channel-to-channel galvanic isolation
- Power Draw: 4.7W typical at 5VDC backplane input, ~940mA nominal current
- Input Range: Hardware locked 0-5VDC, no software selectable mA modes
- CMRR Rating: -80dB at DC to 100Hz, performance drops with unbalanced field grounding
- Overvoltage Tolerance: 115VAC / 150VDC continuous surge withstand on field terminals
- Certifications: IEC61508 SIL3, UL Class I Div 2, ATEX Zone 2 hazardous location approval
The Real-World Problem It Solves
Early low-density 16-channel analog cards consumed excessive rack slots on space-limited legacy CX chassis during plant expansions. This high-density 32-channel design cuts slot usage while keeping all signal processing inside SIL3 certified TMR hardware.Where you’ll typically find it:
- Retired coal power plant boiler auxiliary SIS racks using RTD and thermocouple signal converters
- Older refinery tank farm monitoring panels with pre-scaled 0-5VDC level transmitters
- Gas plant utility compressor non-critical safety monitoring cabinetsThis hardware eliminates extra rack expansion costs for large banks of low-voltage conditioned analog signals.
Hardware Architecture & Under-the-Hood Logic
This card uses three fully independent TMR processing legs with a shared common ground plane across all channels. It relies on external hardware to convert 4-20mA current signals to valid voltage ranges.
- Incoming 0-5VDC differential signals feed front-end amplifiers tied to a single module-wide common ground.
- No internal shunt resistors; 4-20mA transmitters require external 250Ω resistors to produce a 0-5VDC signal.
- Each TMR leg runs separate 12-bit ADC sampling and fixed-range signal scaling.
- Three processed values feed the internal hardware voter; the 2-out-of-3 majority value transmits across the TriBus.
- Module-level diagnostics report overrange or total loop faults, but cannot isolate individual channel ground issues.
Field Service Pitfalls: What Rookies Get Wrong
Adding Shunt Resistors Directly to Module TerminalsNew technicians mount 250Ω resistors across the card’s terminal blocks for 4-20mA inputs. This creates signal distortion and triggers permanent overrange faults across the entire module.
- Field Rule: Install all required shunt resistors at the field transmitter; never add passive components to 3700 terminal wiring.
Combining Devices from Separate Ground Grids on One CardWiring transmitters from different plant MCC grounding nodes onto the same 3700 creates ground loops. Readings drift 4% to 10% and generate intermittent false alarms.
- Quick Fix: Group all field devices on a single card to one unified grounding point. Split mixed ground feeds across separate modules.
Blind Swap with 3700A or 3701 Without Configuration ChangesSwapping this card for 3700A or 3701 without updating TriStation settings causes span mismatch. All analog readings show incorrect values and active fault codes.
- Field Rule: Update channel range and calibration parameters in TriStation before any cross-model card replacement.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
