TRICONEX 3604E | 16-Ch Digital Output TMR Module In Stock

• Description

Key Technical Specifications

• Architecture: Triple Modular Redundancy (TMR), 2oo3 voting; fault-tolerant
• Channels: 16 non-commoned, fully isolated digital outputs
• Output Voltage: 22–45VDC (nominal 24VDC)
• Output Current: 2A continuous per channel; 10A surge (10ms)
• Voltage Drop: <4V typical
• Isolation: 1500VDC channel-to-channel & channel-to-backplane
• Response Time: <1ms (fast-acting for ESD)
• Safety Rating: IEC 61508 SIL3; FM, CSA, ATEX, TÜV certified
• Operating Temp: -40°C to +70°C
• Power: 24VDC; ≤4.5W consumption
• Dimensions: 190×60×35mm; weight ~0.5kg
• Diagnostics: Per-channel LED status; open/short circuit detection
• Features: Hot-swap (v10+ chassis); TMR fault tolerance; surge protection

Product Introduction

TRICONEX 3604E is a high-reliability 16-channel digital output module for Tricon TMR safety systems. It converts safety logic into 24VDC on/off signals to control critical field devices in ESD, process safety, and fire/gas protection systems.

Built with triple modular redundancy (TMR), the module uses three independent circuits per channel with 2oo3 voting, eliminating single points of failure. Each of the 16 isolated outputs delivers 2A continuous current with 1500VDC isolation, ensuring noise immunity in harsh industrial environments. Certified for SIL3 safety loops, 3604E is ideal for oil/gas, chemical, power, and petrochemical applications where fail-safe operation is mandatory.

QA & Testing SOP

1. Incoming Inspection: Verify part/serial numbers; inspect casing, connectors, pins; validate anti-counterfeit labels.
2. Continuity & Isolation Test: Check all 16 channels for shorts; verify 1500VDC isolation between channels/backplane.
3. Live Signal Test: Install in Tricon chassis; apply 24VDC; toggle each channel; confirm 24VDC output and <1ms response.
4. Redundancy & Hot-Swap Test: Configure dual-module redundancy; simulate faults to confirm failover; test hot-swap in v10+ chassis.
5. Final Packaging: Place in anti-static bag; attach QC report; pack in shock-resistant case.

Installation Pitfalls & Guide

• ❗ Backplane Keying Mismatch: 3604E uses unique keying. Forcing into wrong slot damages module/backplane; match key profile first.
• ❗ Overload Damage: Do not connect loads >2A per channel; risk burnout.
• ❗ Ground Loops: Isolate field grounds; use shielded cables with single-point grounding to avoid noise.
• ❗ Hot-Swap Restrictions: Hot-swap only works in Tricon v10+ chassis; older racks risk bus errors.
• ❗ ESD Damage: Always use ESD wrist strap and grounded mat; static destroys output circuits.

Replacement Steps:

1. Pre-work: Set SIS to safe state; label all field cables; apply ESD protection.
2. Remove faulty module: Unplug cables; extract from chassis.
3. Install new unit: Align keying; seat firmly; reconnect cables per labels.
4. Power-on test: Verify LEDs; toggle all channels; confirm output accuracy and redundancy.

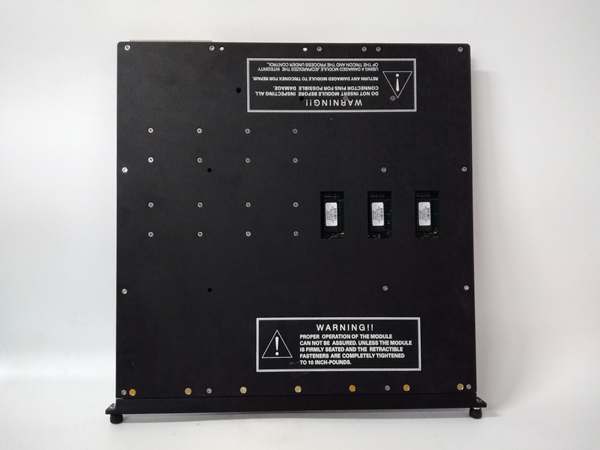

TRICONEX 3604E

FAQ

Q: What’s the difference between 3604E and 3604?A: 3604E is the enhanced version with extended temperature (-40°C to +70°C) and improved surge protection.

Q: Is 3604E SIL3 certified?A: Yes – IEC 61508 SIL3, FM, CSA, ATEX, TÜV approved.

Q: Can I hot-swap 3604E?A: Yes, in Tricon v10+ chassis; no system shutdown required.

Q: What’s the maximum load per channel?A: 2A continuous; 10A surge (10ms).

Q: Is 3604E end-of-life?A: No – fully supported for Tricon v10 platforms; contact Schneider for EOL updates.

Q: What’s the warranty?A: New original: 12-month OEM warranty; refurbished: 6-month functional warranty.
