Description
Product Overview

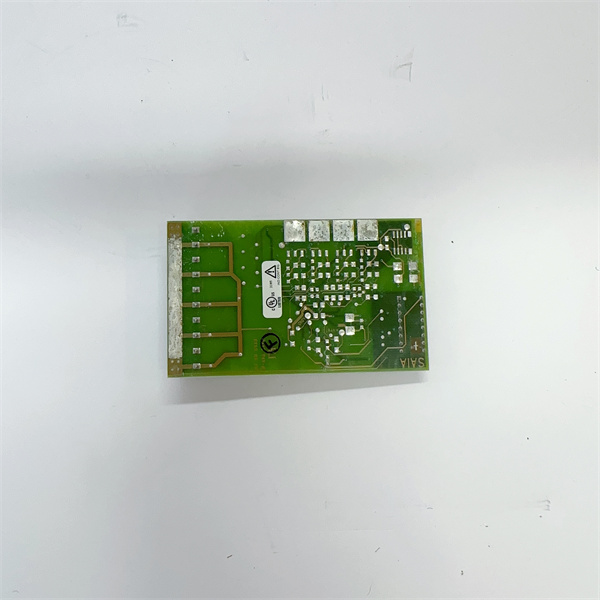

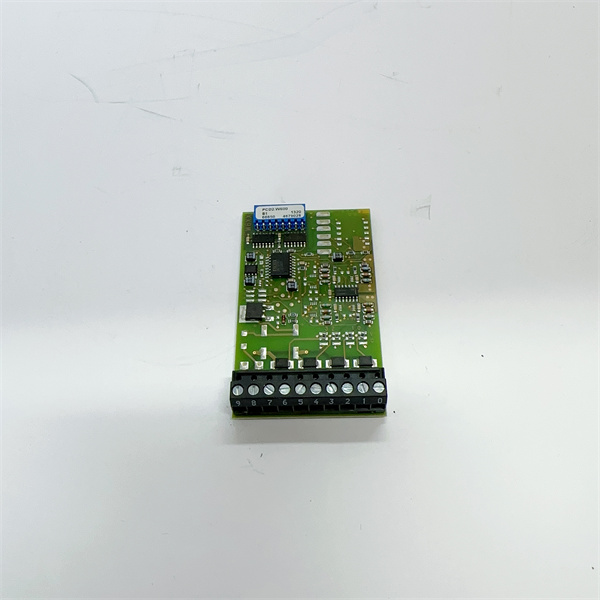

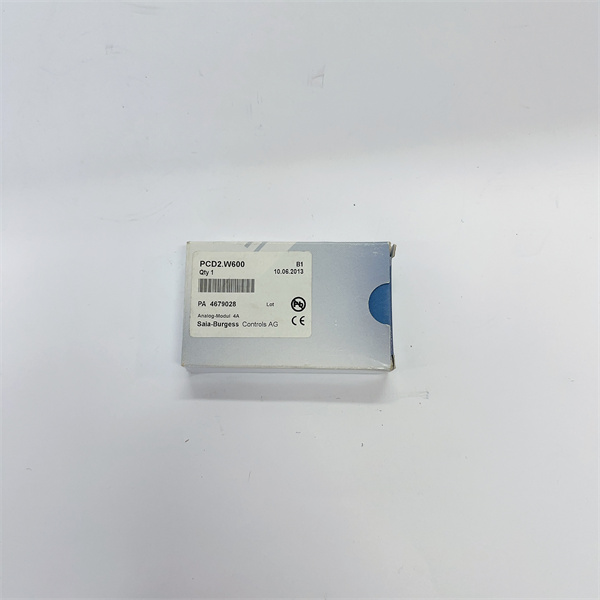

The SAIA PCD2.W600 is a high-performance, configurable controller module designed for industrial automation, building automation, and energy management applications. It features a modular design, supporting a variety of communication protocols and interfaces, making it suitable for complex control tasks.
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | SAIA PCD2.W600 |
| Manufacturer | SAIA-BURGES |
| Processor | High-speed 32-bit RISC processor |
| Memory | 128 MB Flash, 64 MB RAM |
| Input/Output Channels | Digital Input: 16 channels, Analog Input: 8 channels, Digital Output: 16 channels, Analog Output: 4 channels |
| Communication Interfaces | Ethernet (10/100 MBit/s), RS232, RS485, CAN Bus (1 MBit/s) |
| Power Supply Voltage | 24V DC |
| Operating Temperature Range | -20°C to +60°C |
| Humidity Range | 5% to 95% relative humidity, noncondensing |
| Protection Rating | IP66 (suitable for outdoor or damp environments) |
| Physical Characteristics | Compact modular design, suitable for space-limited applications |
PCD2.W600
Main Features and Advantages
Flexible Hardware Configuration: Users can customize hardware configurations, including memory, CPU, and storage expansion, to meet specific application needs.
Multi-Protocol Communication Support: The module supports multiple communication protocols and interfaces, facilitating seamless integration with other devices and systems.
High-Precision Control Capability: It supports both digital and analog channels, providing high-precision data acquisition and output suitable for precision industrial scenarios.
System Enhancement Tools: Integrated parameter setting, fault diagnosis, and data logging tools enhance system performance and reliability.
High Reliability: Industrial-grade components and rigorous testing ensure long-term stable operation, reducing maintenance needs.
PCD2.W600
Application Field
The SAIA PCD2.W600 is widely used in various fields, including:
Industrial Automation: For controlling robots, conveyor belts, production lines, and other equipment.
Building Automation: For integrating lighting, HVAC systems, and optimizing energy use.
Energy Management: For monitoring and controlling the consumption of electricity, gas, and water resources.
Process Control: For monitoring and controlling key parameters in chemical, oil, and pharmaceutical industries.
Related Products
PCD2.W605: A variant with additional features.
PCD2.W610: An analog output module for precise control applications.
PCD2.W720: A weighing module for precise weight measurements.
Installation and Maintenance
Pre-installation preparation: Ensure you have the SAIA PCD2.W600 module, a compatible PCD2 controller, and appropriate cables. Turn off the power and unplug the system. Install the module in the controller and secure it with the provided screws. Connect the necessary cables and ensure all connections are secure.
Maintenance recommendations: Regularly inspect the connections for wear or damage. Clean the module using a soft, non-metallic brush to remove dust and ensure the device is completely dry before reusing it. Store the module in a dry place with relative humidity between 5% and 95% noncondensing.
Product Guarantee
The SAIA PCD2.W600 is backed by a 12-month warranty from the supplier, ensuring the quality and reliability of the product.
