Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product model | REXROTH DKC11.1-040-7-FW |
| Manufacturer | Bosch Rexroth |
| Product category | Servo Drive Controller |
| Operating Voltage | 3 x AC (380-480 V) |
| Rated Current | 40 A |
| DC Bus Nominal Voltage | 700 V |
| Switching Frequency | 8 kHz |
| Communication Interface | SERCOS Interface |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature Range | -25°C to 70°C |
| Dimensions (W x H x D) | 220 mm x 150 mm x 100 mm |
| Weight | 5 kg |
| Certifications | CE, UL |
| I/O Channels | 8 digital inputs, 8 digital outputs |

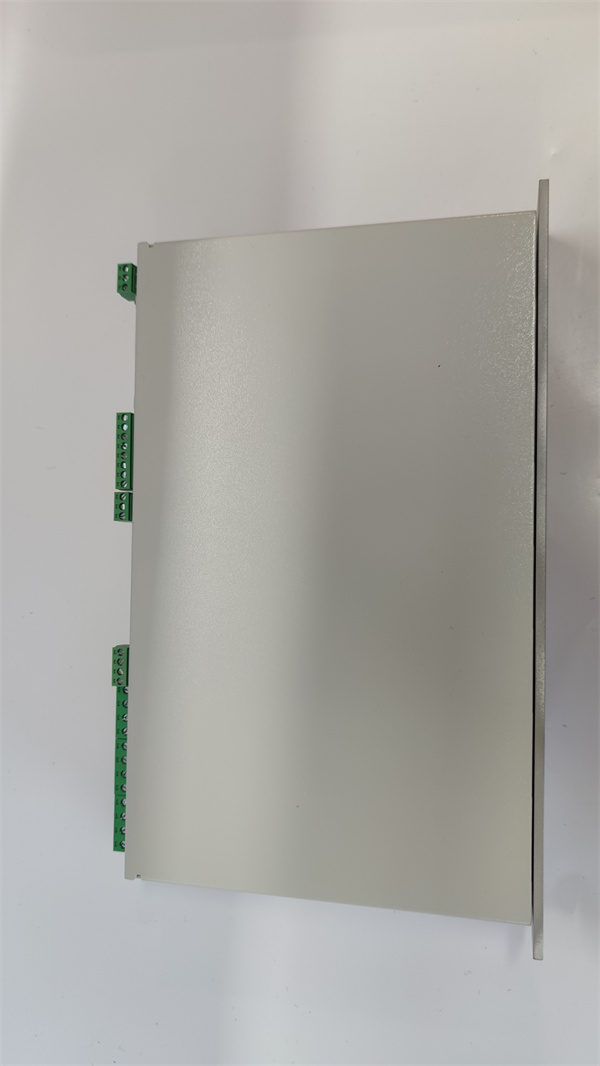

REXROTH DKC11.1-040-7-FW
Product Introduction
The REXROTH DKC11.1-040-7-FW is a high-performance servo drive controller designed for precise motion control in industrial automation systems. It is part of the DKC Drive Controllers series, known for its high precision and reliability. This drive controller is designed to deliver robust performance in single and multi-axis drive tasks, making it suitable for a wide range of applications.
Core Advantages and Technical Highlights
High Precision and Reliability:
The REXROTH DKC11.1-040-7-FW offers high-precision control and reliable performance, making it suitable for demanding industrial environments.
Robust Industrial Design:
The controller is designed to operate reliably within a wide temperature range (0°C to 55°C) and can withstand harsh industrial conditions.
Versatile Applications:
The REXROTH DKC11.1-040-7-FW is suitable for a wide range of applications, including handling systems, packaging machines, assembly systems, printing machines, and machine tools.
Easy Integration:
The controller features a SERCOS interface, ensuring seamless integration with existing systems.
Advanced Safety Features:
The controller includes safety features such as safe torque off (STO), ensuring enhanced safety in industrial environments.

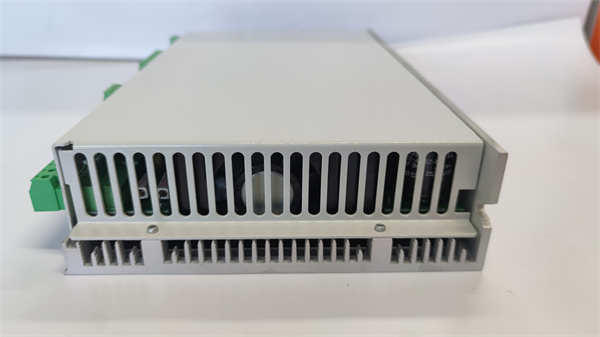

REXROTH DKC11.1-040-7-FW
Typical Application Scenarios
The REXROTH DKC11.1-040-7-FW is widely used in various industrial sectors:
Manufacturing: For precise control in assembly lines and machine tools.
Automotive: For control and monitoring in vehicle manufacturing and maintenance.
Aerospace: For reliable control in aircraft manufacturing and maintenance.
Food Processing: For precise control in food processing machines.
Related Model Recommendations
REXROTH DKC11.1-025-7-FW: A similar model with a rated current of 25 A, suitable for applications requiring lower current.
REXROTH DKC11.1-050-7-FW: A model with a higher rated current of 50 A, suitable for applications requiring higher power.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation:
Ensure the installation environment meets the specified temperature and humidity requirements. The controller should be installed in a location with adequate ventilation to dissipate heat. Verify that the power supply voltage is within the specified range (380-480 V AC) to avoid damage to the controller.
Maintenance Suggestions:
Regularly inspect the installation to ensure the controller is securely mounted and all connections are tight. Monitor the operational status of the controller to detect any signs of malfunction early. Conduct functional testing on the controller at least once a year to ensure optimal performance.
Service and Guarantee Commitment
Bosch Rexroth provides comprehensive support for the REXROTH DKC11.1-040-7-FW, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. Bosch Rexroth’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
