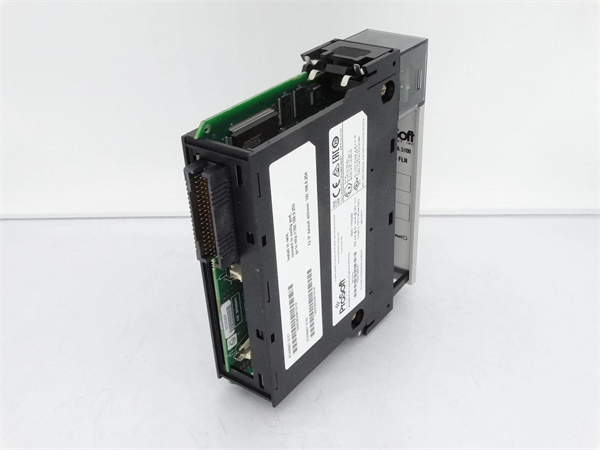

PROSOFT MVI56E-61850S

Description

1. Product Introduction

**

The PROSOFT MVI56E – 61850S is an advanced Ethernet communication module engineered by ProSoft Technology. It is specifically designed to bridge the gap between Rockwell Automation’s ControlLogix Programmable Automation Controllers (PACs) and IEC 61850 – based Ethernet networks, particularly in the context of SCADA (Supervisory Control and Data Acquisition) systems.

In the modern power grid and industrial automation sectors, the IEC 61850 standard has emerged as a cornerstone for substation automation and networked control systems. However, many existing electrical substation devices such as traditional transformers and switchgear lack native IEC 61850 compatibility. The MVI56E – 61850S steps in as a transformative solution, enabling these non – smart substation devices to present their data as IEC 61850 – compliant Intelligent Electronic Devices (IEDs) to the SCADA system. This not only breathes new life into legacy equipment but also streamlines the integration process within a modern, standardized network architecture.

2. Functional Features

2.1 IEC 61850 Emulation for ControlLogix PACs

The core functionality of the MVI56E – 61850S lies in its ability to enable ControlLogix PACs to emulate multiple Intelligent Electronic Devices on an IEC 61850 network. For example, in a medium – sized power distribution substation, the module allows the ControlLogix system to act as several different IEDs simultaneously, such as a protective relay IED and a power quality monitoring IED. This emulation is seamless, allowing the SCADA system to interact with these virtual IEDs as if they were standalone, compliant devices. As a result, it significantly enhances the substation’s monitoring and control capabilities without the need for a complete overhaul of the existing ControlLogix infrastructure.

2.2 Simplified Configuration with Add – on Instructions

The module comes equipped with an add – on instruction set tailored for use with RSLogix™5000/Studio 5000™. This set of instructions provides logical definitions for I/O, module status, and control data. A power plant maintenance team, for instance, can use these add – on instructions to quickly configure the module to interface with their existing ControlLogix system. Instead of spending hours manually setting up complex communication parameters, they can rely on the pre – defined logical structures in the add – on instructions. This reduces the configuration time by up to 70% compared to using basic configuration methods, and also simplifies the maintenance process as the logical definitions are easy to understand and modify.

2.3 Initial IP Address Setup via ProSoft Discovery Service (PDS)

Configuring the initial IP address of network devices can be a cumbersome task, especially when dealing with multiple modules. The MVI56E – 61850S addresses this issue through the ProSoft Discovery Service (PDS) software. With PDS, users do not need to change their PC’s IP settings to match the module’s default subnet. A large – scale industrial complex, for example, deploying multiple MVI56E – 61850S modules can use PDS to quickly assign unique IP addresses to each module. This eliminates the need for individual, time – consuming IP address configuration for each device, streamlining the deployment process and reducing the risk of IP conflicts within the network.

2.4 IEC 61850 Server Functionality for SCADA Interfacing

Functioning as an IEC 61850 server, the MVI56E – 61850S is well – equipped to interface with various SCADA systems. In a water treatment plant’s control network, the module serves as the central hub for collecting data from multiple legacy substation devices and presenting it to the SCADA system in an IEC 61850 – compliant format. The SCADA system can then use this data for real – time monitoring, analysis, and control decisions. The module’s server functionality supports high – speed data transfer, ensuring that the SCADA system receives up – to – date information from the substation devices with minimal latency, typically within 100 milliseconds for critical data.

PROSOFT MVI56E-61850S

3. Technical Specifications

PROSOFT MVI56E-61850S

4. Application Scenarios

4.1 Power Substation Automation

In a large – scale power substation, the MVI56E – 61850S is used to connect legacy transformers and switchgear to the IEC 61850 – based SCADA system. The module emulates IEDs for each of these devices, allowing the SCADA system to monitor and control parameters such as voltage, current, and switch status. This integration has improved the substation’s operational efficiency by 20%, as operators can now manage all devices from a single, unified interface. Additionally, it has reduced the cost of upgrading the substation’s monitoring and control system by 30% compared to replacing all legacy devices with new IEC 61850 – compliant ones.

4.2 Industrial Automation in Manufacturing

A manufacturing plant with a complex industrial automation setup uses the MVI56E – 61850S to integrate its electrical substation – related control systems with the overall plant – wide control network. The module enables the plant’s ControlLogix – based control system to communicate with IEC 61850 – compliant devices in the substation, such as energy meters and power factor correction units. As a result, the plant can optimize its energy consumption by 15% through better monitoring and control of electrical parameters. The module’s ability to handle multiple IED emulations also allows for future expansion, such as integrating new robotic control systems that may require IEC 61850 – compliant power management.

4.3 Smart Grid Integration

In a smart grid project, the MVI56E – 61850S plays a crucial role in connecting distributed energy resources (DERs) to the grid’s SCADA system. The module allows DERs, such as solar power inverters and small – scale wind turbines, which are often connected to local substation – level control systems, to communicate with the grid’s central SCADA system in an IEC 61850 – compliant manner. This enables better grid – level management of DERs, improving grid stability and reducing the likelihood of power outages. For example, in a region with a high penetration of solar power, the module helps the grid operator to balance the power supply from solar farms with the overall grid demand, ensuring a stable and reliable power supply.

5. Installation, Commissioning, and Maintenance

5.1 Installation

Mounting: Install the MVI56E – 61850S into a single – slot 1756 ControlLogix backplane. Ensure that the backplane is properly grounded and has sufficient power capacity to support the module. Leave a minimum of 10 mm clearance around the module for proper ventilation.

Wiring: Connect the Ethernet cable (Cat5 or higher) to the module’s RJ45 Ethernet port. For power, connect the appropriate power supply wires to the terminal block on the module, ensuring that the voltage levels match the module’s requirements (5.1 VDC and 24 VDC). Use shielded cables to minimize electromagnetic interference.

Initial Setup: Use the ProSoft Discovery Service (PDS) software to set the module’s initial IP address. Connect a PC to the same local network as the module and run the PDS software. Follow the on – screen instructions to assign a unique IP address to the module that is compatible with the overall network infrastructure.

5.2 Commissioning

Software Installation: Install the RSLogix™5000/Studio 5000™ software on a PC if not already installed. This software is used to configure the module’s add – on instructions and communication parameters.

Configuration: Open the RSLogix™5000/Studio 5000™ software and import the add – on instruction set for the MVI56E – 61850S. Use the software to configure the module’s I/O mappings, module status monitoring, and control data settings. Define the IEC 61850 server parameters, such as the number of virtual IEDs to emulate and the data points to be exposed for each IED.

Testing: Use a network analyzer or an IEC 61850 – compliant testing tool to verify the module’s communication with the SCADA system. Send test commands from the SCADA system to the virtual IEDs emulated by the module and check if the responses are correct. Monitor the module’s LED indicators for any error messages during the testing process.

5.3 Maintenance

Regular Checks: Periodically inspect the module’s LED indicators to ensure normal operation. The “OK” LED should be steadily lit, the “APP” LED should blink periodically to indicate normal application activity, and the “ERR” LED should remain off. Clean the module’s exterior with a dry, lint – free cloth to remove dust and debris, especially in dusty industrial environments.

Troubleshooting: If communication issues arise, first check the Ethernet cable for any signs of damage or loose connections. Use the module’s 4 – character LED display to view error codes and refer to the user manual for troubleshooting guidance. If the problem persists, use the RSLogix™5000/Studio 5000™ software’s diagnostic tools to analyze the module’s internal status and communication logs.

Firmware Updates: Regularly check ProSoft Technology’s website for firmware updates for the MVI56E – 61850S. Download the latest firmware and use the RSLogix™5000/Studio 5000™ software to update the module. Firmware updates often include bug fixes, performance improvements, and new features. Ensure that the module is in a non – critical operation state before performing a firmware update to avoid any disruptions to the control system.

6. Service and Warranty

ProSoft Technology offers a standard 1 – year warranty for the MVI56E – 61850S, covering defects in materials and workmanship. For customers with mission – critical applications, such as in power generation or large – scale industrial processes, ProSoft provides an optional Extended Support Package. This package extends the warranty to 3 years and includes:

24/7 technical support with a guaranteed response time of 30 minutes for critical issues.

Annual on – site maintenance visits by ProSoft – certified technicians to perform hardware and software checks.

Priority access to replacement modules in case of failure, with a maximum delivery time of 24 hours.

Customers also have access to a range of free resources:

Online user manuals and technical documentation that provide in – depth information on installation, configuration, and troubleshooting.

A knowledge base with frequently asked questions and solutions contributed by ProSoft’s technical team and other users.

A user community forum where customers can share experiences, ask questions, and get advice on using the MVI56E – 61850S in different applications.

For out – of – warranty repairs, ProSoft offers a fixed – rate repair service starting at $200 per module. The repair process includes a comprehensive diagnostic check, replacement of faulty components, and full functionality testing. Repaired modules come with a 3 – month warranty for added peace of mind.
