Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 5X00063G01 |
| Manufacturer | Emerson (formerly Westinghouse) |
| Product Category | Analog Output Module |
| Number of Channels | 8 channels |
| Output Type | 4-20 mA, 0-10 V, scaled bipolar |
| Output Range | 4-20 mA, 0-10 V (selectable) |
| Resolution | 16 bits |
| Accuracy | ±0.1% of full scale |
| Update Rate | 250 ms |
| Input Voltage | 24 VDC |
| Power Consumption | 12 W |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 0% to 95% non-condensing |
| Ingress Protection | IP66 |
| Communication Protocol | HART |
| Dimensions (L×W×H) | 6.25″ × 4.25″ × 1.25″ |
| Weight | 1.5 lbs (0.68 kg) |

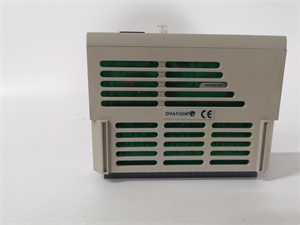

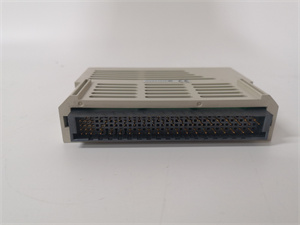

OVATION 5X00063G01
Product Introduction
The Emerson Ovation 5X00063G01 is an 8-channel HART analog output module designed for industrial automation applications. It is part of the Ovation Distributed Control System (DCS) and provides precise analog output capabilities for interfacing with HART-compatible field devices. This module supports various signal types, including 4-20 mA, 0-10 V, and scaled bipolar outputs, making it suitable for a wide range of industrial requirements.
Core Advantages and Technical Highlights
HART Protocol Support: The 5X00063G01 supports the HART protocol, enabling two-way communication and advanced diagnostic capabilities. This allows for enhanced control and monitoring of field devices.
High Accuracy and Resolution: With an accuracy of ±0.1% of full scale and a 16-bit resolution, the module ensures precise and reliable signal output, making it ideal for applications requiring high precision.
Configurable Output Ranges: The module offers configurable output ranges and scaling, allowing users to tailor the output signals to specific application needs.
On-Board Diagnostics: The 5X00063G01 includes diagnostic capabilities for monitoring module health and performance. It also features fault isolation mechanisms to minimize impact and ensure system reliability.
Hot-Swappable Design: The module is designed for hot-swappable installation, allowing for module replacement without shutting down the system, thereby reducing downtime.
Robust Industrial Design: The module is designed for industrial environments, featuring IP66 protection against dust and water ingress, and an operating temperature range of -40°C to +70°C.
OVATION 5X00063G01
Typical Application Scenarios
The Emerson Ovation 5X00063G01 is widely used in power plants, manufacturing facilities, and process control systems. It provides precise control and monitoring of critical parameters such as temperature, pressure, and flow rates. Its ability to handle multiple signal types and provide precise control makes it essential for high-precision process control applications.
Related Model Recommendations
-
5X00070G04: An analog input module with high accuracy and multiple input ranges, suitable for precise measurement.
-
1C31125G02: A digital output module with similar communication capabilities, suitable for precise control of actuators and other devices.
-
1C31124G01: A digital input/output module providing versatile control options for industrial automation.
-
5X00063G03: A related analog output module with enhanced diagnostic features, ideal for advanced monitoring and troubleshooting.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the Emerson Ovation 5X00063G01, ensure the environment meets the specified temperature and humidity requirements. Prepare the necessary tools, such as a screwdriver and multimeter, and ensure the installation area is free from dust and moisture. Follow the provided installation manual carefully to ensure proper grounding and connection of the module. Always disconnect the power source before starting the installation process to avoid electrical shock.
Maintenance Suggestions: Regularly inspect the 5X00063G01 for signs of damage or wear, such as loose connections or corrosion. Clean the module periodically to remove dust and debris, which can affect performance and longevity. If any issues are detected, such as signal errors or communication failures, consult the troubleshooting guide or contact a professional for assistance. Replace any damaged components promptly to maintain optimal performance and reliability.
Service and Guarantee Commitment
The Emerson Ovation 5X00063G01 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. The module comes with a standard one-year warranty, covering any manufacturing defects. Emerson offers 24/7 technical support to assist with installation, troubleshooting, and maintenance. Our commitment to quality and customer service ensures that the 5X00063G01 will deliver reliable performance for years to come.
