Description
Detailed parameter table
| Parameter name | Parameter value |
| Product model | NI PCI-6031E |
| Manufacturer | National Instruments (NI) |
| Product category | Legacy High-Channel Multifunction Data Acquisition (DAQ) Card (PCI Interface) |
| Electrical performance | Analog Input: 32 single-ended / 16 differential channels; Resolution: 12-bit; Sampling rate: Up to 500 kS/s (single-channel), 250 kS/s (multichannel); Input range: ±0.5 V, ±1 V, ±2.5 V, ±5 V, ±10 V (software-selectable)Analog Output: 2 channels; Resolution: 12-bit; Output range: 0–5 V, 0–10 V, ±5 V (selectable); Update rate: 100 kS/s per channelDigital I/O: 16 lines (8 input/8 output, configurable); Counter/Timer: 2 × 24-bit up/down counters; PWM output: Supported via counter/timer (up to 1 MHz) |
| Physical size | Dimensions (L×W×H): 175 mm × 106 mm × 20 mm (standard PCI form factor); Weight: Approximately 200 g |
| Interface type | PCI 2.2 compliant (32-bit, 33 MHz); Dual 68-pin SCSI-II connectors for analog/digital signals; 10-pin header for counter/timer signals; RTSI bus connector (8-line) for multi-device synchronization |
| Communication protocol | PCI bus for data transfer; Compatible with NI-DAQmx and legacy Traditional NI-DAQ drivers; Supports register-level programming and SCPI (Standard Commands for Programmable Instruments); Supports DMA (Direct Memory Access) for high-throughput data transfer |
| Environmental requirements | Operating temperature: 0 °C to 55 °C; Storage temperature: -20 °C to 70 °C; Relative humidity: 10% to 90% (non-condensing); Operating altitude: Up to 2000 m; Vibration resistance: 2 g (10 Hz to 500 Hz); Shock resistance: 50 g (11 ms half-sine) |
| Installation method | Standard PCI slot mounting (compatible with PCI 2.1/2.2 chassis); Designed for integration into legacy industrial PCs, high-channel lab workstations, and retrofitted multi-sensor test systems |
| Performance indicators | Analog input accuracy: ±0.02% full scale (FS) at 25 °C; Analog output accuracy: ±0.15% FS; Digital I/O voltage levels: 5 V TTL/CMOS; Counter frequency: Up to 100 MHz; FIFO buffer: 32 kB for analog input, 4 kB for analog output; Signal-to-Noise Ratio (SNR): > 70 dB (analog input); Channel crosstalk: < -80 dB (at 1 kHz) |
| Power requirements | Powered by PCI bus (no external power supply needed); Typical power consumption: 6 W; Peak power consumption: 8 W (during high-speed multi-channel sampling) |
| Compatibility | Works with Windows XP/Vista/7/10 (32-bit/64-bit); Compatible with NI LabVIEW (v8.0+), LabWindows/CVI, C/C++, Visual Basic 6.0; Full support for Traditional NI-DAQ (for legacy projects); Limited compatibility with newer .NET/Python environments (via NI-DAQmx bridge) |
| Special features | Dual 68-pin connectors for expanded channel access; RTSI bus support for sub-microsecond multi-card synchronization; Hardware-based anti-alias filter (8-pole Butterworth, 10 kHz cutoff at 500 kS/s); Software-selectable input gain per channel; Hot-swappable terminal block compatibility (e.g., NI TB-2707, TB-2627, TB-2922); Support for channel scanning with programmable scan order |

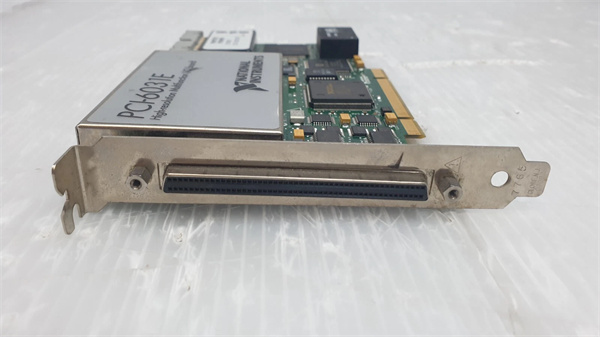

NI PCI-6031E
Product introduction
The NI PCI-6031E is a legacy high-channel multifunction DAQ card developed by National Instruments (NI), a global leader in test, measurement, and automation technology. As an enhanced variant of the iconic NI PCI-6030E, it stands out as a cornerstone of NI’s early 2000s high-channel DAQ lineup—engineered to address the complex multi-sensor data acquisition needs of legacy industrial systems and research labs, where channel density and synchronization are non-negotiable.
Designed for maintenance engineers, legacy system integrators, and researchers managing high-channel setups, the NI PCI-6031E builds on the NI PCI-6030E’s speed (500 kS/s single-channel sampling) but doubles the analog input channels (32 single-ended/16 differential vs. 16/8 in the NI PCI-6030E). This expansion eliminates the need for multiple DAQ cards in multi-sensor applications—such as monitoring 16 temperature zones in a chemical reactor or 32 pressure points in an aerospace component test. Unlike the NI PCI-6030E, its dual 68-pin connectors simplify wiring for high-channel setups, while the 32 kB analog input FIFO buffer handles larger data bursts during simultaneous multi-channel sampling.
At its core, the NI PCI-6031E merges legacy compatibility with industrial scalability. Powered by both Traditional NI-DAQ (for decades-old LabVIEW projects) and NI-DAQmx (for partial modern integration), it seamlessly fits into existing workflows—critical for users upgrading legacy systems without rewriting code. Its hardware anti-alias filter and low crosstalk (< -80 dB) ensure signal integrity across all 32 channels, while RTSI synchronization enables coordination with other legacy NI instruments (e.g., NI PCI-5412 waveform generators, NI PCI-5102 digitizers). Whether used to retrofit a 20-year-old automotive multi-sensor test rig, maintain a high-channel industrial process monitor, or extend the life of a research lab’s multi-point data acquisition setup, the NI PCI-6031E delivers reliable performance that preserves investment in legacy infrastructure.
Core advantages and technical highlights
Doubled Channel Density for Multi-Sensor Applications
The NI PCI-6031E’s 32 single-ended/16 differential analog input channels—twice that of the NI PCI-6030E—make it ideal for high-channel legacy setups. For example, in a retrofitted semiconductor wafer test system, the NI PCI-6031E can simultaneously sample 16 differential temperature sensors across a wafer (each monitoring a die’s heat output) at 250 kS/s—eliminating the need for two NI PCI-6030E cards and reducing system complexity. Its dual 68-pin connectors simplify wiring: one connector handles 16 channels for temperature sensors, while the other manages 16 channels for voltage measurements (e.g., die power consumption). This integration cuts wiring time by 50% and reduces potential points of failure, a key advantage for legacy systems where downtime is costly.
Enhanced FIFO Buffer for High-Throughput Multi-Channel Sampling
With a 32 kB analog input FIFO buffer (double the NI PCI-6030E’s 16 kB), the NI PCI-6031E handles longer bursts of high-speed multi-channel data without dropping frames. In a legacy industrial vibration monitoring system, for instance, the card can sample 32 accelerometers (16 differential pairs) at 250 kS/s for 128 ms—capturing critical transient vibrations during a machine startup—before transferring data to the host PC. The larger buffer ensures no data loss even if the PCI bus is temporarily busy (e.g., during concurrent PLC communication), a common issue in older industrial PCs with limited processing power. This reliability is critical for time-sensitive applications like fault detection, where missing a single data point could lead to unplanned downtime.
Low Crosstalk for Signal Integrity Across All Channels
The NI PCI-6031E’s < -80 dB channel crosstalk (at 1 kHz) ensures signals from adjacent channels do not interfere—critical for high-channel setups where sensors are closely spaced. In a legacy audio equipment test lab, for example, the card can measure 32 microphone outputs (each capturing a different frequency band of a speaker’s sound) without cross-contamination: a 1 V signal on Channel 1 causes less than 1 µV of interference on Channel 2, ensuring accurate frequency response analysis. This performance far exceeds the NI PCI-6030E’s < -70 dB crosstalk, making the NI PCI-6031E the preferred choice for applications where signal isolation is essential.
Flexible Channel Scanning with Programmable Order
Unlike the NI PCI-6030E, the NI PCI-6031E supports programmable channel scan order—letting users prioritize critical channels in multi-sensor setups. For example, in a legacy power plant boiler monitoring system, the card can scan 8 “high-priority” pressure channels (near the boiler’s critical valves) every 4 µs, while scanning 24 “low-priority” temperature channels every 16 µs. This flexibility ensures critical data is captured faster, enabling quicker response to anomalies (e.g., a sudden pressure spike). The NI PCI-6030E, by contrast, scans channels sequentially, which can delay detection of critical events in high-channel setups.
Typical application scenarios
Legacy Semiconductor Wafer Test
Semiconductor manufacturers use the NI PCI-6031E to maintain legacy wafer test systems. A 2008-era wafer prober, for instance, relies on the card to sample 16 differential temperature sensors (monitoring die heat) and 16 single-ended voltage sensors (measuring die power) across a 300 mm wafer. The NI PCI-6031E’s 500 kS/s sampling rate captures fast temperature transients during die testing, while its 32 kB FIFO buffer ensures no data loss. Traditional NI-DAQ compatibility lets the manufacturer reuse LabVIEW 2009 code—critical for maintaining compliance with SEMI standards (e.g., SEMI E10) that require unchanged test procedures. This setup avoids a $200k+ upgrade to a modern test system, extending the wafer prober’s life by 5+ years.
High-Channel Industrial Process Monitoring
In manufacturing plants with legacy multi-point process control, the NI PCI-6031E is used to monitor complex processes. A 2006-era chemical reactor, for example, uses the card to sample 16 differential pressure sensors (monitoring reactor vessel stress) and 16 single-ended pH sensors (tracking chemical reaction progress) at 100 kS/s. The NI PCI-6031E’s low crosstalk ensures pH sensor signals (low-level, 0–5 V) are not corrupted by pressure sensor signals (high-level, ±10 V), while RTSI synchronization with a legacy NI PCI-6221 DAQ card aligns data with flow meter readings. The card’s dual 68-pin connectors simplify wiring, and Traditional NI-DAQ compatibility preserves the original LabVIEW 2010 interface—avoiding a costly PLC replacement.
Academic Multi-Sensor Research Setups
In university labs with budget constraints, the NI PCI-6031E extends the life of high-channel experimental setups. A 2010-era civil engineering lab, for instance, uses the card to upgrade a structural testing rig: it samples 32 strain gauges (16 differential pairs) attached to a concrete beam during a load test, capturing strain data at 250 kS/s. The NI PCI-6031E’s programmable scan order prioritizes strain gauges near the beam’s expected failure points, ensuring critical data is captured first. Its compatibility with LabVIEW 2012 lets students reuse existing data analysis code, while the larger FIFO buffer handles data bursts during peak load. The card’s low cost (compared to new high-channel DAQ cards) makes it ideal for high-use teaching labs, where equipment is shared across hundreds of students annually.

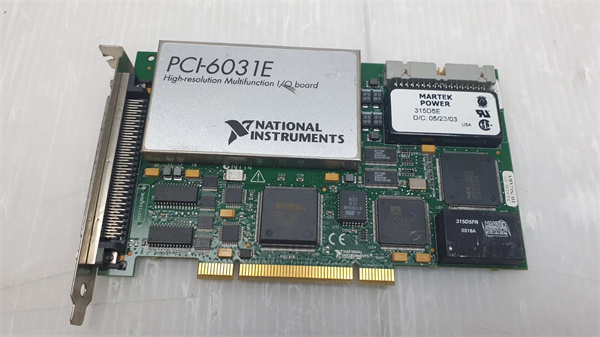

NI PCI-6031E
Related model recommendations
NI PCI-6030E
The predecessor to the NI PCI-6031E, with 16 single-ended/8 differential channels (half the NI PCI-6031E) but identical sampling rate (500 kS/s) and RTSI support. It’s a cost-effective alternative for users with fewer sensor channels (e.g., 8-channel temperature monitoring) who still need legacy software compatibility.
NI PCI-6221
A high-precision upgrade to both the NI PCI-6031E and NI PCI-6030E, offering 16-bit resolution (vs. 12-bit) and 250 kS/s sampling. It includes 32 single-ended/16 differential channels (matching the NI PCI-6031E) and modern NI-DAQmx integration, making it ideal for users migrating from legacy systems to modern workflows while preserving channel density.
NI TB-2922
A legacy terminal block designed for the NI PCI-6031E’s dual 68-pin connectors, offering 32 screw terminals for analog input wiring. It includes built-in signal conditioning for bridge sensors (e.g., strain gauges)—unlike the TB-2627—making it ideal for high-channel structural testing or load monitoring applications common in legacy industrial setups.
NI PCI-5412
A legacy waveform generator that pairs with the NI PCI-6031E in closed-loop high-channel test systems. The NI PCI-5412 generates 2 channels of test signals (e.g., sensor stimuli), while the NI PCI-6031E samples 32 channels of DUT responses—synchronized via RTSI for time-aligned measurements, common in legacy automotive or aerospace multi-sensor testing.
NI LabVIEW 2010
The recommended software for maximizing the NI PCI-6031E’s legacy capabilities. It fully supports Traditional NI-DAQ, letting users run decades-old high-channel LabVIEW projects (e.g., 32-channel data logging) without modification. For partial modernization, LabVIEW 2010 can export data from the NI PCI-6031E to Excel or CSV for analysis in newer tools.
NI USB-6212
A USB-powered DAQ module that complements the NI PCI-6031E for field service. Unlike the PCI-based NI PCI-6031E, it’s portable and works with laptops—perfect for troubleshooting high-channel legacy systems on-site (e.g., verifying sensor signals in a semiconductor wafer test rig). It shares basic NI-DAQmx compatibility and 16-bit resolution for accurate field measurements.
Installation, commissioning and maintenance instructions
Installation preparation
Before installing the NI PCI-6031E, power off the legacy PC and confirm it has an empty PCI 2.1/2.2 slot (PCIe slots require an adapter). Wear an ESD wristband to prevent electrostatic damage. Insert the card firmly into the slot and secure it with the chassis screw. Connect sensors to the dual 68-pin SCSI-II terminal blocks: use NI TB-2922 for bridge sensors (e.g., strain gauges), TB-2627 for thermocouples, or TB-2707 for general signals. For RTSI synchronization, connect an 8-line RTSI cable to other NI PCI instruments (e.g., NI PCI-5412). Download Traditional NI-DAQ (v7.4+) or NI-DAQmx (v9.0+) from NI’s legacy driver archive—critical for older OS compatibility. Use NI Measurement & Automation Explorer (MAX) v4.6+ to detect the card, run a self-test, and calibrate analog channels (use the legacy calibration wizard for Traditional NI-DAQ). For multi-channel setups, configure programmable scan order in MAX to prioritize critical channels.
Maintenance suggestions
To maintain the NI PCI-6031E’s performance, inspect the dual 68-pin and RTSI connectors quarterly for corrosion or bent pins—clean contacts with isopropyl alcohol and a soft brush, and straighten bent pins carefully (use needle-nose pliers). Avoid exposing the PC to temperatures above 55 °C (common in legacy industrial cabinets) by adding a cooling fan; the card’s 6 W typical power consumption generates more heat than the NI PCI-6030E, so adequate ventilation is critical. If analog measurements drift, recalibrate using MAX’s legacy calibration tool (recommended semi-annually for high-channel setups); use a precision voltage reference (e.g., NI 9172) to verify accuracy across all 32 channels. For software issues, avoid updating the OS beyond Windows 10—newer OSes may break Traditional NI-DAQ compatibility. If the card fails, source replacement parts (e.g., capacitors, buffer chips) from NI’s legacy spare parts program; third-party components may not match the card’s original crosstalk or noise specifications.
Service and guarantee commitment
National Instruments (NI) provides limited support for the NI PCI-6031E as a legacy product, including access to the legacy driver archive, knowledge base articles, and application notes on high-channel legacy DAQ. While the standard warranty has expired for most units, NI offers a Legacy Service Plan tailored to high-channel setups—including technical support for multi-card RTSI synchronization, channel scan order configuration, and troubleshooting of crosstalk issues (via email and online chat). For out-of-warranty repairs, NI’s flat-rate legacy service restores the NI PCI-6031E to factory specifications—including replacing aged components (e.g., FIFO buffer chips), recalibrating analog circuits, and verifying crosstalk performance across all 32 channels.
NI also maintains a dedicated user community forum for legacy high-channel DAQ cards, where engineers share tips for optimizing the NI PCI-6031E in multi-sensor setups. Free access to legacy application notes on 32-channel data logging and Traditional NI-DAQ programming ensures users can continue to leverage the NI PCI-6031E for years. This commitment reflects NI’s dedication to supporting customers with long-term investments in high-channel legacy systems, even for end-of-life products.
