Description
Detailed parameter table
| Parameter name | Parameter value |
| Product model | MTL – 4073 |
| Manufacturer | Eaton MTL |
| Product category | Temperature converter |
| Input types | Thermocouple (THC), Resistive Temperature Detector (RTD) |
| Output signal | 4 – 20 mA |
| Input voltage range | 20 – 35 VDC |
| Maximum load resistance | 600 ohm |
| Accuracy | ±0.1% of full scale |
| Dimensions (approx.) | 263 mm (length) × 58 mm (width) × 28 mm (height) |
| Weight (approx.) | 0.07 kg |
| Configuration method | Using a personal computer with PCS45 software and PCS45USB cable |
| Cold – junction compensation | Required for THC inputs, use SCJ 01 hazardous – area connector with integral cjc sensor |
MTL MTL-4073
Product introduction

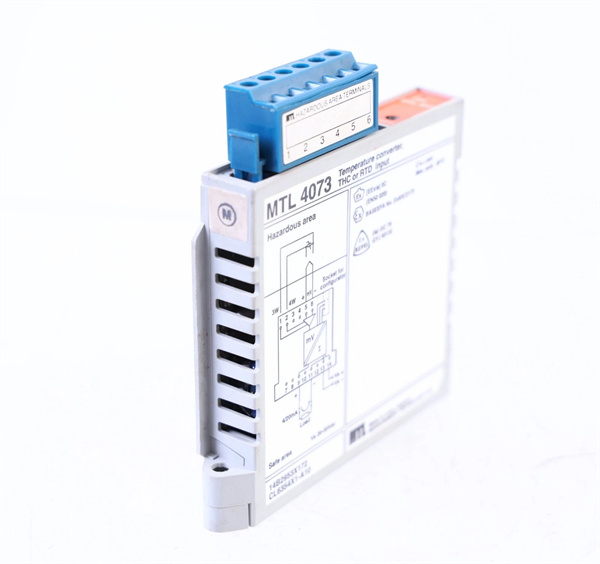

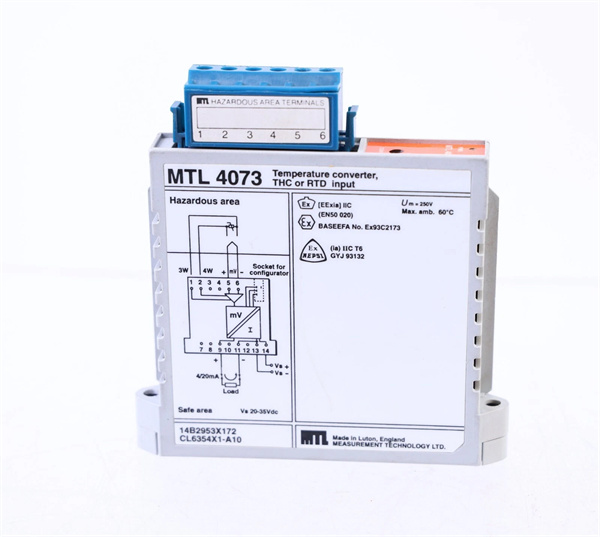

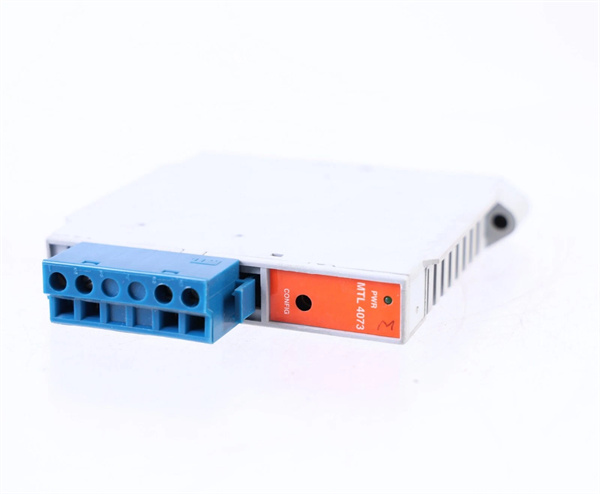

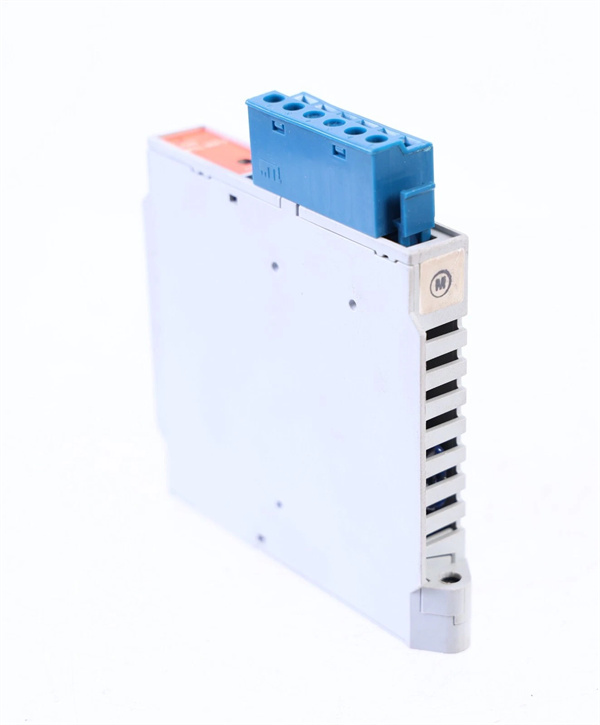

The Eaton MTL MTL – 4073 is a high – precision temperature converter designed specifically for industrial applications. It is an integral part of Eaton MTL’s portfolio of industrial control and safety – related products. This converter plays a crucial role in industrial temperature monitoring and control systems.
Its core function is to accurately convert low – level DC signals from temperature sensors installed in hazardous areas into a standard 4 – 20 mA current output. This standard output is then used to drive loads in safe areas. The MTL – 4073 supports a wide range of input types, including both thermocouples and RTDs. Software – selectable features such as linearisation, ranging, monitoring, testing, and tagging are available for eight thermocouple types and 2 – , 3 – , and 4 – wire RTDs. This flexibility makes it suitable for a variety of industrial processes where precise temperature measurement and signal conversion are essential.
Core advantages and technical highlights
High – precision signal conversion
The MTL – 4073 offers an accuracy of ±0.1% of full scale. This high – level precision ensures that the temperature data converted into the 4 – 20 mA output signal is extremely reliable. In industrial processes where even a slight deviation in temperature measurement can lead to significant issues, such as in chemical reactions or food processing, this accuracy is of utmost importance. For example, in a pharmaceutical manufacturing process, maintaining the correct temperature within a narrow range is critical for product quality. The MTL – 4073 can accurately convert the temperature sensor signals, enabling precise control of the manufacturing environment.
Wide input compatibility
With support for both thermocouples and RTDs, the MTL – 4073 is highly versatile. Thermocouples are suitable for high – temperature measurements in applications like steel manufacturing or power generation, while RTDs are more precise for lower – temperature ranges, such as in food storage facilities. The ability to handle different input types makes it adaptable to various industrial scenarios. Additionally, the software – selectable features for different thermocouple types and RTD wire configurations further enhance its compatibility.
Hazard – area suitability
Designed for use in hazardous areas, the MTL – 4073 meets strict safety standards. When used with a proper cold – junction compensation method (such as the SCJ 01 hazardous – area connector for THC inputs), it ensures safe operation in environments where there may be flammable gases, vapors, or dust. This makes it an ideal choice for industries like oil and gas, where hazardous conditions are common.
Typical application scenarios
Oil and gas industry
In oil refineries and gas processing plants, the MTL – 4073 is widely used. For instance, in a crude oil distillation unit, temperature sensors are placed at various points in the distillation columns. These sensors, which could be thermocouples due to the high – temperature environment, send low – level DC signals. The MTL – 4073 converts these signals into 4 – 20 mA outputs, which are then used to control valves, pumps, and other equipment in the safe – area control room. This ensures that the temperature – sensitive distillation process is accurately monitored and controlled, preventing any potential over – heating or under – heating situations that could lead to production inefficiencies or safety hazards.
Chemical manufacturing
Chemical plants often have complex processes that require precise temperature control. In a polymerization reaction, for example, the temperature must be maintained within a very specific range to produce high – quality polymers. RTDs are used to measure the temperature inside the reaction vessel. The MTL – 4073 takes the signals from these RTDs, converts them, and sends the 4 – 20 mA output to the plant’s distributed control system (DCS). The DCS then adjusts the heating or cooling systems accordingly, thanks to the reliable signal conversion provided by the MTL – 4073.
Food and beverage production
In food and beverage manufacturing, maintaining the right temperature is crucial for product quality and safety. In a large – scale bakery, for example, the ovens need to be precisely controlled. Thermocouples are used to measure the oven temperature. The MTL – 4073 converts the thermocouple signals into a format that can be easily processed by the bakery’s control system. This allows for accurate adjustment of the oven’s heating elements, ensuring that the baked goods are cooked evenly and to the desired quality.
MTL MTL-4073
Related model recommendations
MTL – 4071: Belongs to the same series as the MTL – 4073. It also offers temperature conversion capabilities but may have different input or output configurations. For example, it could be designed for a different range of temperature sensors or have a different output signal format, suitable for applications where the MTL – 4073‘s specific features are not required.
MTL – 5541: While the MTL – 5541 is an intrinsic safety barrier, it can be used in conjunction with the MTL – 4073 in hazardous area applications. The MTL – 5541 ensures the safe transfer of electrical signals, and when combined with the MTL – 4073, it provides a comprehensive solution for temperature signal conversion and safety in hazardous environments.
MTL – 4083: This model may offer additional features or higher – performance capabilities compared to the MTL – 4073. It could have enhanced accuracy, faster response times, or support for more complex temperature sensor setups, making it an upgrade option for applications that require more advanced temperature conversion functionality.
MTL – 4068: It might be a more cost – effective alternative to the MTL – 4073 for certain applications. It could have a more basic set of features, but still be suitable for less demanding temperature conversion tasks, such as in some small – scale industrial processes or where the budget is a major constraint.
MTL – 4095: This model could be designed for specific industry – specific applications. For example, it may have built – in features tailored for the power generation industry, such as better compatibility with the high – temperature and high – voltage environments commonly found in power plants, and can be used as a replacement for the MTL – 4073 in such specialized scenarios.
Installation, commissioning and maintenance instructions
Installation preparation
Before installing the MTL – 4073, ensure the installation environment is clean, dry, and free from excessive dust and moisture. The area should also be well – ventilated to prevent overheating. Tools required include a screwdriver for mounting the device, wire strippers for preparing the input and output wires, and a multimeter to check the power supply and signal integrity. Disconnect all power sources before starting the installation to avoid electrical shocks. When connecting the temperature sensor wires to the MTL – 4073, follow the wiring diagram carefully. For THC inputs, use the SCJ 01 hazardous – area connector with integral cjc sensor as required. Make sure all connections are secure to prevent signal loss or interference.
Maintenance suggestions
For routine maintenance of the MTL – 4073, perform visual inspections regularly. Check for any signs of physical damage, such as cracks on the housing or loose connectors. Clean the device using a dry, lint – free cloth to remove dust. Periodically, use a signal generator and a multimeter to test the converter’s functionality. Send a known input signal to the MTL – 4073 and verify that the output signal is within the expected range. If any errors occur, refer to the user manual for troubleshooting steps. When replacing any parts, use only genuine Eaton MTL spare parts to ensure the continued reliable operation of the device.
Service and guarantee commitment
Eaton MTL offers a comprehensive service and guarantee for the MTL – 4073. The product typically comes with a standard warranty period, during which Eaton MTL will repair or replace the unit free of charge if it is found to be defective due to manufacturing faults. This warranty reflects Eaton MTL’s confidence in the quality and reliability of the MTL – 4073.
In addition to the warranty, Eaton MTL provides extensive technical support. Their team of experts is available to assist customers with installation, commissioning, and troubleshooting. Customers can access detailed user manuals, technical documentation, and software updates through Eaton MTL’s official channels. This ensures that users can make the most of the MTL – 4073 and keep it operating at peak performance throughout its lifespan. Eaton MTL is committed to providing excellent customer service, ensuring that customers are satisfied with their investment in the MTL – 4073 temperature converter.
