Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | METSO D100308 |
| Manufacturer | METSO |
| Product Category | Industrial Control Module |
| Operating Voltage | 24V DC |
| Output Frequency | 50kHz |
| Communication Protocols | Modbus RTU/TCP, Profibus DP |
| Operating Temperature Range | -20°C to +60°C |
| Protection Class | IP65 |
| Dimensions | 120mm × 80mm × 40mm |
| Weight | 350g |
| Certifications | CE, RoHS |

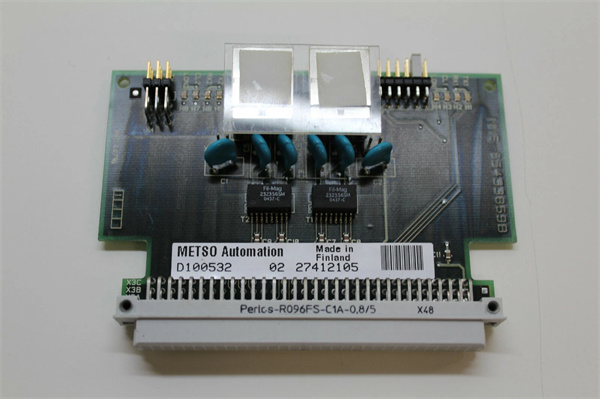

METSO D100532
Product Introduction
The METSO D100308 is a high-performance industrial control module designed for precise regulation and monitoring applications in various industrial environments. It features advanced signal processing capabilities and robust construction, making it ideal for manufacturing, mining, and process control applications.
Core Advantages and Technical Highlights
High-Speed Signal Processing
The METSO D100308 uses a 32-bit high-performance processor with optimized algorithms, achieving a signal processing cycle of less than 1ms. This ensures real-time response and precise control, as demonstrated in paper mill applications where it reduces thickness variation and improves product quality.
Multi-Protocol Compatibility
This module supports multiple communication protocols, including Modbus RTU/TCP and Profibus DP, enabling seamless integration with various automation systems and providing flexibility for system integrators.
Industrial-Grade Reliability
The METSO D100308 features a fully sealed design with an IP65 protection rating, protecting against dust and water splash. It operates reliably in a wide temperature range (-20°C to +60°C) and is designed to withstand vibrations, ensuring long-term stability in harsh environments.
User-Friendly Design
The module is designed for easy installation and maintenance, with a compact form factor suitable for space-constrained applications. It includes intuitive LED status indicators and detachable terminals for convenient on-site debugging.

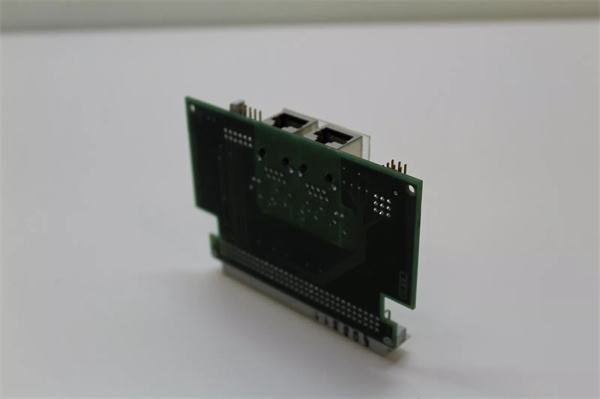

METSO D100532
Typical Application Scenarios
The METSO D100308 is widely used in:
-
Manufacturing: For precise control of production lines, including robotic arms and conveyor systems.
-
Mining: For controlling heavy machinery, reducing wear and improving efficiency.
-
Process Control: For monitoring and controlling pumps, valves, and mixers in chemical and petroleum industries.
Related Model Recommendations
-
METSO D200175: An analog input/output module for comprehensive industrial process control.
-
ABB AC500 PLC: A high-performance PLC that can be integrated with the METSO D100308 to build a robust automation system.
-
Siemens SINAMICS Drive System: Provides precise motor control and works synergistically with the METSO D100308 to optimize equipment efficiency.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the input signal lines and communication cables according to the manufacturer’s guidelines.
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Use dedicated debugging software to check and update module parameters as needed. Keep the module clean and free from dust to prevent overheating and ensure efficient operation.
Service and Guarantee Commitment
The METSO D100308 is backed by a comprehensive warranty and after-sales service commitment. METSO guarantees the quality of the product and provides a 12-month warranty period from the date of purchase. The company offers 24/7 technical support to ensure any issues are resolved promptly.
