Description
Hard-Numbers: Technical Specifications
- Detector Type: CCD (Charge-Coupled Device) linear or 2D array
- Spectral Range: 200 nm to 900 nm (typical OES+ configuration, UV-VIS-NIR)
- Optical Resolution: 0.2 nm to 0.5 nm (configuration-dependent)
- Wavelength Accuracy: ±0.05 nm (after calibration)
- Integration Time: 1 ms to 10 seconds (programmable)
- Data Interface: RS-232, RS-485, or Ethernet (tool-dependent)
- Update Rate: Up to 10 Hz for real-time process monitoring
- Operating Temperature: 5°C to 40°C (spectrometer unit), with optical probe rated to 150°C+
- Power Supply: 24 VDC (typical)
- Power Draw: 15-30 W typical (depending on cooling requirements)
- Fiber Optic Connection: SMA or UV-VIS fiber optic cable input (up to 10 meters)
- Dimensions: Approximately 200 mm × 150 mm × 80 mm (rack or panel mount configuration)
- Weight: ~1.5 kg (estimated)

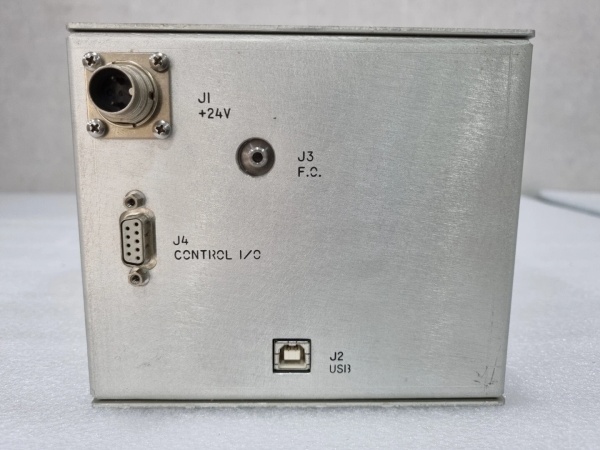

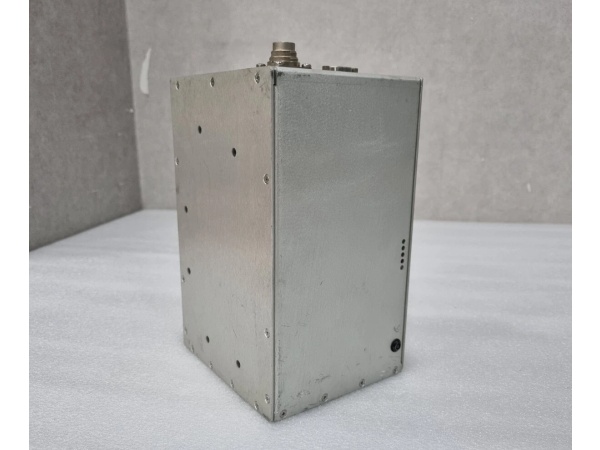

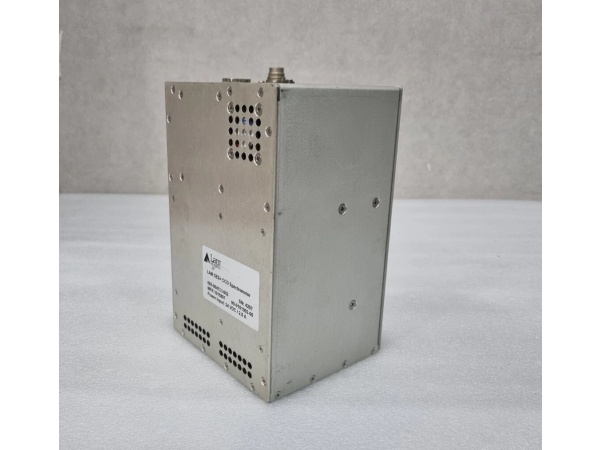

LAM 685-064724-002
The Real-World Problem It Solves
Plasma etch processes rely on precise endpoint detection—终止ping the etch exactly when the target material is cleared, without over-etching underlying layers. Without optical emission spectroscopy, you’re flying blind: you guess the endpoint based on timers, then discover you etched 10% too deep (scrapping wafers) or 5% short (rework). The OES+ spectrometer watches plasma emission lines in real-time—when a specific elemental line intensity changes (e.g., silicon drops, oxide appears), the system detects the endpoint and terminates the process automatically.
Where you’ll typically find it:
- Lam Research Etch Chambers: Dielectric etch, conductor etch, and deep silicon etch tools (FLEX, VECTOR, Kiyo series) for endpoint detection and process monitoring
- CVD/ALD Reactors: Plasma-enhanced deposition processes where monitoring precursor consumption or film growth byproducts improves uniformity
- Process Development Labs: Characterizing plasma chemistry, optimizing gas recipes, and troubleshooting process drift or contamination events
Bottom line: This board is your eyes inside the plasma chamber. When it fails, you lose real-time endpoint detection, forcing conservative recipe margins (over-etch to be safe) that kill yield, or risking under-etch that requires rework.
Hardware Architecture & Under-the-Hood Logic
The OES+ spectrometer is an optical analysis subsystem mounted on the etch or deposition tool. It consists of an optical probe (viewing port into the chamber), fiber optic light guide, spectrograph with diffraction grating, CCD detector, and signal processing electronics. The system communicates with the tool’s main controller via serial or Ethernet interface.
-
Plasma light collection: Optical probe with viewport views plasma emission through a sapphire or quartz window on the chamber. Lens focuses emitted light into fiber optic cable (UV-VIS grade, low OH- content for UV transmission).
-
Fiber transmission: Light travels via fiber optic cable (typically SMA terminated, 1-10 meters length) to the spectrometer unit. Fiber length impacts signal strength—longer runs attenuate UV wavelengths more severely.
-
Spectrograph dispersion: Light enters spectrograph through entrance slit (width determines resolution). Collimating mirror makes light parallel, then diffraction grating separates wavelengths spatially. Focusing mirror projects spectrum onto CCD array.
-
CCD detection: Linear or 2D CCD array captures spectrum intensity vs. wavelength. Each pixel corresponds to a specific wavelength bin. CCD integration time controls exposure—shorter integration for fast processes, longer for weak emission lines.
-
A/D conversion and signal processing: CCD analog output digitized by 16-bit or higher ADC. Onboard DSP (Digital Signal Processor) performs dark current subtraction, wavelength calibration, and intensity normalization. Processed spectrum stored as intensity array.
-
Endpoint detection algorithm: Software tracks specific emission line intensities (e.g., Si at 288 nm, F at 703 nm, O at 777 nm). Derivative-based or threshold-based algorithms detect rate changes indicating endpoint. Trigger signal sent to tool controller to terminate recipe step.
-
Communication interface: Serial (RS-232/RS-485) or Ethernet interface transmits spectrum data, endpoint triggers, and diagnostics to host controller. Commands received for integration time, wavelength range, and algorithm parameters.
-
Cooling system: Thermoelectric (Peltier) cooling or water cooling maintains CCD at stable temperature (typically -10°C to -20°C) to reduce dark current and noise. Cooling fan or chiller manages heat dissipation.
LAM 685-064724-002
Field Service Pitfalls: What Rookies Get Wrong
Misaligning the Optical Probe to the Plasma Viewport
Techs mount the optical probe but don’t align it perpendicular to the viewport or position it too far/close. Misalignment causes light loss, uneven illumination across the fiber core, and distorted spectra. Symptoms include weak signal intensity, noisy readings, and inconsistent endpoint detection—your spectrometer works, but the data is garbage.
Field Rule: Use the alignment jig supplied with the tool or a laser pointer centered in the fiber ferrule. Verify probe is perpendicular to the viewport surface with a machinist’s square. Set probe distance per tool manual (typically 5-10 mm from viewport). Lock down the probe mounting hardware with threadlocker after alignment—vibration from pumps and RF generators will walk it out over weeks.
Using the Wrong Fiber Optic Cable for UV Wavelengths
Rookies grab any fiber optic cable from the stockroom, not realizing UV transmission requires low OH- (hydroxyl) silica fibers. Standard high OH- fibers absorb UV light below 400 nm heavily, killing your signal for critical species like Si (288 nm) or F (703 nm). You’ll get a clean spectrum in the visible range but nothing in the UV where your endpoint lines live.
Quick Fix: Check fiber cable part number against OES+ specifications—look for “UV-VIS” or “Solarization Resistant” designations. Verify fiber core diameter matches spectrometer input (typically 200-600 μm). Test transmission by pointing fiber at a deuterium UV source and measuring output at 250 nm—anything below 50% transmission means replace the cable. Label UV cables clearly to prevent future mix-ups.
Neglecting to Perform Wavelength Calibration After Lamp Replacement
The spectrometer uses an internal calibration lamp (usually mercury-argon or neon) for wavelength reference. When this lamp ages or is replaced, wavelength accuracy drifts. A 0.1 nm shift might seem minor, but it puts your emission line tracking algorithm on the wrong pixel—endpoint triggers early or late, causing over-etch or under-etch.
Field Rule: Perform wavelength calibration after any lamp replacement, CCD temperature change, or if the tool was moved. Use the tool’s calibration routine—insert calibration reference (lamp or standard cell) and run auto-calibration. Verify by measuring known emission lines (e.g., Hg at 253.7 nm, 365.0 nm; Ar at 696.5 nm) and confirming peak positions within ±0.05 nm. Log calibration date and wavelength offsets in the maintenance log—track drift trends to predict lamp life.
Ignoring Fiber Connector Contamination at the Vacuum Feedthrough
Fiber connectors at the chamber viewport (vacuum feedthrough) get coated with process residues—fluoropolymers, silicon compounds, metal sputter. Rookies never clean them, assuming fiber is sealed. Contamination blocks light transmission, especially in UV where absorption is strongest. Signal degrades gradually, then suddenly drops when the connector clouds over completely.
Quick Fix: Inspect fiber connectors at both ends quarterly. Use 99% isopropyl alcohol and lint-free wipes—clean ferrule in circular motion from center outward, never back-and-forth. Inspect under a fiber microscope if available—look for scratches, pits, or residue. If damaged, re-terminate the fiber or replace the cable. For vacuum feedthroughs, purge with dry nitrogen during cleaning to prevent moisture ingress into the chamber.
Forgetting to Cool the CCD Before Starting Critical Measurements
CCD detectors generate thermal dark current that adds noise to the spectrum. Techs power on the spectrometer and immediately take calibration measurements while the CCD is still warm from ambient. Dark current varies with temperature, so your baseline drifts as the unit cools, throwing off intensity ratios and endpoint calculations.
Field Rule: Power on the spectrometer at least 15-30 minutes before critical calibrations or production runs. Verify CCD temperature has stabilized at setpoint (typically -10°C to -20°C) using the diagnostic readout. If the unit uses water cooling, confirm flow rate and chiller setpoint before starting. Log CCD temperature vs. time to characterize warm-up characteristics—some units need 45+ minutes to reach stable operating temperature.
