Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ICS TRIPLEX T9432 |
| Manufacturer | ICS TRIPLEX (part of Rockwell Automation) |
| Product category | Analog Input Module |
| Operating Voltage | 18-32 V DC |
| Number of Channels | 16 |
| Input Type | Isolated |
| Input Range | Voltage: -10 V to +10 V, 0 to 10 V, 1 to 5 V; Current: 4 to 20 mA, 0 to 20 mA |
| Accuracy | ±0.1% of full scale |
| Resolution | 16 bits |
| Sampling Rate | 100 Hz per channel |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 120 mm x 100 mm x 30 mm |
| Weight | 340 g |
| Certifications | IEC 61508, SIL 3 |

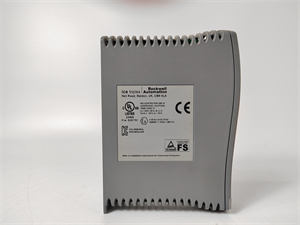

ICS TRIPLEX T9432
Product Introduction
The ICS TRIPLEX T9432 is a high-performance analog input module designed for industrial automation and control systems. It is part of the ICS TRIPLEX system, known for its robustness and reliability in critical applications. This module provides 16 isolated analog input channels, ensuring accurate and reliable signal processing for a wide range of industrial applications. It supports various input signal types, including voltage and current, and is suitable for measuring temperature, pressure, and flow rate. The T9432 is designed to operate in harsh environments, with a wide operating temperature range and high accuracy.
Core Advantages and Technical Highlights
High Precision and Reliability
The ICS TRIPLEX T9432 offers high-precision analog signal conversion with an accuracy of ±0.1% of full scale and a resolution of 16 bits. This level of precision ensures accurate data acquisition, making it ideal for demanding industrial applications.
Robust Design for Harsh Environments
Constructed with high-quality materials, the ICS TRIPLEX T9432 can operate reliably within a wide temperature range of -40°C to +85°C. It features isolated input channels to protect against electrical interference and ensure safety in high-voltage applications.
Advanced Signal Processing
The module supports a sampling rate of 100 Hz per channel, ensuring rapid and accurate data acquisition. It also includes comprehensive diagnostics for system health monitoring, enhancing overall system reliability.
Flexible Configuration
The ICS TRIPLEX T9432 supports various input ranges and signal types, allowing users to configure it according to their specific needs. It is compatible with other ICS TRIPLEX modules, enabling seamless integration into existing control systems.

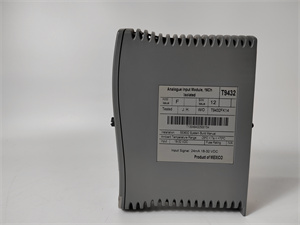

ICS TRIPLEX T9432
Typical Application Scenarios
The ICS TRIPLEX T9432 is widely used in various industrial sectors, including manufacturing, power generation, oil & gas, chemical processing, and water treatment. It is particularly suitable for applications requiring high precision and reliability, such as:
-
Manufacturing: Monitoring and controlling production processes.
-
Power Generation: Managing power plant operations and monitoring critical parameters.
-
Oil & Gas: Ensuring accurate measurement of temperature, pressure, and flow rate in harsh environments.
-
Chemical Processing: Providing reliable data acquisition for process control and safety systems.
Related Model Recommendations
-
ICS TRIPLEX T9451: A digital output module with 8 channels, suitable for controlling digital devices.
-
ICS TRIPLEX T9481: An analog output module with high precision and reliability, suitable for applications requiring multiple analog outputs.
-
ICS TRIPLEX T9100: A processor backplane module, providing a platform for integrating multiple ICS TRIPLEX modules.
-
ICS TRIPLEX T9300: An I/O backplane module, designed for expanding the system’s input/output capabilities.
-
ICS TRIPLEX T9801: An analog output module with high precision and reliability, suitable for applications requiring multiple analog outputs.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ICS TRIPLEX T9432, ensure the environment is free from excessive dust and moisture to maintain optimal performance. Verify that the power supply matches the module’s requirements (18-32 V DC) and that the operating temperature range (-40°C to +85°C) is suitable for the installation location. Follow the user manual for detailed installation instructions and ensure all connections are secure.
Maintenance Suggestions
Regular maintenance is crucial for extending the lifespan of the ICS TRIPLEX T9432. Perform routine inspections to check for loose connections or signs of wear. Clean the module periodically to prevent dust buildup and monitor its operation to detect any potential issues early. Replace any worn parts promptly to maintain performance, and ensure that spare parts are readily available to minimize downtime.
Service and Guarantee Commitment
The ICS TRIPLEX T9432 is backed by a comprehensive warranty, ensuring customer satisfaction and peace of mind. Our company is committed to providing exceptional after-sales service, with a dedicated technical support team available to assist with any issues or inquiries. We stand behind the quality of our products and are dedicated to ensuring reliable performance and timely support for our customers.
