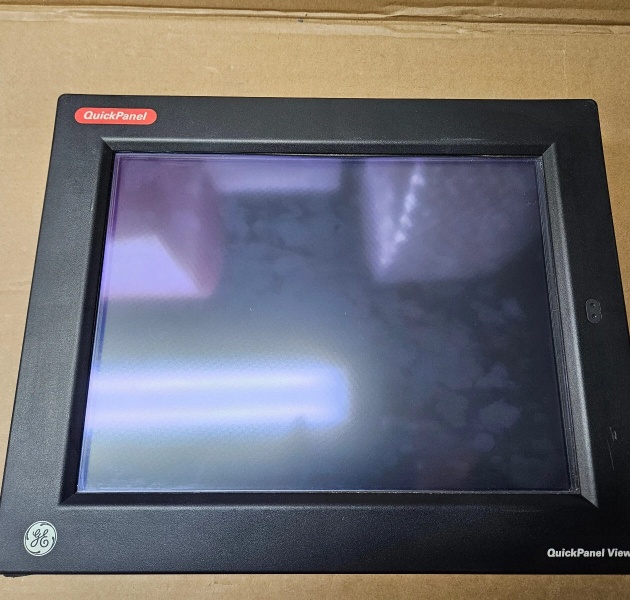

GE IC754VSF15CTD-JH Human-Machine Interface (HMI)

Product Overview

The GE IC754VSF15CTD-JH is a high-performance human-machine interface (HMI) belonging to GE’s VersaMax系列, a flagship product line renowned for integrating intuitive operation with robust industrial-grade reliability. As a critical interaction hub between operators and automation systems, GE IC754VSF15CTD-JH enables real-time monitoring, data visualization, and control command execution, bridging the gap between complex industrial processes and human operators. Its 15-inch color touchscreen design, combined with powerful processing capabilities, makes it an ideal choice for medium to large-scale automation projects where clear data presentation and efficient operation are paramount.

What distinguishes GE IC754VSF15CTD-JH is its seamless compatibility with GE’s entire portfolio of PLCs and DCS systems, as well as third-party industrial control equipment. Whether deployed in manufacturing workshops, power distribution centers, or water treatment facilities, GE IC754VSF15CTD-JH delivers consistent performance, reducing operator training time through its user-friendly interface while enhancing operational efficiency by providing instant access to key process data. This HMI embodies GE’s commitment to smart manufacturing, offering a scalable and future-proof solution for industrial control environments.

Technical Specifications

Parameter Name | Parameter Value ———|——– Product Model | IC754VSF15CTD-JH Manufacturer | GE General Electric Product Type | Industrial Human-Machine Interface (HMI) Series | VersaMax Series Display Size | 15-inch Display Type | Color TFT LCD, Resistive Touchscreen Resolution | 1024 × 768 pixels Brightness | 350 cd/m² Contrast Ratio | 800:1 Processing Unit | 1.2 GHz Dual-Core ARM Cortex-A9 Memory | 1 GB RAM, 8 GB Flash Storage Operating System | Windows Embedded Standard 7 Communication Ports | 2 × Ethernet (RJ45), 2 × USB 2.0, 1 × RS-232, 1 × RS-485 Operating Temperature Range | 0°C to 50°C Storage Temperature Range | -20°C to 60°C Protection Rating | IP65 (Front Panel) Installation Method | Panel Mount

IC754VSF15CTD-JH

Main Features and Advantages

Intuitive Operation Interface: IC754VSF15CTD-JH features a 15-inch high-resolution resistive touchscreen with excellent tactile feedback, supporting multi-touch gestures such as zoom and scroll for efficient data navigation. The customizable user interface allows operators to configure dashboards, trend charts, and alarm displays according to specific process requirements, minimizing the time spent on information retrieval and operation execution.

Strong Compatibility and Connectivity: Equipped with multiple communication ports and support for a wide range of industrial protocols including Modbus, Ethernet/IP, PROFINET, and GE’s proprietary Genius protocol, IC754VSF15CTD-JH seamlessly integrates with GE’s VersaMax, RX3i, and 90-30 PLCs, as well as third-party control systems from Siemens, Allen-Bradley, and Schneider. This eliminates compatibility issues and reduces integration costs for mixed-brand automation environments.

Reliable Industrial-grade Performance: Designed to withstand harsh industrial conditions, IC754VSF15CTD-JH has an IP65 front panel rating, protecting it from dust, water splashes, and oil contamination common in manufacturing and processing environments. The dual-core ARM processor ensures smooth operation even when running complex applications with real-time data processing and high-resolution graphics, while the stable Windows Embedded OS minimizes system crashes and downtime.

Comprehensive Data Management and Alarm Functions: IC754VSF15CTD-JH supports automatic data logging to internal flash storage or external USB devices, enabling historical data analysis for process optimization and compliance reporting. The advanced alarm system provides instant visual and audible alerts for abnormal process conditions, with customizable alarm levels, priorities, and notification methods to ensure operators can respond quickly to potential issues.

Application Field

In discrete manufacturing industries such as automotive parts production and electronic device assembly, IC754VSF15CTD-JH serves as the central operation terminal for production lines. Operators use its touchscreen to monitor machine status, adjust process parameters, track production counts, and view quality control data in real time, ensuring efficient and consistent production. The customizable dashboards allow supervisors to access production KPIs at a glance, facilitating quick decision-making and process improvement.

In the process industry, including chemical processing, oil and gas refining, and water treatment, IC754VSF15CTD-JH plays a critical role in monitoring and controlling continuous processes. Its ability to display complex process flows, trend charts of temperature, pressure, and flow rates, and real-time alarm information ensures operators can maintain process stability and safety. The IP65 protection rating makes it suitable for deployment in field control cabinets near production equipment, reducing the need for remote operation and improving response speed to process deviations.

In power generation and distribution systems, IC754VSF15CTD-JH is used to monitor and control generators, transformers, and switchgear. It provides operators with real-time data on voltage, current, power factor, and equipment status, enabling efficient management of power generation and distribution. The reliable performance and stable connectivity ensure uninterrupted operation, which is crucial for maintaining power supply stability and preventing costly outages.

Related Products

IC754VSF12CTD-JH: 12-inch variant of IC754VSF15CTD-JH with the same core performance, ideal for applications with limited installation space such as small-scale production lines and compact control cabinets.

IC754VSF19CTD-JH: 19-inch large-screen version, offering higher resolution (1280 × 1024) for complex process visualization, suitable for control rooms monitoring multiple production lines simultaneously.

IC754VSI15CTD-JH: Enhanced version of IC754VSF15CTD-JH with integrated industrial IoT (IIoT) capabilities, supporting cloud data upload and remote monitoring for smart factory applications.

IC200UAL006: VersaMax PLC CPU module, perfectly matched with IC754VSF15CTD-JH to form a complete control and operation system for medium-scale automation projects.

IC754VSA15CTD-JH: Panel-mounted HMI with the same display specifications as IC754VSF15CTD-JH but with additional analog input ports for direct connection to sensors.

IC693ACC302: Communication adapter module that extends IC754VSF15CTD-JH‘s connectivity to legacy GE 90-30 PLC systems, enabling seamless upgrade of old automation setups.

IC754VSF15CTD-PWR: Dedicated power supply module for IC754VSF15CTD-JH, providing stable 24V DC output with surge protection to ensure reliable HMI operation.

IC754VSF15CTD-KIT: Accessory kit for IC754VSF15CTD-JH, including mounting brackets, touchscreen protectors, and USB programming cables for easy installation and maintenance.

Installation and Maintenance

Pre-installation preparation: Before installing IC754VSF15CTD-JH, confirm that the panel cutout dimensions match the HMI’s physical size (350mm × 260mm × 50mm) to ensure a secure fit. The installation environment should be free from direct sunlight, strong vibrations, and corrosive gases, with ambient temperature within 0°C to 50°C. Verify the compatibility of the connected PLC or DCS system and prepare the appropriate communication cables (Ethernet, RS-232, or RS-485) based on the selected protocol. Ensure the power supply provides stable 24V DC (±10%) to avoid damaging the HMI’s internal components.

Maintenance recommendations: Conduct monthly inspections of IC754VSF15CTD-JH, focusing on cleaning the touchscreen with a soft, lint-free cloth dampened with isopropyl alcohol to remove dust and oil stains—avoid using harsh chemicals that may scratch the display. Check the tightness of communication and power connections quarterly to prevent loose contacts and signal interference. Utilize GE’s Proficy HMI/SCADA software to perform annual firmware updates for IC754VSF15CTD-JH, ensuring access to the latest features and security patches. In case of touchscreen unresponsiveness, first calibrate the screen via the built-in utility before considering hardware replacement to minimize maintenance costs.

IC754VSF15CTD-JH

Product Guarantee

GE General Electric offers a 36-month comprehensive quality guarantee for IC754VSF15CTD-JH, covering manufacturing defects, component failures, and touchscreen performance issues under normal operating conditions. Our global technical support team provides 24/7 assistance, including remote troubleshooting, software configuration guidance, and on-site service for complex issues. Customers receive free access to GE’s Proficy configuration software and firmware updates for the entire guarantee period, ensuring IC754VSF15CTD-JH remains compatible with evolving automation technologies. For customers with priority service agreements, we guarantee a 72-hour replacement service for defective IC754VSF15CTD-JH units, minimizing operational downtime. This guarantee reflects our confidence in the product’s reliability and our commitment to delivering exceptional value to industrial customers worldwide.
