Honeywell C7035A1023 Product Description
1. Product Overview
The Honeywell C7035A1023 is a highly specialized and reliable ultraviolet (UV) flame sensor, designed with precision to meet the demanding requirements of flame detection in various industrial and commercial combustion applications. It plays a crucial role in ensuring the safe and efficient operation of burners by accurately detecting the presence of flames through the sensing of ultraviolet radiation emitted during the combustion process.
2. Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | C7035A1023 |
| Manufacturer | Honeywell |
| Product Category | UV Flame Sensor |
| Application | Coal – fired burners, gas – fired burners, oil – fired burners |
| Mounting | Integral nut for 1 – inch sighting pipe |
| Dimensions (inches) | 1.5 in. diameter x 4.125 in. long |
| Dimensions (millimeters) | 38 mm diameter x 105 mm long |
| Lead Length (inches) | 72 in. |
| Lead Length (millimeters) | 1829 mm |
| Electrical Connections | 2 NEC Class 1 lead wires |
| Ambient Temperature Range (°F) | 0°F to 250°F |
| Ambient Temperature Range (°C) | – 18°C to + 121°C |
| Vibration | 0.5 g max |
| Sealing Pressure | Up to 5 psi (34.5 kPa) when correctly installed |
| Sensing Tube | Field – replaceable ultraviolet sensing tube |
| Protection Class | Meets outdoor rain – tight requirements of Underwriters Laboratories Inc., NEMA 4 and NEMA 4X |
| Weight | 0.17 kg (approx.) |
| Warranty | 12 months
3. Product Introduction |

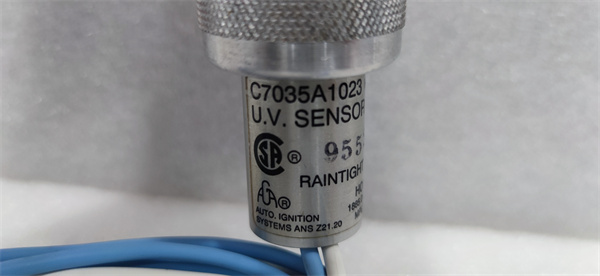

Honeywell C7035A1023
This compact yet powerful flame sensor is engineered to be a vital component in flame safeguard systems. Its design allows for easy integration into existing burner setups, making it a popular choice for both new installations and retrofitting projects. The C7035A1023 is specifically calibrated to detect the unique ultraviolet signatures emitted by flames in coal, gas, and oil – fired burners. This ensures accurate and rapid flame detection, which is essential for preventing dangerous situations such as unburned fuel accumulation and potential explosions.
The sensor’s body is constructed with high – quality materials that can withstand the harsh environments typically associated with combustion applications. It is designed to operate reliably even in the presence of high temperatures, vibrations, and exposure to various contaminants.
4. Core Advantages and Technical Highlights
4.1 High – Sensitivity UV Detection
The C7035A1023 is equipped with a state – of – the – art ultraviolet sensing tube that offers exceptional sensitivity to the ultraviolet radiation emitted by flames. This high sensitivity enables it to detect even the faintest of flames, ensuring that the burner system can respond quickly to changes in the combustion state. Whether it’s a small pilot flame or a large – scale main burner flame, the sensor can accurately identify the presence of the flame and transmit the corresponding signal to the control system.
4.2 Robust Mounting Design
Featuring an integral nut for a 1 – inch sighting pipe, the C7035A1023 has a robust and secure mounting mechanism. This design not only simplifies the installation process but also ensures that the sensor remains firmly in place during operation, even in the presence of vibrations. The secure mounting is crucial for maintaining the sensor’s alignment with the flame, which is essential for accurate flame detection.
4.3 Protective Shield for Sensing Tube
To enhance the durability and reliability of the sensing tube, the C7035A1023 is equipped with a protective shield. This shield helps to prevent damage to the sensing tube from external factors such as mechanical impacts, heat, and chemical contaminants. By protecting the sensitive sensing element, the shield extends the lifespan of the sensor and reduces the need for frequent replacements, resulting in cost savings over time.
4.4 Weatherproof and Dustproof Design
Meeting the outdoor rain – tight requirements of Underwriters Laboratories Inc., NEMA 4, and NEMA 4X, the C7035A1023 is well – protected against environmental factors. It can withstand exposure to rain, dust, and other harsh weather conditions, making it suitable for use in both indoor and outdoor combustion applications. This weatherproof and dustproof design ensures that the sensor can operate reliably in a wide range of environments without the risk of performance degradation due to environmental factors.
4.5 Parallel Wiring for Difficult Sighting Applications
For applications where sighting the flame may be challenging, the C7035A1023 allows for wires to be connected in parallel. This parallel wiring feature provides flexibility in installation and can improve the sensor’s performance in situations where the flame may be obstructed or difficult to detect directly. By using parallel wiring, the sensor can still accurately detect the flame, ensuring the safe and efficient operation of the burner system.
4.6 High – Pressure Sealing
When correctly installed, the C7035A1023 can seal against pressures as high as 5 psi (34.5 kPa). This high – pressure sealing capability is important in applications where the burner system may be subject to varying pressures during operation. The ability to maintain a tight seal ensures that the sensor remains functional and reliable, even in high – pressure environments.
4.7 Field – Replaceable Sensing Tube
The field – replaceable ultraviolet sensing tube is a convenient and cost – effective feature of the C7035A1023. In the event that the sensing tube becomes damaged or its performance deteriorates over time, it can be easily replaced in the field without the need to replace the entire sensor unit. This reduces downtime and maintenance costs, as technicians can quickly and easily swap out the sensing tube and get the burner system back up and running.
5. Typical Application Scenarios
5.1 Power Generation Plants
In power generation plants, where coal – fired, gas – fired, or oil – fired boilers are used to generate electricity, the C7035A1023 is an essential component. It is used to monitor the flames in the burners of these boilers, ensuring that the combustion process is stable and efficient. By accurately detecting the presence of flames, the sensor helps to prevent boiler shutdowns due to flame failures, which can lead to costly disruptions in power generation.
5.2 Industrial Furnaces
Industrial furnaces, such as those used in the metalworking, glass manufacturing, and ceramic industries, often rely on the C7035A1023 for flame detection. These furnaces operate at high temperatures and require precise control of the combustion process to ensure product quality. The sensor’s ability to detect flames accurately and quickly allows for real – time adjustments to the fuel and air supply, optimizing the combustion process and reducing energy consumption.
5.3 Commercial Heating Systems
In commercial buildings, such as hotels, hospitals, and office buildings, the C7035A1023 can be used in gas – fired or oil – fired heating systems. It monitors the flames in the burners of these systems, ensuring safe and efficient operation. By detecting any flame abnormalities, such as misfires or incomplete combustion, the sensor can trigger alarms and shut down the system if necessary, protecting the building and its occupants from potential hazards.
Honeywell C7035A1023
6. Installation, Commissioning and Maintenance Instructions
6.1 Installation Preparation
Select a suitable location on the 1 – inch sighting pipe for mounting the C7035A1023. Ensure that the location provides a clear line of sight to the flame and is free from obstructions.
Check the integrity of the sensor and all its components, including the sensing tube and the protective shield, before installation.
Prepare the 2 NEC Class 1 lead wires for connection to the sensor and the control system. Use wires of the appropriate gauge to handle the electrical current.
Ensure that the installation area is clean and free from dust, debris, and moisture to prevent interference with the sensor’s operation.
6.2 Commissioning
Mount the C7035A1023 on the 1 – inch sighting pipe using the integral nut. Tighten the nut securely to ensure a stable and accurate alignment with the flame.
Connect the 2 NEC Class 1 lead wires to the sensor according to the wiring diagram provided in the product manual. Make sure the connections are tight and properly insulated to prevent electrical shorts.
Power on the burner system and the control system associated with the C7035A1023. Observe the sensor’s response to the presence of the flame. The sensor should detect the flame and transmit a signal to the control system within a short period.
Use a calibration tool, if available, to verify the accuracy of the sensor’s flame detection. Adjust the calibration settings if necessary to ensure optimal performance.
6.3 Maintenance
Regularly inspect the C7035A1023 for any signs of physical damage, such as cracks in the sensor body, damage to the protective shield, or wear on the sensing tube. If any damage is detected, replace the affected components immediately.
Clean the sensor’s surface periodically to remove any dust, dirt, or contaminants that may have accumulated. Use a soft, dry cloth or a mild cleaning solution to clean the sensor, taking care not to damage the sensing tube or other components.
Check the integrity of the electrical connections regularly. Ensure that the wires are not frayed, loose, or corroded. If any issues are found, repair or replace the wires as needed.
Monitor the sensor’s performance over time. If there are any signs of reduced sensitivity or inaccurate flame detection, consider replacing the sensing tube. Since the sensing tube is field – replaceable, this can be done quickly and easily by trained technicians.
Periodically review the product manual and any updates or bulletins issued by Honeywell to stay informed about any recommended maintenance procedures or product improvements.
7. Service and Guarantee Commitment
Honeywell offers a 12 – month warranty for the C7035A1023, providing customers with peace of mind in the event of any manufacturing defects. In case of product failure within the warranty period, Honeywell’s dedicated technical support team is available to provide prompt assistance. They can help with troubleshooting, and if necessary, arrange for the repair or replacement of the sensor, subject to the terms and conditions of the warranty.
Customers can access comprehensive installation and operation manuals on Honeywell’s official website. These manuals offer detailed, step – by – step instructions for installation, commissioning, and maintenance of the C7035A1023. Additionally, Honeywell may offer training programs for customers who want to enhance their understanding of the proper use and integration of this UV flame sensor in combustion applications. This support ensures that customers can maximize the performance and lifespan of the C7035A1023, while also maintaining the highest standards of safety and efficiency in their burner systems.
