Description
Hard Numbers: Technical Specifications
- Processor: Intel Atom E3827 (1.74 GHz, Dual-Core)
- Memory: 2 GB DDR3L SDRAM (Onboard)
- Storage: 8 GB eMMC Flash (Soldered, Non-removable)
- Serial Ports: 4x RS-232/422/485 (Software Selectable)
- Ethernet: 2x 10/100/1000Base-T (RJ-45)
- Protocol Support: DNP3.0, Modbus RTU/TCP, IEC 60870-5-101/104
- Power Input: 9-32 V DC (Wide Range, Redundant Capable)
- Power Draw: 12W Typical, 18W Max @ 24V DC
- Operating Temperature: -40°C to +85°C (Class I Div 2 Rated)
- Isolation Rating: 1500 V AC (I/O to Chassis Ground)

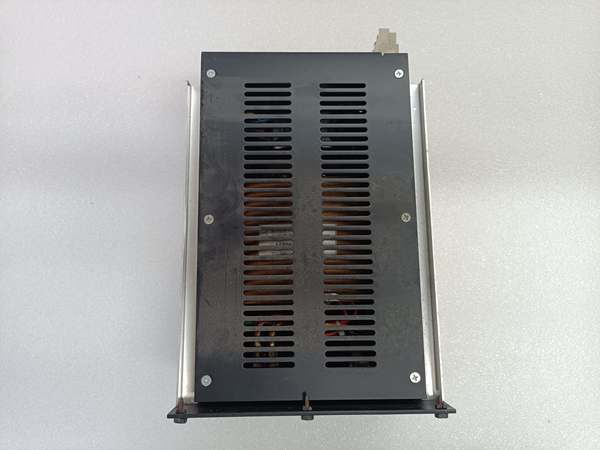

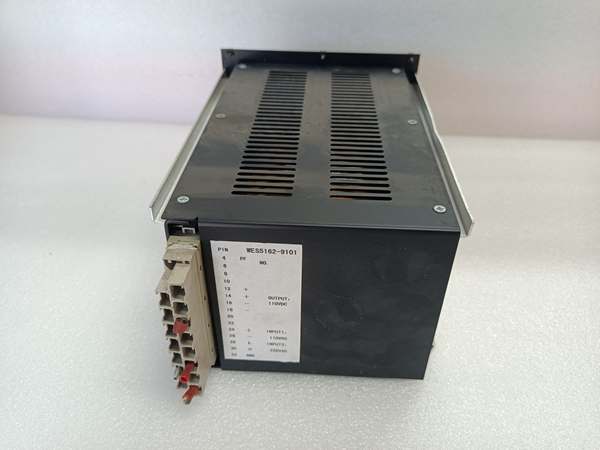

WES5162-9101
The Real-World Problem It Solves
Standard commercial PCs can’t survive the electrical noise and temperature swings inside a substation control house or a turbine enclosure. This board provides a deterministic, fanless computing platform that bolts directly into a rack. It eliminates the need for fragile desktop towers and unreliable CF card boot drives in environments where a single crash costs millions in downtime.
Where you’ll typically find it:
- In GE EX2100 Excitation Control Cabinets, regulating generator voltage.
- Inside D20/D200 Remote Terminal Units (RTUs) at transmission substations.
- On oil and gas pipelines, acting as the primary SCADA data concentrator.
It provides the processing muscle for grid automation without the mechanical failure points of spinning disks or cooling fans.
Hardware Architecture & Under-the-Hood Logic
This is a purpose-built industrial computer, not a general-purpose motherboard. It lacks a BIOS in the traditional sense, often booting from a custom RTOS or hardened Linux image stored on soldered eMMC. The board is designed for data acquisition and control, not user interaction.
- Data Acquisition: The 4 serial ports interface directly with protection relays and meters, handling protocol translation (e.g., converting Modbus RTU to DNP3 TCP).
- Processing Core: The Intel Atom E3827 handles control algorithms (like excitation regulation) and network routing without generating enough heat to require a fan.
- Deterministic Output: Control signals are sent via the Ethernet ports or serial interfaces to actuators and breakers with microsecond-level precision.

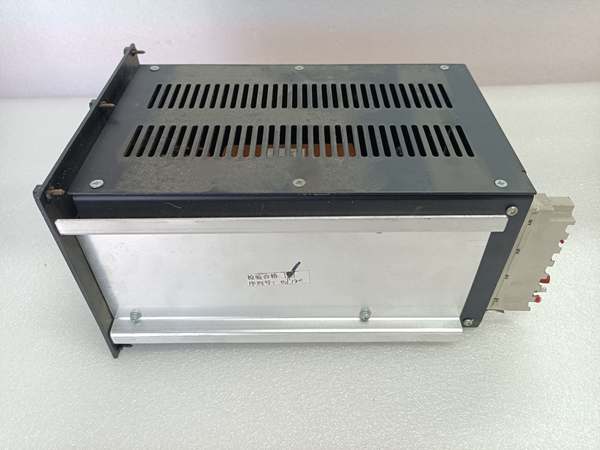

WES5162-9101
Field Service Pitfalls: What Rookies Get Wrong
Incorrect Power Supply Sizing
Rookies assume any 24V power supply will work. They overlook the inrush current when the board cold-starts, which can be triple the running wattage.
- Field Rule: Size the power supply for at least 25W on the 24V rail. If the board resets randomly during grid fluctuations, your power supply is likely sagging under load.
Ignoring Serial Port Ground Isolation
Techs connect the RS-485 network without isolating the grounds. A ground loop forms between two different pieces of equipment, frying the UART transceivers on the board.
- Quick Fix: Always use isolated repeaters on long RS-485 runs. If you see burnt pins on the serial port header, you’ve got a ground loop problem. Install ferrite beads on the cables.
Firmware Version Mismatch
They grab the latest firmware from the GE website and flash it onto a board in a legacy system. The new firmware breaks compatibility with the old D20 RTU backplane or excitation software.
- Field Rule: Match the firmware version to the system’s baseline configuration. Do not “upgrade” unless you are prepared to reconfigure the entire rack. If the FAULT light stays solid red after a flash, you likely have a version mismatch.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
