GE SR745-W2-P1-G1-HI-A-L-R-E

Product Introduction

The GE SR745-W2-P1-G1-HI-A-L-R-E is a high – end transformer protection relay within GE’s esteemed SR745 series. Engineered with precision, this relay serves as a crucial safeguard for transformers in diverse power systems. It is designed to detect and respond to a wide range of electrical faults and abnormal conditions, ensuring the reliable operation of transformers and minimizing the risk of costly downtime and equipment damage. By providing comprehensive protection and real – time monitoring capabilities, it plays a vital role in maintaining the stability and integrity of power distribution networks.

Core Advantages and Technical Highlights

Comprehensive Protection Arsenal: The SR745 – W2 – P1 – G1 – HI – A – L – R – E comes equipped with an extensive suite of protection functions. Overcurrent protection safeguards against excessive current flows, which could be caused by short circuits or overloads in the transformer or connected circuits. Overvoltage and undervoltage protection mechanisms prevent damage due to voltage fluctuations outside the safe operating range. Differential protection is highly effective in detecting internal faults within the transformer by comparing the currents entering and leaving the transformer windings. Frequency protection monitors the power system frequency and takes action when it deviates from the normal range. Additionally, overexcitation protection shields the transformer from the harmful effects of over – fluxing, and overload protection guards against sustained overloading conditions that could lead to overheating and premature failure of the transformer. For example, in a large industrial substation, if a short – circuit occurs in the transformer’s secondary winding, the overcurrent protection function of the SR745 – W2 – P1 – G1 – HI – A – L – R – E will quickly detect the abnormal current surge and trip the circuit breakers to isolate the fault, preventing extensive damage to the transformer.

Advanced Monitoring and Analysis: This relay is capable of continuously monitoring a plethora of system variables. It can accurately measure and record parameters such as voltage, current, power, energy consumption, and frequency rate – of – change. By analyzing these data, operators can gain valuable insights into the health and performance of the transformer. For instance, monitoring the total harmonic distortion (THD) levels helps in identifying potential power quality issues, which could affect the efficiency and lifespan of the transformer. The relay also features hottest spot monitoring, which keeps a close eye on the highest temperature point within the transformer. Early detection of overheating through this feature allows for timely maintenance interventions, preventing catastrophic failures. In a power generation plant, the relay’s monitoring capabilities enable operators to optimize the operation of the transformers, ensuring they operate at peak efficiency and reliability.

Flexible and Configurable Design: Leveraging GE Multilin’s FlexLogic™ technology, the SR745 – W2 – P1 – G1 – HI – A – L – R – E offers a high degree of flexibility in programming and configuration. This technology, combined with its set – point functionality, allows users to create a customized programming structure that precisely meets the specific requirements of their power systems. Whether it’s a small – scale distribution transformer or a large – capacity power transformer in a utility grid, the relay can be configured to provide the most appropriate protection and monitoring functions. For example, in a complex industrial power network with multiple transformers of different sizes and operating conditions, the FlexLogic™ technology enables the relay to be tailored to each transformer’s unique characteristics, providing targeted protection and monitoring.

Robust Communication and Connectivity: Equipped with multiple communication interfaces including Ethernet, RS232, and RS485 (supporting protocols like DNP3), the SR745 – W2 – P1 – G1 – HI – A – L – R – E enables seamless integration with supervisory control and data acquisition (SCADA) systems, energy management systems, and other intelligent devices in the power network. This connectivity allows for real – time data transfer, remote monitoring, and remote configuration of the relay. In a smart grid environment, operators can remotely access the relay’s data, view its status, and adjust its settings from a central control center. This not only improves operational efficiency but also enables timely response to any emerging issues in the transformer system.

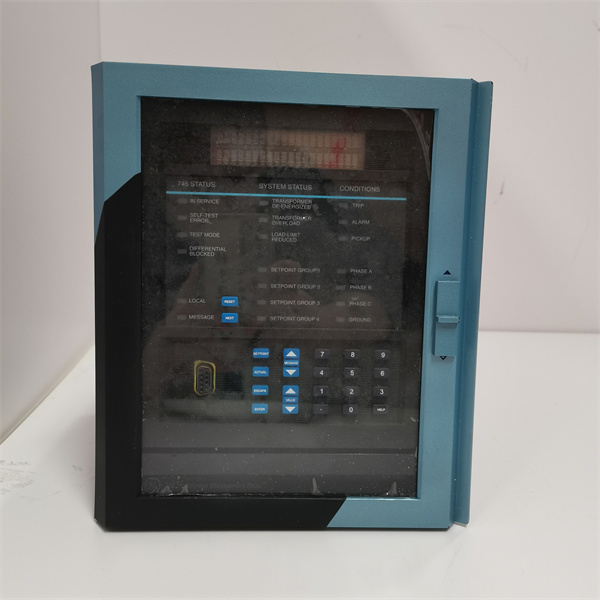

Enhanced User Interface: The relay features an enhanced 40 – character LCD display, which provides clear and detailed information about the relay’s status, measured parameters, and fault events. The large – sized display, along with an expanded keypad, makes it extremely user – friendly for manual setpoint entry and navigation through the relay’s various menus. This design significantly improves the ease of use, especially during installation, commissioning, and day – to – day maintenance. For example, technicians can quickly and accurately input protection thresholds, trip delays, and other configuration parameters using the intuitive keypad and view the results on the clear LCD display.

Typical Application Scenarios

Power Generation Plants: In power generation plants, transformers are used to step up the voltage of the generated electricity for efficient transmission over long distances. The SR745 – W2 – P1 – G1 – HI – A – L – R – E is deployed to protect these critical transformers. It monitors the electrical parameters of the transformers during the power generation process, protecting them from faults such as overcurrent due to sudden load changes, overvoltage caused by generator excitation system malfunctions, and differential faults within the transformer windings. In a coal – fired power plant, for instance, the relay ensures the reliable operation of the step – up transformers, safeguarding the power generation process and preventing disruptions to the grid connection.

Industrial Substations: Industrial facilities often have their own dedicated substations to distribute power to various production areas. The SR745 – W2 – P1 – G1 – HI – A – L – R – E is an ideal choice for protecting the transformers in these substations. It can handle the complex electrical conditions in industrial environments, where there may be frequent load changes, harmonics from industrial equipment, and potential for electrical faults. In a steel manufacturing plant, for example, the relay protects the transformers that supply power to the high – power electric furnaces and other critical machinery. It detects and responds to overcurrent events caused by short – circuits in the furnaces or overloads due to the startup of large motors, ensuring the continuous operation of the production line.

Commercial and Residential Distribution Networks: In commercial and residential areas, distribution transformers are used to step down the high – voltage electricity from the grid to a usable voltage level for end – users. The SR745 – W2 – P1 – G1 – HI – A – L – R – E provides essential protection for these distribution transformers. It guards against overvoltage and undervoltage conditions that could affect the electrical appliances in homes and businesses. In a large shopping mall, the relay protects the distribution transformers that power the lighting, air – conditioning systems, and other electrical loads. By ensuring the stable operation of these transformers, it helps maintain a comfortable shopping environment for customers and reliable operation for the mall’s tenants.

GE SR745-W2-P1-G1-HI-A-L-R-E

Related Model Recommendations

GE SR745 – W2 – P5 – G1 – HI – A: This model is also a part of the SR745 series and offers similar comprehensive protection functions for transformers. However, it may have different input/output configurations or additional features that can be complementary to the SR745 – W2 – P1 – G1 – HI – A – L – R – E. In a large – scale power distribution network with a mix of different types of transformers, using both models can provide a more diverse and comprehensive protection solution. For example, the SR745 – W2 – P5 – G1 – HI – A may have more advanced metering capabilities, which can be useful for detailed energy consumption analysis in certain areas of the network, while the SR745 – W2 – P1 – G1 – HI – A – L – R – E focuses on specific protection and monitoring functions for other types of transformers.

GE UR Series Communication Gateway: The UR series communication gateway can be used in conjunction with the SR745 – W2 – P1 – G1 – HI – A – L – R – E to enhance its communication capabilities. It supports multiple communication protocols and can act as a bridge between the relay and other devices in the power system. In a complex smart grid infrastructure, the UR series gateway enables seamless integration of the relay with other intelligent electronic devices (IEDs), SCADA systems, and cloud – based platforms. This allows for centralized data management, remote control, and advanced analytics, further improving the overall efficiency and reliability of the power network.

GE Enervista 745 Software: The Enervista 745 software is specifically designed to work with the SR745 series relays. It provides a user – friendly interface for setting up the relay, editing setpoints, and analyzing the data collected by the relay. With this software, operators can easily configure the protection and monitoring functions of the SR745 – W2 – P1 – G1 – HI – A – L – R – E according to the specific requirements of their power system. It also helps in visualizing the transformer’s performance data, detecting trends, and generating reports for maintenance and asset management purposes. In a utility company’s control center, the Enervista 745 software allows operators to efficiently manage multiple SR745 – series relays across the distribution network, optimizing the operation and maintenance of the transformers.

Installation, Commissioning and Maintenance Instructions

Installation Preparation: Before installing the SR745 – W2 – P1 – G1 – HI – A – L – R – E, it is essential to disconnect the power supply to the transformer and associated circuits to avoid electrical accidents. Verify that the installation location is clean, dry, and free from excessive vibration and electromagnetic interference. Check that the control power supply voltage falls within the relay’s HI range (90 – 300 VDC / 70 – 265 VAC at 48 – 62 Hz). Mount the relay on a standard 19 – inch panel using the provided mounting hardware, ensuring that there is sufficient clearance around the relay for proper ventilation and access for future maintenance. Make sure that the chassis door can open and close freely without obstruction from other components.

Commissioning: After installation, carefully connect the current and voltage transformers to the relay’s input terminals as per the detailed wiring diagram provided in the product documentation. Power on the control supply and use the enhanced 40 – character LCD or the Enervista 745 software to configure the relay’s parameters. Set the protection thresholds, trip delays, communication settings, and other relevant parameters according to the requirements of the power system. Perform comprehensive functional tests for each protection feature by simulating various fault conditions, such as overcurrent, overvoltage, and differential faults. Verify that the relay trips correctly and sends out appropriate alarm signals. Check the communication links to ensure that data is transmitted accurately to the connected monitoring systems.

Maintenance Suggestions: Regularly conduct visual inspections of the relay to check for any signs of loose connections, dust accumulation, or physical damage. Clean the relay’s exterior and ventilation slots periodically using compressed air to maintain proper cooling and prevent the ingress of dust and debris. Periodically verify the accuracy of the relay’s measurements by comparing its readings with calibrated test equipment. Review the fault records and event logs stored in the relay to identify any recurring issues or potential problems. Ensure that the relay’s firmware is kept up – to – date by checking GE’s official website for the latest software updates. In case of a fault or malfunction, refer to the detailed user manual or contact GE’s technical support team for prompt troubleshooting and resolution.

Service and Guarantee Commitment

GE offers a 12 – month warranty for the SR745 – W2 – P1 – G1 – HI – A – L – R – E, which covers manufacturing defects and component failures under normal operating conditions. The company’s global technical support team is available 24/7 to provide assistance with installation, commissioning, and troubleshooting. Customers can access a wealth of resources, including detailed user manuals, technical specifications, and software updates, through GE’s online portal. For critical applications, GE also offers extended warranty options and on – site service agreements to ensure the relay’s optimal performance and minimize downtime. In the event of a warranty claim, GE will promptly arrange for the repair or replacement of the faulty unit, ensuring customer satisfaction and the continuous, reliable operation of the transformer protection system.
