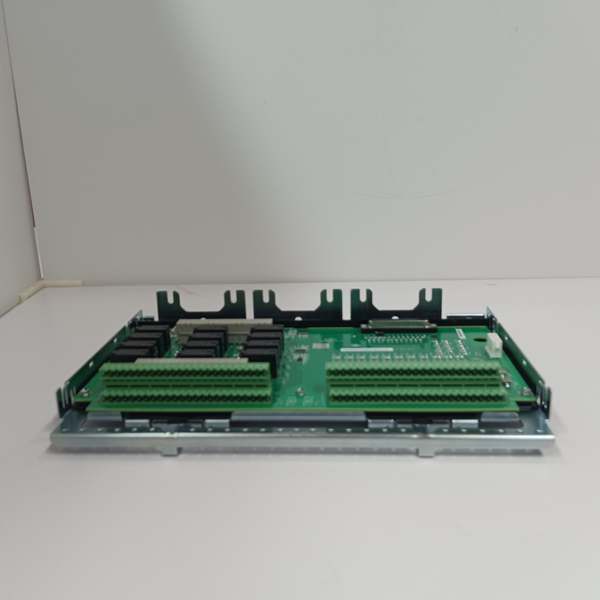

GE IS410TRLYS1B | Mark VIeS Relay Output with Coil Sensing – TMR Safety
GE IS410TRLYS1B | Mark VIeS Relay Output with Coil Sensing – TMR Safety - Image 2
GE IS410TRLYS1B | Mark VIeS Relay Output with Coil Sensing – TMR Safety - Image 3
GE IS410TRLYS1B | Mark VIeS Relay Output with Coil Sensing – TMR Safety - Image 4

GE IS410TRLYS1B | Mark VIeS Relay Output with Coil Sensing – TMR Safety

    • Model: IS410TRLYS1B
    • Alt. P/N: IS400TRLYS1BJJ (legacy revision)
    • Series: GE Speedtronic Mark VIeS (Safety System)
    • Type: Relay Output Terminal Board (TRLY)
    • Channels: 8× Form-C (SPDT) safety relays
    • Redundancy: TMR (R/S/T) or Simplex
    • Key Feature: Coil sensing / solenoid integrity diagnostics
    • Safety: IEC 61508 SIL 2 capable (with YRLY I/O pack)
    • Use Case: Safety shutdown, turbine trip, ESD output control
Get a Quote
In Stock
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide. Brand:
The listed price is not final; the actual selling price is negotiable based on current market conditions.

Description

Hard-Numbers: Technical Specifications

  • Relay Outputs (8 channels):
    • Type: Form-C (SPDT) mechanical relays
    • Rating: 24/48 VDC, 5A resistive / 2A inductive
    • Coil Voltage: 24 VDC
    • Coil Sensing: Built-in continuity check for each relay coil
    • Isolation: 2500 VDC field-to-backplane
    • Switching Time: <10 ms operate / <5 ms release
  • Connectors:
    • TMR: 3× DC-37 (R/S/T) for I/O pack interface
    • Field: Screw terminals (14–22 AWG)
    • Backplane: PCB edge connector
  • Power: 24 VDC (backplane) | <8 W
  • Operating Temp: -40°C to +70°C
  • Certifications: UL, CE, Class I Div 2, ATEX Zone 2
  • Dimensions: 178 × 144 × 45 mm | Weight: 0.65 kg
  • MTBF: >400,000 hours @ 40°C

Real-World Safety Function

is the trusted safety output interface for Mark VIeS systems. It drives hard-wired emergency trips and shutdowns, with built-in coil sensing to verify every relay actually energizes—critical for SIL2 safety loops.

Core Safety & Performance Benefits:

  • SIL2 Compliance: Certified for turbine overspeed, ESD, and fire/gas trip systems
  • Coil Integrity Check: Detects broken wires, burned coils, or failed relays before a demand
  • TMR Voting: 2-out-of-3 logic prevents false trips from single module failure
  • Surge/EMI Protection: Industrial-grade filtering for power plant environments
  • SOE Logging: Timestamps relay operations for post-event diagnostics

Typical Safety Applications:

  • Gas/steam turbine emergency stop (EST)
  • Compressor anti-surge trip outputs
  • Oil/gas process ESD (Emergency Shutdown)
  • Power plant boiler/machinery safety trips
  • Fire & gas system shutdown relays



Hardware Architecture (Under the Hood)

  1. I/O Pack Interface: Receives TMR trip signals from 3× YRLY I/O modules (R/S/T)
  2. Relay Coil Drive: Parallel drive circuits for 2-out-of-3 voting logic
  3. Coil Sensing: Continuity monitors on every coil – reports open/short faults
  4. Relay Contacts: 8× Form-C outputs to field devices (solenoids, breakers, horns)
  5. Fault Logic: Consolidates coil/contact faults to controller diagnostics
  6. Status LEDs: Power, coil active, fault per channel – quick visual health check

Field Service Pitfalls (Critical Safety Rules)

1. Skipping Coil Sensing Calibration

  • Issue: Disabled diagnostics → undetected coil failure → safety loop fails on demand
  • Fix: Enable coil check in ControlST; verify fault triggers on wire removal

2. Mixed TMR/Simplex Wiring

  • Issue: Crossed R/S/T wires → voting mismatch → false trip or no trip
  • Rule: Label each channel R/S/T; continuity test pre-power; use TMR-compatible relays

3. Over-Loaded Contacts

  • Issue: >5A resistive / >2A inductive → contact welding → stuck-on failure
  • Fix: Use interposing relays for high-current loads; add freewheeling diodes on inductives

4. Poor Panel Grounding

  • Issue: Shared ground with noisy loads → coil chatter / misoperation
  • Rule: Dedicated safety earth (<1Ω); separate from motor/control grounds



Commercial Availability

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
