GE IS220PHRAH1BD | HART Analog I/O Pack for Mark VIe – Field Service Notes

Description

Hard-Numbers: Technical Specifications

• Protocol Support: IONet (100Mbps), HART 5/6/7
• Port Count: 2× RJ45 Ethernet, 1× DC-37 field connector
• Analog Inputs: 12× 4–20mA, 16-bit ADC, HART compliant
• Analog Outputs: 12× 4–20mA, 14-bit DAC, HART compliant
• Isolation Rating: 2500 VAC RMS field-to-backplane
• Power Requirements: 24 VDC ±10%, 9.0W max
• Operating Temperature: -40°C to +70°C
• Input Accuracy: ±0.05% full scale
• Scan/Update Rate: 5 ms per channel
• Output Load: 800Ω max for 4–20mA
• Hazardous Rating: Class I Div 2, Zone 2, ATEX/IECEx
• Dimensions: 147 × 51.5 × 114 mm
• Weight: 0.60 kg

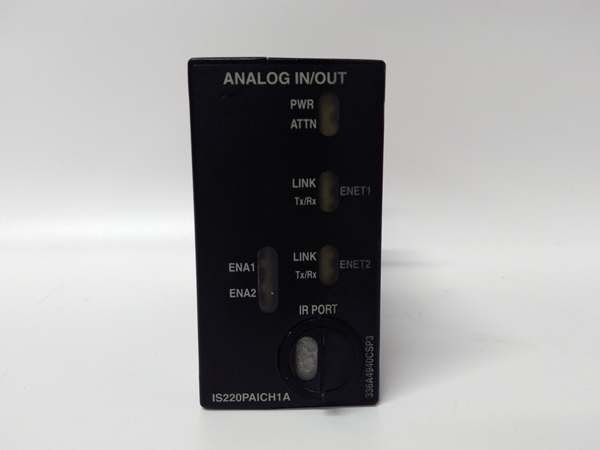

IS220PAICH1A

The Real-World Problem It Solves

Extreme ambient temperatures in turbine enclosures shut down standard analog modules. Separate AI, AO, and HART components create signal noise and cabinet clutter.Where you’ll typically find it:

• Gas turbine compressor inlet temperature/flow HART loops
• Steam turbine control valve positioning in desert/offshore sites
• Industrial power generation turbine anti-surge analog I/O

Bottom line: delivers stable HART I/O in -40°C to +70°C environments and eliminates ground loops in high-density turbine cabinets.

Hardware Architecture & Under-the-Hood Logic

uses a ruggedized 32-bit RISC processor with 16MB SDRAM / 32MB Flash. Full galvanic isolation separates field signals from backplane electronics.

1. Field 4–20mA signals terminate at the DC-37 connector.
2. Signals cross 2500V optical isolation barriers.
3. Inputs filtered and digitized by 16-bit ADCs at 5ms intervals.
4. On-board processor decodes HART telemetry and runs diagnostics.
5. Data transmits over redundant IONet to Mark VIe controller.
6. Output commands drive 14-bit DACs with short-circuit protection.
7. Front-panel LEDs indicate power, fault, network, and HART status.

Field Service Pitfalls: What Rookies Get Wrong

Unshielded Cable in High-EMI TraysRookies run analog wires alongside 480V power cables. EMI induces noise that drifts readings beyond tolerance.

• Field Rule: Use twisted-pair, foil-shielded cable. Ground shield only at the cabinet end.

Under-Sized Power SupplyTechs use 24V/0.5A supplies. Voltage drop under full load causes unstable outputs and HART dropouts.

• Quick Fix: Install 24V/2A supply. Verify 24.0 VDC minimum at module terminals under full load.

Incorrect HART TerminationRookies skip 250Ω resistors or use 5% tolerance parts. This breaks HART communication and locks transmitter access.

• Field Rule: Install 250Ω ±1% resistors on all analog input channels.

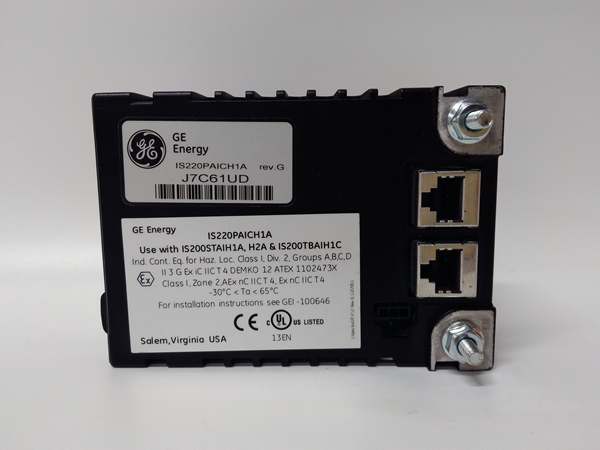

IS220PAICH1A

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
