Description
Hard-Numbers: Technical Specifications
- Input Voltage: 90-264V AC Wide Range or 125V DC Nominal (Auto-sensing depending on specific plant configuration).
- Output Voltage: 24V DC Regulated (Primary output for control electronics) and 5V DC (For internal logic and communication buses).
- Rated Output Current: Up to 10A (Continuous, with overload protection).
- Functional Revision: 1 (First Hardware Revision) (Foundational hardware build incorporating standard EMI/ESD suppression and transient voltage suppression (TVS) diodes).
- Configuration Suffix: ACC (Denotes a unique factory hardware baseline and specific firmware image. The “ACC” suffix typically indicates enhanced power quality algorithms, specific harmonic filtering capabilities, or customized protection trip points tailored for alternative energy or hydrogen applications).
- Operating Temperature: -40°C to +70°C (Designed for extreme environments, from freezing cold hydrogen skids to hot compressor stations).
- Protection Features: Overvoltage, Undervoltage, Short-Circuit, Reverse Polarity, and Transient Suppression (IEEE C62.41 compliance).
- Efficiency: >92% (High efficiency to minimize heat generation in enclosed panels).
- Mounting: DIN Rail or Panel Mount (Robust industrial form factor).

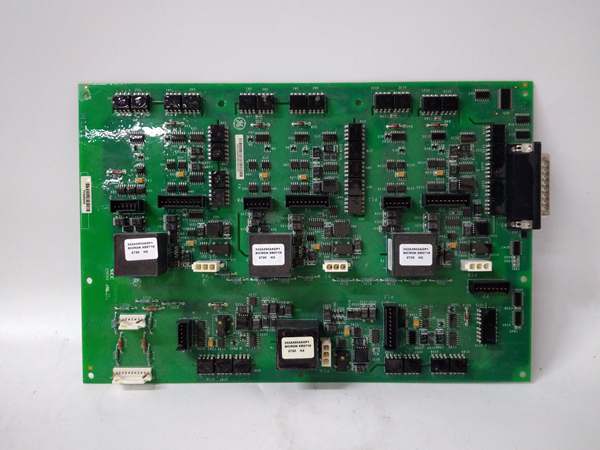

GE IS210AEDBH4A
The Real-World Problem It Solves
Imagine you are the lead instrumentation engineer at a cutting-edge green hydrogen production facility. The plant uses massive electrolyzer stacks to split water, powered by renewable energy. The challenge is that the nearby 50MW solar farm feeds into the grid with high-frequency switching noise, and every time a cloud passes over the solar panels, the rapid fluctuations cause the Variable Frequency Drives (VFDs) controlling the hydrogen compressors to fault and shut down. Each unexpected shutdown costs hours of production time and stresses the mechanical seals of the compressors.
The elegant solution is to retrofit the compressor control panels with the modules. Unlike standard power supplies that merely convert voltage, the “ACC” firmware baseline transforms this module into an Active Power Conditioner. It utilizes advanced DSP algorithms to sample the incoming power line 20,000 times per second, detecting and neutralizing voltage sags, harmonic distortion, and high-frequency transients before they reach the Mark VIe controller or the VFDs.
Following the retrofit, a sudden dip in solar output triggers a minor voltage sag in the plant. The instantly compensates, drawing energy from its internal capacitive reservoir and injecting clean 24V DC power to the controls. The VFDs never fault, the hydrogen compressors continue running smoothly, and the facility maintains 100% uptime.
Where you’ll typically find it:
- Green Hydrogen Facilities: Protecting electrolyzer controls and hydrogen compressor VFDs from the unstable power grids typical of renewable energy microgrids.
- Offshore Wind Platforms: Conditioning power in environments where voltage fluctuations and harmonic distortion from large drive systems are constant challenges.
- LNG Plants: Providing ultra-reliable, clean power to Mark VIe systems controlling cryogenic pumps and gas turbines.
It acts as a highly specialized, intelligent power shield, ensuring that modern renewable energy assets and sensitive turbine controls are completely immune to the power quality fluctuations inherent in today’s dynamic electrical grids.
Hardware Architecture & Under-the-Hood Logic
In the GE AE series ecosystem, the “IS210AEPSG” is fundamentally a power interface board engineered for environments where power quality cannot be taken for granted. The “1ACC” suffix dictates the module’s specific filtering parameters and compatibility within a Mark VIe rack.
- Advanced Transient Suppression & Harmonic Filtering: The core logic of the “ACC” firmware is its ability to identify and mitigate “dirty power.” The module uses high-speed analog-to-digital converters (ADCs) to monitor the incoming AC/DC lines. If a voltage spike or harmonic distortion is detected, the DSP instantly adjusts the pulse-width modulation (PWM) of the internal DC-DC converters to filter out the noise, acting like a microscopic, ultra-fast Uninterruptible Power Supply (UPS) for the control system.
- Seamless Communication & Health Reporting: The module doesn’t operate in a vacuum. It continuously monitors its own internal temperature, output voltage ripple, and load current. This health data is transmitted via the GE Serial Peripheral Interface (SPI) or IONet to the main Mark VIe controller. If the module detects that its internal capacitors are degrading or that it is operating near its thermal limit, it proactively sends an alarm to the control room, allowing maintenance to replace the unit before a failure occurs.
- Application-Specific “ACC” Configuration: The “1” denotes the foundational hardware revision, which includes robust TVS diodes and improved thermal management. The “ACC” suffix, however, is the key differentiator. It points to a specific firmware load optimized for alternative energies—featuring modified control loops that prioritize transient response and harmonic isolation over standard voltage regulation.
GE IS210AEDBH4A
Field Service Pitfalls: What Rookies Get Wrong
The “Mysterious” VFD Tripping Epidemic
A maintenance team at a natural gas compressor station is plagued by a mysterious epidemic of VFD trips and burnt-out 24V DC power supplies. The station is located next to a large recycling plant, and every time the recycling plant’s massive shredders kick on, the voltage in the compressor station dips. The technicians replace the tripping VFDs and install standard industrial power supplies, but the problem persists. Frustrated, they open a support ticket with GE.
A GE field engineer arrives and immediately notices that the compressor panels are equipped with standard IS210AEPSG1A modules, not the specified units. The engineer explains that while the “1A” modules are excellent standard power supplies, they lack the high-speed transient suppression and harmonic filtering firmware of the “1ACC” units. The voltage dips from the recycling plant are causing microsecond-long power interruptions that the “1A” modules pass straight through to the VFDs, causing them to trip.
The technician swaps the “1A” modules for the correct “1ACC” units. The next time the recycling plant starts its shredders, the compressor VFDs don’t even blink.
- The Mistake: Purchasing agents and junior technicians often view power supplies as commodities. They saw “IS210AEPSG” on the bill of materials, found a cheaper “1A” variant in a surplus yard, and didn’t realize that the “ACC” suffix represented a highly specialized power conditioning firmware critical to the application’s survival in a noisy electrical environment.
- Field Rule: In industrial plants with heavy rotating machinery, VFDs, or renewable energy sources, never substitute a power supply module with a generic baseline firmware. The “1ACC” suffix indicates that the module contains application-specific filtering algorithms designed to protect your sensitive controls from dying prematurely. Always match the full part number, including the firmware suffix, when replacing power supplies in Mark VIe panels.
