Description
Product Introduction
The is a specialized I/O pack within the Mark VIe turbine control system, designed to handle Proportional-Integral-Derivative (PID) control loops directly on the module. Unlike standard I/O that passes data to the main controller, this board features an onboard processor to execute PID algorithms locally.
This architecture significantly reduces latency for fast-acting auxiliary loops (like fuel gas pressure, lube oil temp, or feedwater pumps) and offloads computational demand from the primary UCSB/UCSC controller. The “G1ABA” revision is typically DIN-rail mountable, accepts 8 configurable analog inputs (4-20mA or 0-10V), provides 4 isolated analog outputs, and includes 4 discrete I/O points for interlocks. It communicates with the controller via IONet/Ethernet .

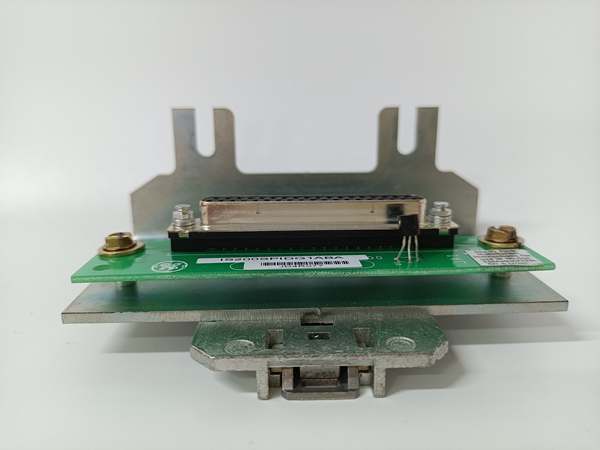

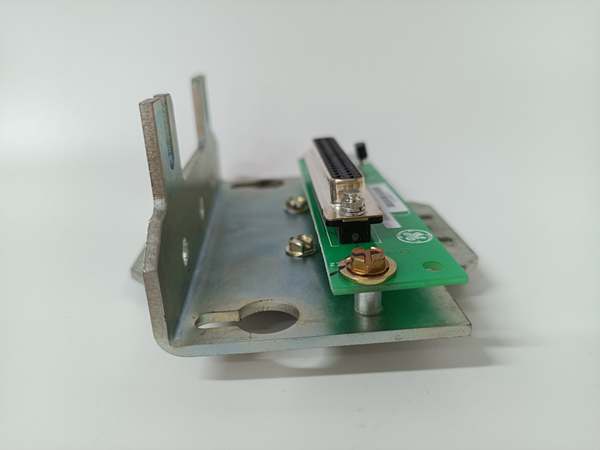

IS200SPIDG1ABA
Key Technical Specifications
- System Role: SPID (PID Control & Analog I/O)
- Architecture: Simplex (Single Unit, non-redundant by default)
- Analog Inputs (AI): 8 Channels (Configurable: 4-20mA, 0-10V, ±10V)
- Analog Outputs (AO): 4 Channels (4-20mA, Isolated)
- Discrete I/O: 4 Channels (24 Vdc, Configurable In/Out)
- PID Capability: Up to 4 independent loops (Executed onboard)
- Resolution: 16-Bit A/D and D/A Conversion
- Update Rate: ~10 ms (Typical PID scan)
- Logic Power: 24 Vdc / 28 Vdc (Self-powered or Bus)
- Isolation: 500 V AC (Channel-to-Channel/Backplane)
- Mounting: DIN Rail (TS-35) or Panel Mount
- Temp Range: -30 °C to +65 °C (Operational)
- Diagnostics: Wire-break detect, Range check, PID Saturation Alarm
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Match serial to manifest. Inspect the pluggable terminal blocks for cracked levers or corroded screw heads (common in humid plants). Check RJ45/IONet ports for dust caps.
- Loop Sim Test: Rig with a 24 Vdc supply and current calibrator. Force a 4-20mA ramp on AI Ch1 and configure a simple P-only loop driving AO Ch1. We scope the output response time; it must stabilize within 10ms of the input change without hunting.
- Electrical Parameter Test: Back-probe the 24V input with a Fluke 115. Verify input protection (reverse polarity should trigger diag, not kill the board). Ripple on the 24V bus shouldn’t exceed 50mV p-p under load.
- Config Verification: Check the DIP switches or default jumpers (if any). Although mostly soft-configured via ToolboxST, hardware strapping for “Sink/Source” (PNP/NPN) on Discrete I/O must match the field devices.
- Final QC & Packaging: Torque terminal screws (0.5 Nm) to check clamp tension. Bag in anti-static foam. Label “QC Passed – PID Loopback OK” with the date.
Replacement Pitfall Guide
❗ PID Tuning Mismatch: The stores P, I, D gain parameters in its local memory/config download. Swapping hardware withoutdownloading the site’s .cfgfile results in “Default Gains” (often 0), causing the control loop to go wide open (e.g., fuel valve slams shut or full open). Always download the project file after replacement.
❗ Sourcing vs. Sinking (Discrete I/O): The 4 DI/DO channels are configurable but hardware-dependent on wiring. If the old unit was wired for PNP (Source) and you land NPN (Sink) wires on the new “ABA” unit without changing jumpers/logic, the interlocks will read “0” (Inactive) permanently.
❗ DIN Rail Grounding: This is often DIN-rail mounted. If the rail is painted or ungrounded, the shield drain for the analog cables has nowhere to go, inviting 60Hz hum that corrupts the 4-20mA signal (causing valve flutter). Scrape paint under the DIN clip for a solid PE bond.
❗ “G1” vs “G2” Form Factor: Ensure this is the G1 (Simplex Pack). Do not try to force this into a G2 (Rack Slot) backplane; the connector pinouts (50-pin vs Ethernet) are completely different.
❗ ESD to Ports: The RJ45/IONet pins are sensitive. Discharge to the cabinet frame/DIN rail before patching cables—static in dry turbine halls (common in northern China winters) can freeze the onboard PID processor.
Keep these in mind and you’ll cut 90% of rework time.

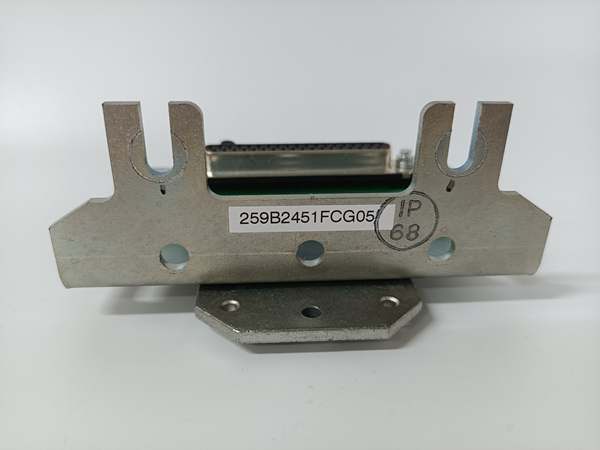

IS200SPIDG1ABA
Compatibility Matrix & Benchmarks
- → GE IS200SPIDG1A: Direct— “ABA” is a sub-revision; functionally compatible, but match coating grades (A/B) if in corrosive areas.
- → GE Mark VIe Controller (UCSB/UCSC): Direct— Connects via IONet (Ethernet) for setpoint/downloads.
- → Standard Analog Input (e.g., IS220PAICH1A): Incompatible— Standard AI packs lack the onboard PID execution engine; loops would have to move to the main CPU.
- PID Execution: ~10 ms (Onboard, offloads Main CPU)
- Analog Accuracy: ±0.1% Full Scale (16-Bit)
- Isolation: 500 V AC (Field to Logic Bus)
