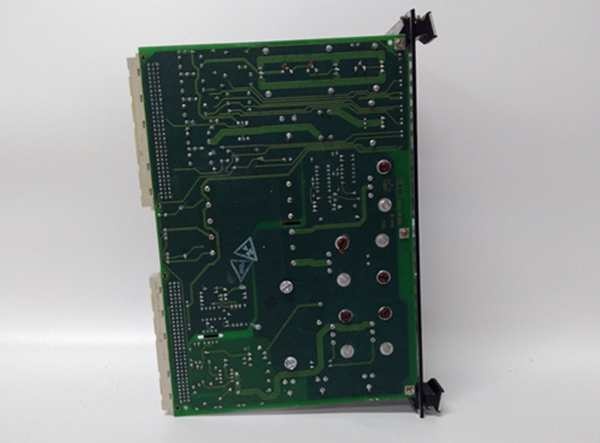

Description
Hard-Numbers: Technical Specifications
- Wetting Supply Voltage: 70V DC (Range: 63-84V DC)
- Relay Outputs: 4x General-Purpose Form-C Relays (Simplex or Redundant controlled)
- Trip Outputs: 2x Dedicated Trip Contact Outputs (drives customer lockout)
- Contact Inputs: 52G & 86G Breaker Inputs, 6x Auxiliary Inputs
- Operating Temperature: -30°C to +65°C
- Board Dimensions: 330mm (H) x 178mm (W)
- Isolation Rating: Resistor-isolated input monitoring
- Backplane Distribution: Fanned to M1, M2, and C controllers
The Real-World Problem It Solves
You’re in a refinery turbine outage, and the generator keeps tripping on “False 86G Lockout.” The 24VDC signals from the 52G breaker are bouncing because hydrogen sulfide in the air has oxidized the silver contacts. You need an interface that punches through that grime with brute force. This ECTX board eliminates that nightmare. It delivers a 70VDC wetting voltage to all contact inputs, burning through corrosion and ensuring crisp, deterministic switching even in the harshest chemical plant environments.
Where you’ll typically find it:
- EX2100 Exciter Cabinets: Managing 52G breaker contacts, 86G lockout relays, and auxiliary shutdown interlocks.
- Refinery and Chemical Plant Turbine Skids: Operating in Class 1 Div 2 zones where atmospheric corrosion destroys standard 24VDC relays within months.
- Customized Power Generation Units: Where off-the-shelf I/O boards don’t meet specific plant DCS voting logic requirements.
It turns a noisy, unreliable contact interface into a deterministic, high-voltage-controlled safety loop.
Hardware Architecture & Under-the-Hood Logic
This board doesn’t have a microprocessor. It is a passive, hardened signal interface designed to survive the brutal electrical and chemical environment of a turbine deck. It acts as the heavy-duty bouncer between the delicate EMIO processor and the field-wired breakers. The “ZZ” suffix indicates specific jumper configurations and trace routing tailored for a particular facility’s excitation logic.
- 70VDC Wetting Power Distribution: The board generates a rock-solid 70VDC bias. This high-voltage potential is applied across all auxiliary contact inputs and breaker status lines. When a contact closes, the 70VDC arcs momentarily, burning off any surface oxidation or sulfide films to ensure a solid electrical connection.
- Resistor-Isolated Input Monitoring: Each contact input line passes through a dedicated series resistor. This protects the downstream EMIO control circuitry from voltage surges or accidental short circuits originating from the field wiring.
- Signal Fan-Out Logic: All monitored contact statuses are replicated and distributed across the backplane. This ensures the M1, M2, and C controllers all receive identical, synchronized data on the turbine’s breaker and lockout status.
- EMIO-Controlled Relay Drive: The four Form-C relays and two trip outputs are triggered directly by the EMIO processor. The board acts as the final muscle, physically opening or closing the lockout relays that safeguard the multi-million-dollar generator.
Field Service Pitfalls: What Rookies Get Wrong
Swapping a “ZZ” Project Board for a Standard Spare
You pull a smoked IS200ECTXG1AZZ from a refinery turbine and pop in a generic IS200ECTXG1A from the warehouse. The green LEDs come on, but the turbine refuses to synchronize. The EMIO controller throws a “Configuration Mismatch” alarm. The standard G1A lacks the specific jumper settings and burden resistor values required for this refinery’s unique 52G contact logic.
- Field Rule: Always photograph the resistor and jumper configuration (JP1-JP4) of the failed board before removal. If the P/N ends in “ZZ”, you mustsource that exact custom revision. A standard spare will not have the correct I/O mapping for the site-specific application.
Letting the 70VDC Wetting Lugs Loosen
A mechanic performs a routine cleaning and accidentally bumps the 70VDC input lugs on the ECTX. He doesn’t retorque them. A month later, the turbine trips on “False 86G Lockout” because the loose lug created a high-resistance connection, dropping the wetting voltage below the threshold needed to sense the closed breaker contact.
- Field Rule: Torque all 70VDC and relay output lugs to 15 lb-in using a calibrated torque screwdriver. Mark the lug heads with a paint pen after tightening to visually verify they haven’t backed out during high-vibration events. Never skip the torque check after any cabinet intrusion.
Mixing 24VDC and 70VDC Wiring in the Same Terminal Strip
A junior engineer lands a standard 24VDC proximity switch onto the same terminal strip as a 70VDC breaker contact input. A stray strand from the 24VDC wire touches the 70VDC bus bar. The resulting arc flash melts the terminal block and destroys the ECTX’s input conditioning circuit.
- Field Rule: Physically segregate your voltage classes. Keep 70VDC wetting circuits on dedicated terminal strips. Label everything with bright zip-tie tags. Never let 24VDC and 70VDC wiring occupy the same physical block unless a factory-installed barrier divider is present.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
