Description
Hard-Numbers: Technical Specifications
- Processor Speed: 1.0 GHz Dual-Core
- RAM: 1 GB DDR2 SDRAM
- Flash Storage: 4 GB Onboard Flash
- Ethernet Ports: 2x 10/100/1000Base-TX (Gigabit RJ45)
- Backplane Interface: IONet (High-Speed Fiber/Electrical Hybrid)
- Operating Temperature: -20°C to +60°C
- Power Consumption: Approx. 25 Watts
- Watchdog Timer: Configurable 100ms to 10s intervals
- Safety Certification: SIL 3 Compliant

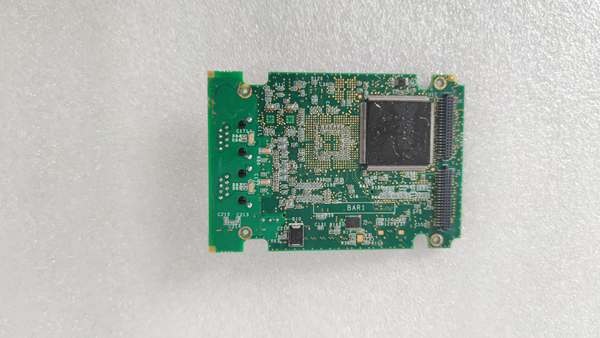

IS200BPPBH2B
The Real-World Problem It Solves
You are staring down a 9HA-class gas turbine running flat-out during a heatwave. Your old BPB processor is maxing out at 90% utilization trying to crunch the anti-surge logic for six compressors, and the I/O scan rate is starting to slip. You need a processor that clears the backlog instantly, manages thousands of I/O points without lagging, and handles the intense heat of a packed 21-slot rack. This FB revision solves that bottleneck. It crams a 1.0 GHz dual-core engine into a single slot, processing complex logic in real-time and offloading gigabytes of event data upstream without stuttering.
Where you’ll typically find it:
- Large Combined-Cycle and Nuclear Power Plants: Executing primary protection and load-sharing sequences for multi-unit turbine trains.
- Offshore Platforms & Refineries: Managing dynamic gas lift and emergency shutdown logic in corrosive, high-humidity environments.
- Pipeline Compressor Stations: Processing ultra-low-latency anti-surge control algorithms for high-horsepower centrifugal compressors.
It turns a lagging, overheated control system into a deterministic, high-speed processing powerhouse.
Hardware Architecture & Under-the-Hood Logic
This is not a passive backplane card; it is the autonomous brain of the Mark VIe operation. It features its own independent operating system and runs autonomously until the backplane calls upon it. The “FB” suffix denotes specific manufacturing tolerances and lead-free component soldering for enhanced thermal stability.
- IONet Master Controller: The BPB sits at the top of the IONet hierarchy. It polls all downstream I/O packs (like TBCI or TBAI) and aggregates their data into a unified process image at millisecond intervals.
- Dual-Core Processing Pipeline: Core 1 is dedicated to the deterministic execution of your ToolboxST control sequences (PID loops, sequencing, alarm logic). Core 2 handles background tasks, memory management, and communication with the HMI or plant DCS.
- Hardware Watchdog & Redundancy Switchover: The board monitors its own heartbeat via a hardware timer. If the CPU hangs, the watchdog forces a reset or triggers a seamless handoff to the redundant BPB unit in under 50 milliseconds.
- Gigabit Ethernet Backhaul: Processed data and high-speed event logs are shoved out of the dual Gigabit ports to the plant network, completely offloading the IONet bandwidth for critical control traffic.
IS200BPPBH2B
Field Service Pitfalls: What Rookies Get Wrong
Blocking the CPU Heatsink Exhaust Plenum
A rookie installs the BPB and immediately stacks a high-wattage analog output card directly above it in the next slot. The BPB’s 1.0 GHz processor pulls 25 watts. Within three months of summer operations, the trapped heat causes the CPU to thermal throttle, leading to random task overruns and a forced turbine trip on “Control Loop Timing Fault.”
- Field Rule: Maintain a minimum 1-slot vertical clearance above and below the BPB. If you must pack the rack tightly, install a dedicated 24VDC muffin fan directly in front of the BPB’s heatsink fins. Confirm airflow direction (intake vs. exhaust) matches the factory orientation.
Swapping H2B for H2BEFB Without Checking the Bootloader
You pull a smoking IS200BPPBH2B and slam in a new IS200BPPBH2BEFB because “it’s newer and faster.” The green LED lights up, but the HMI screams “Firmware Mismatch” and the turbine refuses to roll. The FB hardware ships with a newer bootloader/firmware baseline that clashes with the legacy config files stored on the old flash drive.
- Quick Fix: Before a cold swap, insert a USB drive with the latest compatible firmware package into the front port of the new BPB. Allow the board to auto-flash its baseline before inserting it into the live rack. Never assume the firmware on a new card matches your 5-year-old application.
Attempting Local Repairs on Lead-Free (RoHS 6/6) Boards
A tech notices a cold solder joint on a capacitor near the CPU heatsink and tries to touch it up with a standard 60/40 leaded solder iron. The lead-free solder on the board has a higher melting point. The tech cranks the iron to 400°C, delaminates the PCB trace, and utterly destroys the $8,000 board.
- Field Rule: Never attempt to solder or rework RoHS 6/6 (lead-free) hardware in the field. These boards require specialized lead-free solder paste and precise temperature-controlled reflow ovens. If you spot a physical defect, RMA the board to a certified repair center with a lead-free capable line. You are not equipped to fix it onsite.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
