Description
Hard-Numbers: Technical Specifications
- Analog I/O: 8 analog inputs, 1 analog output
- Encoder Inputs: 1 incremental encoder, 1 absolute encoder
- Discrete I/O: 20 discrete inputs, 1 discrete output
- Relay Outputs: 8 onboard relays + 12 general relays on PCB
- Brake Control: 1 dedicated brake control output
- Communication Ports: 2 RS-485 interfaces
- Surge Protection: 6 metal oxide varistors (MOVs) in single line configuration
- Environmental Protection: Conformal coating for moisture, salt spray, and dust resistance
- Operating Temperature: 0°C to +60°C
- Connectivity: 2 male pin connectors for main processor interface, 17 vertical female pin connectors (2-20 pins)
- Status Indicators: 2 operational LEDs on left edge

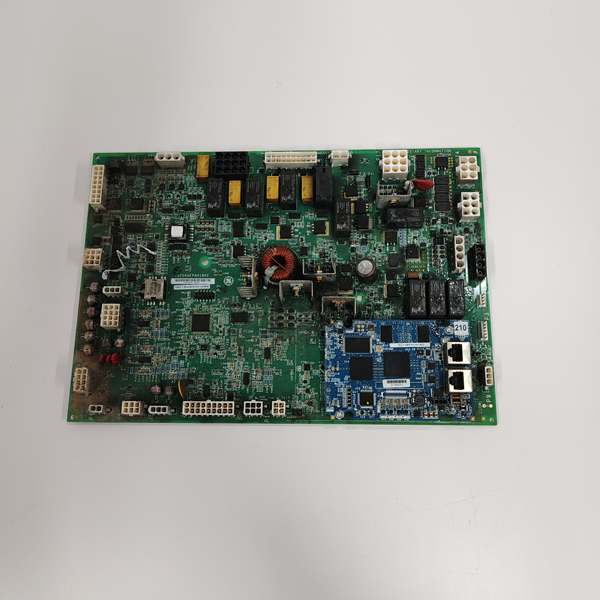

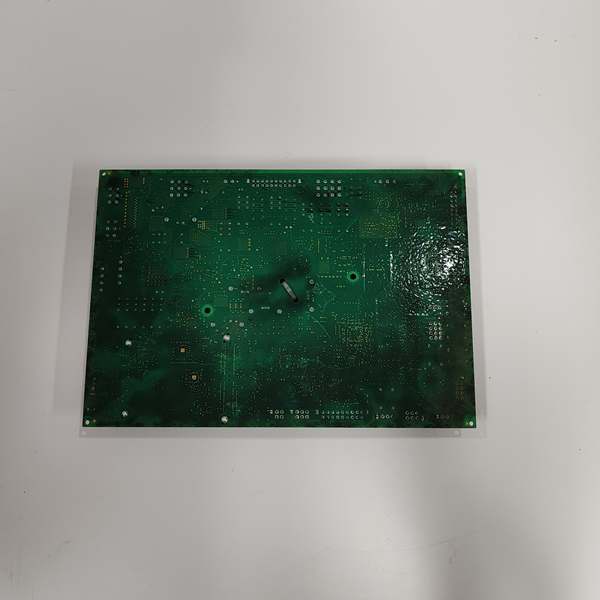

GE IS200AEPAH1AAA
The Real-World Problem It Solves
Wind turbine blades face 80mph winds and frequent lightning strikes, which fry standard control boards and ground millions of dollars of assets. Generic pitch control solutions can’t handle the harsh nacelle environment or integrate with the Mark VIe controller without expensive custom wiring. This specialized board is built for the job, with conformal coating to resist salt fog and 6 MOVs to clamp lightning-induced transients, while centralizing all pitch control signals in one board.
Where you’ll typically find it:
- Offshore Wind Turbine Nacelles: Managing pitch actuators for 3-blade turbines exposed to salt spray and extreme weather
- Onshore Wind Farms: In utility-scale turbines where lightning strikes are a regular risk
- Repowering Projects: Retrofitting older Mark VI wind systems with upgraded pitch control hardware to extend asset life
It eliminates the need for custom wiring harnesses and external surge protectors, reducing installation time by 40% compared to generic solutions.
Hardware Architecture & Under-the-Hood Logic
This isn’t a standard I/O card; it’s a specialized pitch control hub designed to survive the harshest conditions on earth. The AAA revision brings upgraded ICs, tighter tolerance components, and improved conformal coating adherence over the H1A base model.
- Processor Interface: The board connects to the main Mark VIe controller via two robust male pin connectors in the upper left corner, carrying pitch setpoint commands and returning feedback data at high speed.
- Feedback Conditioning: The onboard circuitry filters electrical noise from nearby 500kW pitch motors before passing clean sine/cosine signals from absolute and incremental encoders to the processor. This eliminates false pitch position readings that can cause blade overspeed.
- Actuator Drive Logic: 8 relay outputs and 1 discrete output control hydraulic solenoid valves or electric motor contactors that adjust blade angle. The dedicated brake control output ensures blades feather to a safe position during processor watchdog timeouts.
- Transient Protection: 6 MOVs arranged in a single line clamp voltage spikes from nearby lightning strikes, protecting sensitive logic circuits from damage. The conformal coating prevents moisture ingress that can short active traces during humid weather.
GE IS200AEPAH1AAA
Field Service Pitfalls: What Rookies Get Wrong
Ignoring Conformal Coating Inspection During Maintenance
Rookies skip visual inspection of the conformal coating during annual turbine service. UV exposure and thermal cycling can cause the coating to crack, exposing traces to moisture. This leads to intermittent encoder feedback errors that are nearly impossible to diagnose.
- Field Rule: Use a UV flashlight to inspect the conformal coating annually. Any cracks or peeling require recoating with GE-approved acrylic conformal coating. Never use silicone-based coatings that interfere with the board’s thermal dissipation.
Mismatching Encoder Supply Voltage Jumpers
A rookie wires in a new 24VDC absolute encoder without checking the JP1 supply voltage jumper. The board is configured for 5VDC by default, and the encoder burns out instantly.
- Quick Fix: Locate the JP1 jumper block near the encoder connectors before powering up. Set it to 5V or 24V to match your field device. Always verify with a multimeter before connecting any encoder.
Failing to Reinstall the C-Shaped HW1 Metal Housing
Technicians remove the board for troubleshooting and discard the C-shaped metal housing marked HW1. The housing provides structural support for the fragile pin connectors and acts as a Faraday cage to block EMI from the pitch motor drives.
- Field Rule: Always reinstall the HW1 housing using factory standoff screws. It’s not just a cover; it’s a critical component for EMI shielding and connector protection. Keep it with the board at all times.
