Description
Hard-Numbers: Technical Specifications
- Input Channels: 4 isolated counter inputs (differential or single-ended)
- Counting Frequency: Up to 200 kHz per channel
- Counter Resolution: 32-bit signed counter (±2,147,483,647 counts)
- Input Types: Quadrature A/B, Up/Down, Pulse/Direction, Frequency Measurement
- Input Voltage: 5-24 VDC logic (sink/source compatible)
- Input Impedance: Approximately 3 kΩ
- Isolation: 1500 V RMS between field side and logic side
- Input Filter: Configurable (software selectable)
- Power Consumption: 450 mA from +5VDC backplane; 50 mA from +24VDC backplane
- Data Format: 32-bit signed count value in %I registers; latched count and frequency data in %AI registers
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Humidity: 5–95% non-condensing
- Terminal Type: Removable 40-pin terminal block

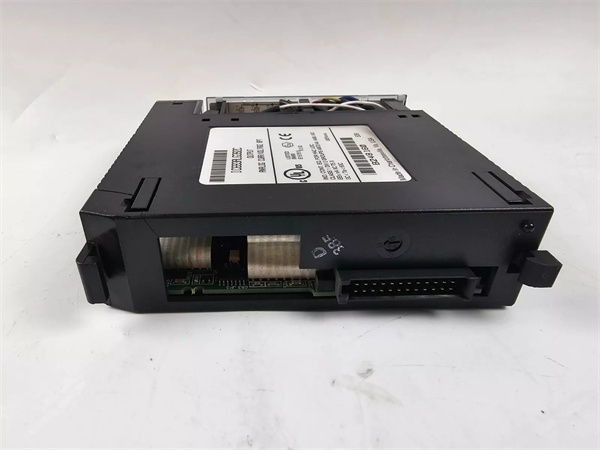

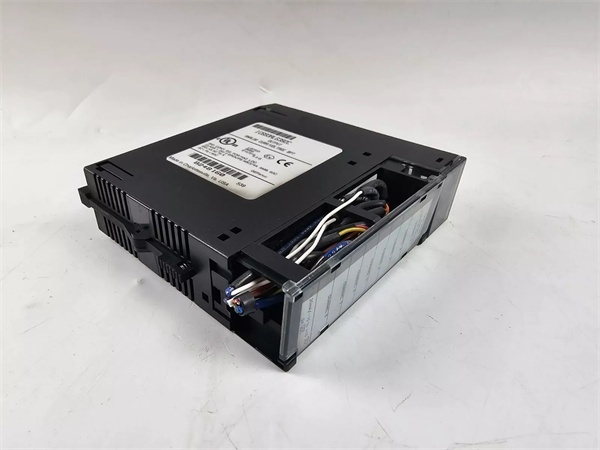

GE IC693ALG392
The Real-World Problem It Solves
Standard PLC digital inputs max out at a few hundred Hz, and even mid-range counter modules top out around 100 kHz. The IC693ALG392C provides four independent 200 kHz counters with quadrature decoder hardware, allowing your Series 90-30 to handle high-resolution encoders and high-speed pulse counting in demanding motion control applications.
Where you’ll typically find it:
- High-speed packaging: Reading position from high-PPR rotary encoders (2000+ PPR) on fillers and labelers
- Precision cutting: Measuring material length from linear encoders on flying shear and cut-to-length machines
- Synchronized motion: Coordinating multi-axis servo systems using encoder feedback for position and velocity synchronization
Bottom line: The IC693ALG392C gives your Series 90-30 four dedicated 200 kHz counter channels for high-resolution encoder interfaces and pulse counting that exceeds the capabilities of standard counter modules.
Hardware Architecture & Under-the-Hood Logic
The IC693ALG392C is a high-speed counter module with four independent 32-bit counter channels. It uses dedicated counter hardware with quadrature decoding logic, not the PLC scan cycle, ensuring accurate pulse counting at speeds up to 200 kHz. The module includes optical isolation and configurable input filtering.
-
Input Conditioning Stage
- Differential or single-ended input buffers accept 5-24 VDC signals
- Configurable input filter (software selectable) rejects bounce and noise
- Input protection clamps transients to ±30V
- High-speed Schmitt trigger conditioning ensures clean digital edges at 200 kHz
-
Counter Hardware
- Four independent 32-bit up/down counters operate independently of PLC scan
- Quadrature decoder (A/B channels) supports 1x, 2x, and 4x resolution modes
- Hardware latching captures count values on command or external trigger
- Frequency measurement mode calculates input frequency up to 200 kHz
-
Counter Modes
- Up/Down mode: counts up on one input, down on another
- Quadrature mode: decodes A/B phase relationship for direction and count
- Pulse/Direction mode: counts pulses on one input, direction on another
- Frequency mode: measures input frequency for speed monitoring
-
Latch & Compare Functions
- Hardware latching captures current count value on external trigger or software command
- Compare registers trigger outputs when count reaches preset values
- Programmable output pulses for position or velocity-based events
- Latched values and frequency data accessible in %AI registers
-
Data Output to CPU
- Real-time count values stored in %I registers (32-bit signed)
- Latched count values and frequency data in %AI registers
- Status bits indicate direction, overflow/underflow, and alarm conditions
- CPU reads data via Series 90-30 backplane bus
GE IC693ALG392
Field Service Pitfalls: What Rookies Get Wrong
Running encoder cables near VFD outputs
Rookies route encoder cables in the same conduit as VFD motor leads. The induced noise causes false counting at 200 kHz, and the high-speed machine overshoots its 终止 position by inches every cycle.
- Field Rule: Keep encoder cables at least 12 inches away from VFD motor leads. Use shielded twisted-pair encoder cable with foil + braid shield. Ground the shield at the encoder end only—never ground both ends. For 200 kHz signals, even small amounts of noise cause false counts.
Mixing quadrature resolution modes
You replace a failed 2000 PPR encoder but don’t verify the quadrature mode in software. The old encoder used 4x mode (8000 counts/rev), the new one uses 1x mode (2000 counts/rev), and the machine now loses 75% of its positioning resolution.
- Field Rule: When replacing an encoder, verify the quadrature resolution setting (1x, 2x, or 4x) in the PLC software matches the encoder specification. A 2000 PPR encoder in 4x mode counts 8000 pulses per revolution—in 1x mode it’s only 2000. The difference at 200 kHz counting speed is massive.
Not compensating for input filter delay
Rookies crank the input filter to maximum to suppress noise. The filter introduces a 1 ms delay, and at 200 kHz counting speed, the module misses hundreds of pulses per second and loses position accuracy.
- Field Rule: Set the input filter to the minimum value that provides reliable counting. Start at 5-10 µs and only increase if you see bounce or false counts. At 200 kHz, even a 50 µs filter costs you 10 pulses—keep it as short as possible.
Ignoring common-mode voltage limits
Rookies install the module with encoder grounds floating 50V above PLC ground. The 1500V isolation handles this, but they add a ground reference at the encoder that drives common-mode current through the input protection network, causing intermittent counts at high speed.
- Field Rule: Measure the ground potential difference between encoder and PLC before installation. If it exceeds 10V, use an isolated encoder power supply or an encoder signal isolator. At 200 kHz, even small common-mode currents cause missed pulses.
Leaving unused channels unconnected
Rookies leave unused counter channels disconnected. The floating inputs pick up electrical noise, causing the counter to drift randomly and triggering false position alarms.
- Field Rule: Short unused channel inputs together at the terminal block. Connect the positive and negative terminals of unused channels to each other to tie them to a defined logic state and prevent floating inputs from counting garbage.
Forgetting to latch counts before reading
Rookies read the moving count value directly from the %I register. The counter is still incrementing during the PLC scan at 200 kHz, and the value changes between read instructions, causing the machine to hunt or oscillate around the setpoint.
- Field Rule: Use the hardware latch function to capture a stable count value. Trigger the latch via software command or external input, then read the latched value from %AI registers. The latched value won’t change until you latch again—critical at 200 kHz speeds.
Powering encoders from non-isolated supplies
Rookies power the encoder from the same 24V supply that feeds VFDs and motors. The VFD switching noise couples into the encoder power rails, causing jittery pulses and missed counts at 200 kHz.
- Field Rule: Use an isolated DC-DC converter or a dedicated linear power supply for encoders. Keep encoder power clean and separate from motor drive power. At 200 kHz, even minor power rail noise causes missed counts. Add a pi-filter (inductor-capacitor-inductor) at the encoder power input.
Not verifying direction before commissioning
Rookies wire an encoder and power up the high-speed machine without checking direction. The machine drives backward at 200 kHz counting speed when commanded forward, crashing into hard 终止s and damaging equipment in milliseconds.
- Field Rule: After wiring, jog the axis slowly in the forward direction and verify the counter is incrementing (not decrementing). If backward, swap the A and B channels or change the direction bit in software—never swap the motor leads to compensate. At 200 kHz, wrong direction causes catastrophic damage.
